Home >> Lexus >> 2000 >> ES 300 V6-3.0L (1MZ-FE) >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Application and ID

Automatic Transmission/Transaxle: Application and ID

STANDARD BOLT

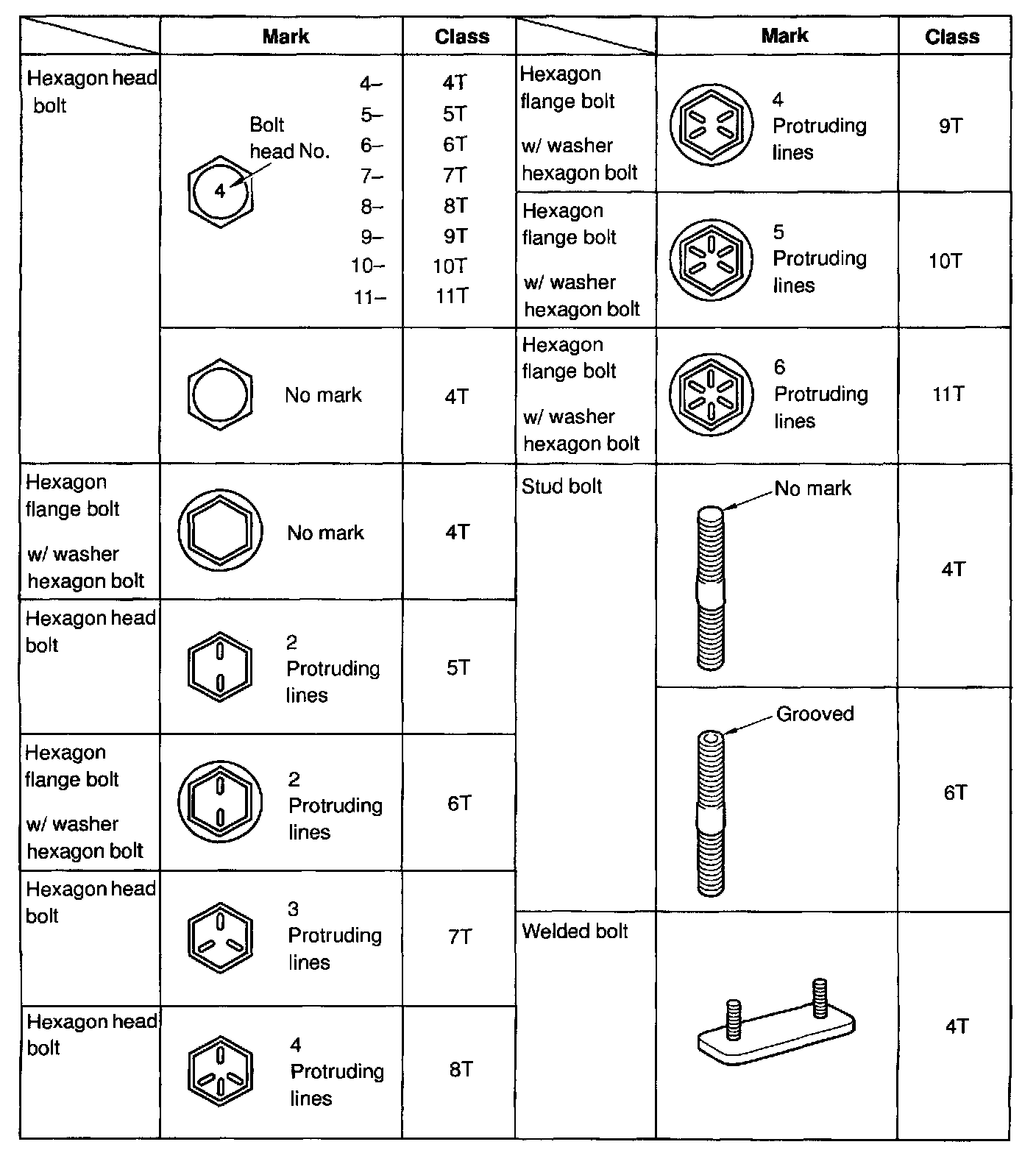

How To Determine Bolt Strength

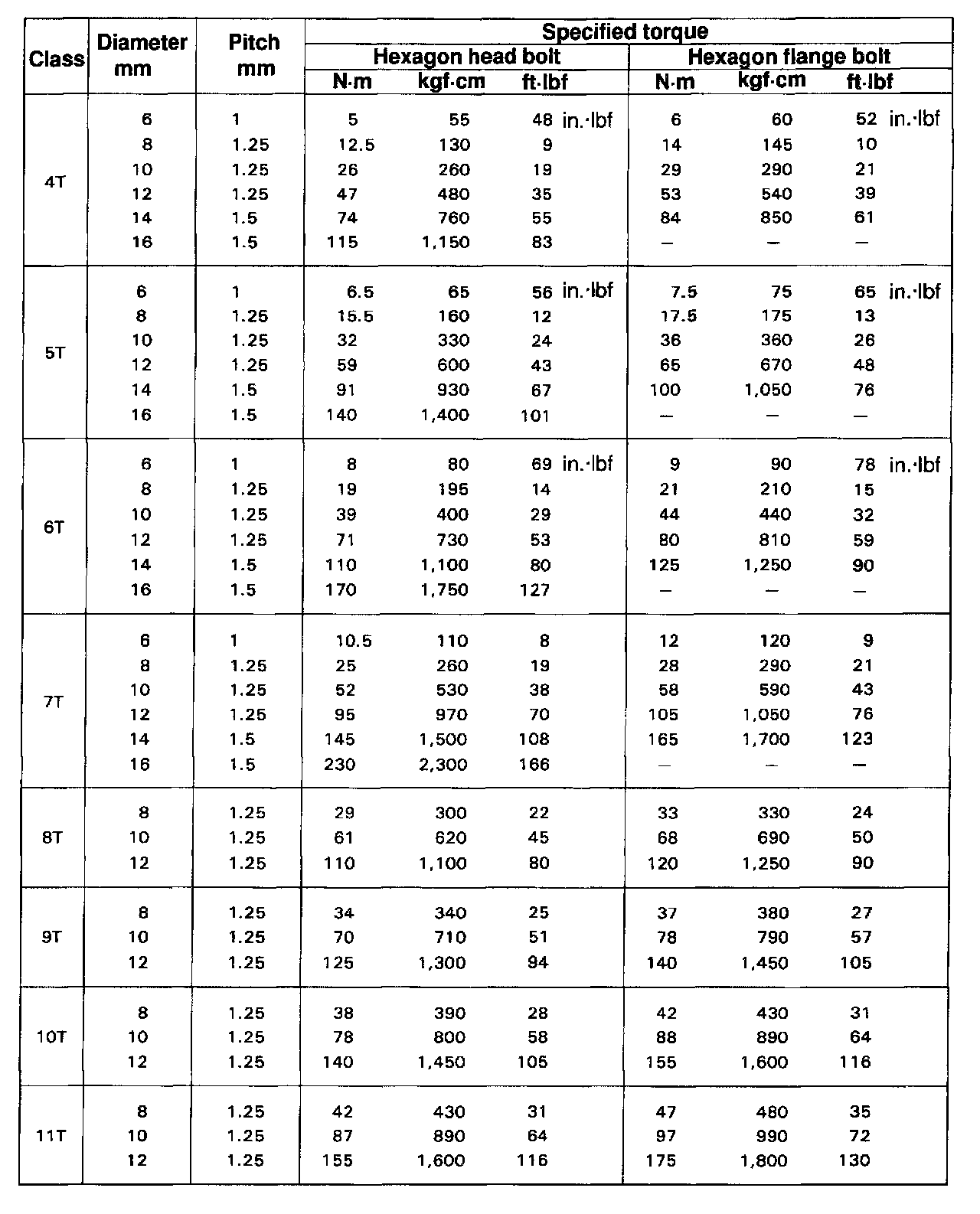

Specified Torque For Standard Bolts
