Front

REMOVAL
1. REMOVE FRONT WHEEL
Torque: 103 Nm (1,050 kgf-cm, 76 ft. lbs.)

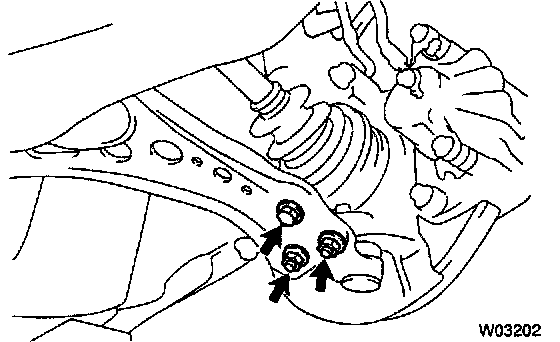

2. DISCONNECT LOWER SUSPENSION ARM FROM LOWER BALL JOINT
Remove the 2 nuts and bolt.
Torque: 127 Nm (1,300 kgf cm, 94 ft. lbs.)
3. REMOVE LOWER SUSPENSION ARM

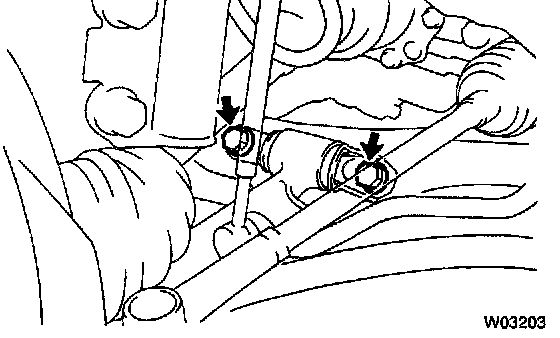

a. Remove the 2 bolts on the front side of the lower suspension arm.
Torque: 206 Nm (2,100 kgf-cm, 152 ft. lbs.)

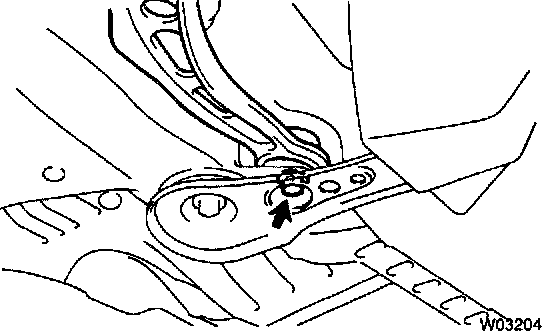

b. Remove the bolt and nut on the rear side of the lower suspension arm.
Torque: 206 Nm (2,100 kgf-cm, 152 ft. lbs.)
c. Remove the lower suspension arm.
d. Remove the lower suspension arm bushing stopper from the lower suspension arm shaft.


INSTALLATION
Installation is in the reverse order of removal.
AFTER INSTALLATION, CHECK FRONT WHEEL ALIGNMENT
