Removal and Installation

Starter:

Magnetic Switch Assembly:

REMOVAL

1. REMOVE BATTERY AND TRAY
2. (w/ CRUISE CONTROL SYSTEM) REMOVE CRUISE CONTROL ACTUATOR
a. Disconnect the actuator connector and clamp.
b. Remove the 3 bolts, and disconnect the actuator with the bracket.

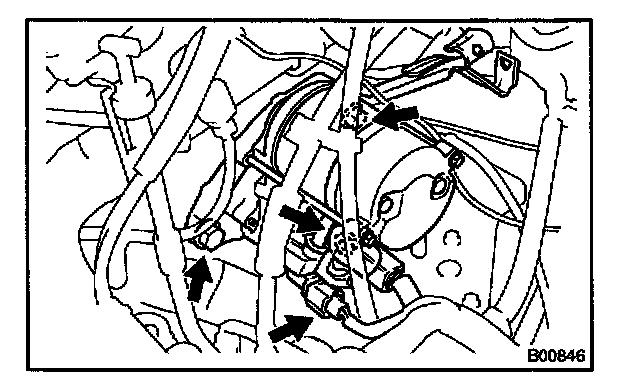

3. REMOVE STARTER
a. Disconnect the A/T shift control cable.
b. Disconnect the engine wire.
c. Disconnect the starter connector.
d. Remove the nut, and disconnect the starter wire.
e. Remove the 2 bolts, A/T shift control cable clamp and starter.

Torque: 37 Nm (380 kg.cm, 27 ft.lb)

INSTALLATION
Installation is in the reverse order of removal.
