Cabin Temperature Sensor / Switch: Service and Repair

REMOVAL




REMOVE ROOM TEMPERATURE. SENSOR
a. Remove the No.1 lower panel set screws.
b. Disconnect the aspirator hose.
c. Disconnect the connector.

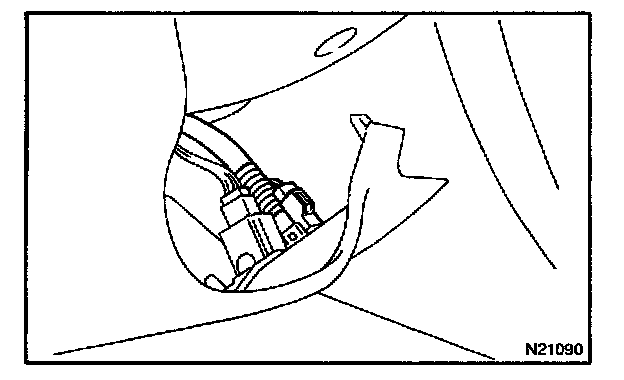

d. Release the 2 claws and pull out the sensor from No.1 lower panel.

INSTALLATION
Installation is in the reverse order of removal.
