Fuel Pump Relay: Testing and Inspection

INSPECTION




1. REMOVE RELAY BOX COVER

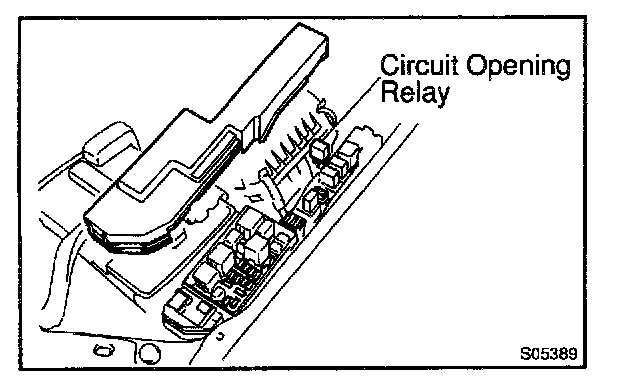

2. REMOVE CIRCUIT OPENING RELAY (Marking: CIR OPN)

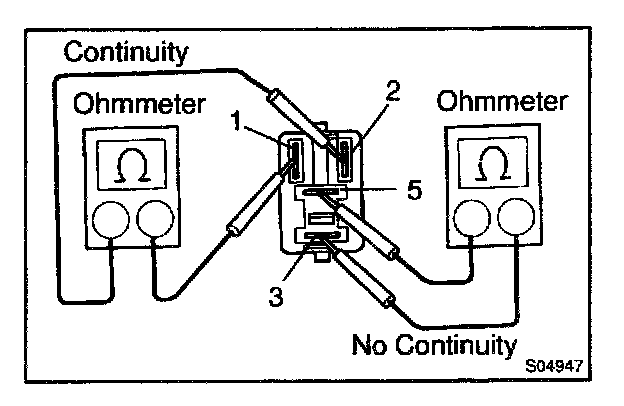

3. INSPECT CIRCUIT OPENING RELAY CONTINUITY
a. Using an ohmmeter, check that there is continuity between terminals 1 and 2.
If there is no continuity, replace the relay.
b. Check that there is no continuity between terminals 3 and 5.
If there is continuity, replace the relay.




4. INSPECT CIRCUIT OPENING RELAY OPERATION
a. Apply battery voltage across terminals 1 and 2.
b. Using an ohmmeter, check that there is continuity between terminals 3 and 5.
It there is no continuity, replace the relay.

5. REINSTALL CIRCUIT OPENING RELAY
6. REINSTALL RELAY BOX COVER
