Power Door Lock Relay: Testing and Inspection

Key-off power window signal: INSPECT INTEGRATION RELAY OPERATION

HINT: When the relay circuit is as specified, inspect the key-off power window signal.

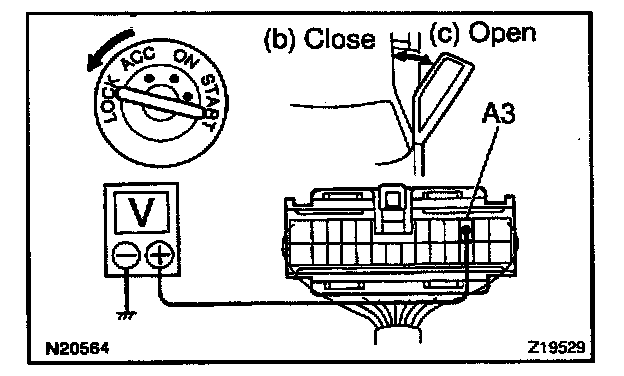

a. Connect the positive (+) lead from the voltmeter to terminal A3 and the negative (-) lead to body ground.
b. Close the door with ignition switch turned to LOCK or ACC, and check that the meter needle indicates battery positive voltage.
c. Open the door and check that the meter needle indicates 0 V.

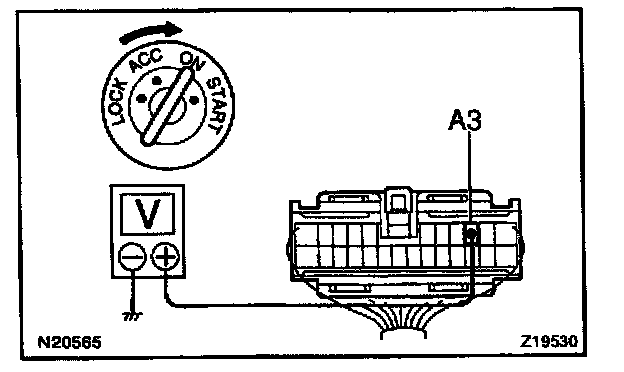

d. Turn the ignition switch ON and check that the meter needle indicates battery positive voltage again.
If operation is not as specified, replace the relay.

INSPECT INTEGRATION RELAY CIRCUIT
Inspect the switch adjustment procedures.
1. Connect the power window master switch to the wire harness and turn the ignition switch ON.
2. Fully open the door glass manually.
3. Using a round bar that is 2 sq.mm, press the reset switch.

CAUTION: When using an iron wire, take care not to use a wire with a sharp edge.

4. With the reset switch pressed, fully open the door glass with the master switch.

CAUTION:
- Operate manually.
- While opening the door glass, if any vibration is felt on the pressed reset switch, pressing force is weak, so repeat step (2).

5. Remove the bar and fully open the door glass.
6. Check that the door glass can be opened and closed fully by AUTO operation.
7. Checklist for power window malfunction.

Door lock signal: INSPECT INTEGRATION RELAY OPERATION

HINT: When the relay circuit is as specified, inspect the door lock signal.




a. Connect the positive (+) lead from the voltmeter to terminal A12 and the negative (-) lead to terminal A25.
b. Set the door lock control switch to UNLOCK and check that the voltage rises from 0 V to battery positive voltage for approximately 0.2 seconds.




c. Reverse the polarity of the voltmeter leads.
d. Set the door lock control switch to LOCK and check that the voltage rises from 0 V to battery positive voltage for approximately 0.2 seconds.
If operation is not as specified, replace the relay.

INSPECT INTEGRATION RELAY CIRCUIT
