Transmission Position Sensor/Switch: Service and Repair
ON-VEHICLE REPAIR1. REMOVE ENGINE UNDER COVER

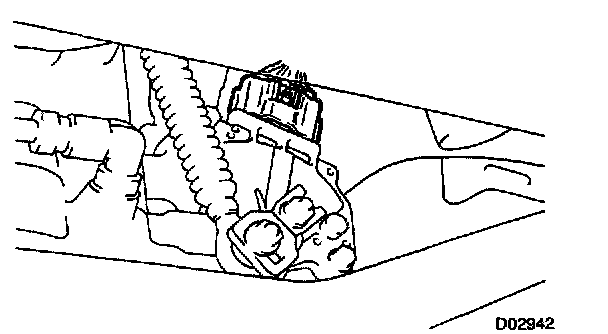

2. DISCONNECT PARK/NEUTRAL POSITION SWITCH CONNECTOR

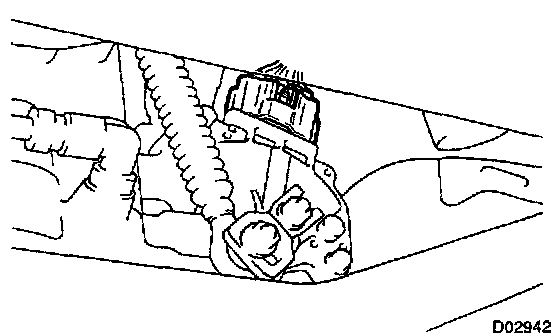

3. REMOVE PARK/NEUTRAL POSITION SWITCH

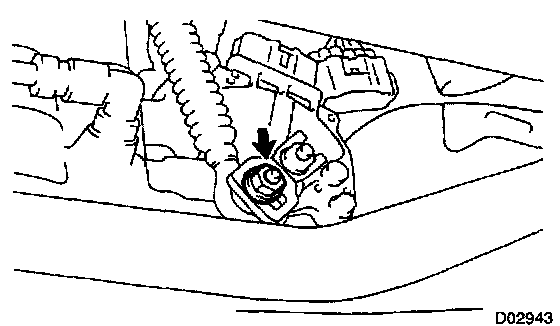

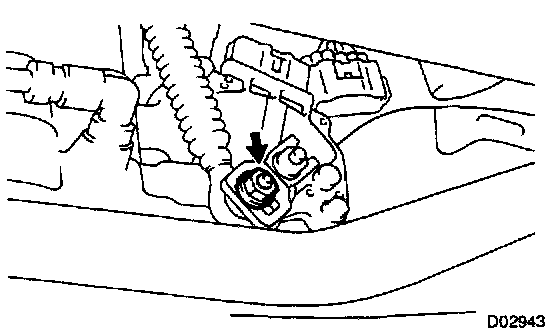

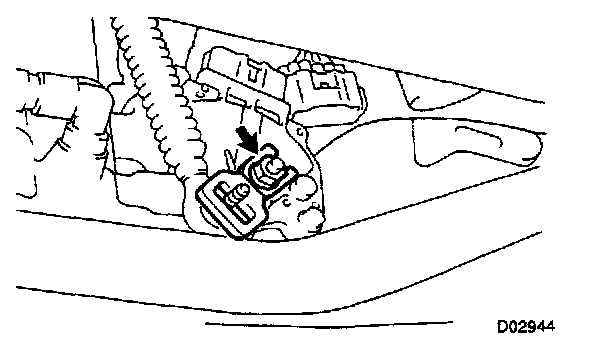

a. Remove the nut.

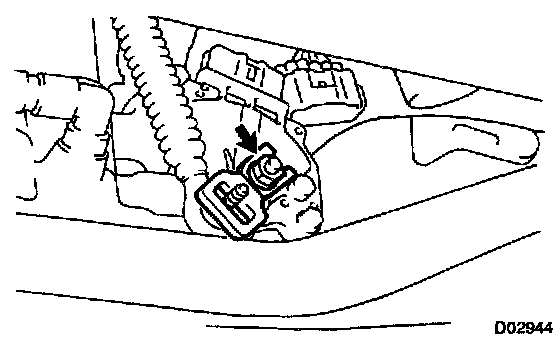

b. Remove the nut, washer and control shaft lever.

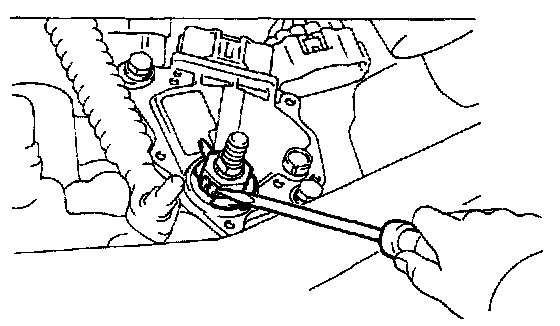

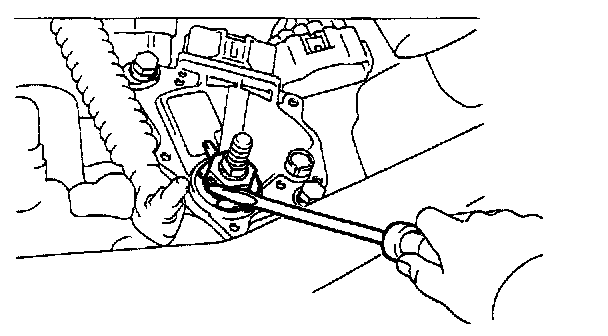

c. Using a screwdriver, pry off the lock plate.
d. Remove the nut and lock plate.

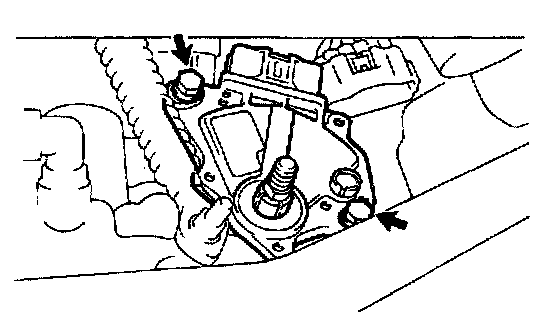

e. Remove the 2 bolts and pull out the park/neutral position switch.
4. INSTALL AND ADJUST PARK/NEUTRAL POSITION SWITCH
a. Install the park/neutral position switch with the 2 bolts.
Torque: 5.4 Nm (55 kgf-cm, 48 inch lbs.)
b. Install a new lock plate and nut.
Torque: 6.9 Nm (70 kgf-cm, 61 inch lbs.
c. Bend the claws on the lock plate to fix the nut.
d. Install the control shaft lever with the nut.
Torque: 13 Nm (130 kgf-cm, 9 ft. lbs.)
e. Connect the shift control cable to the control shaft lever.
f. Install the nut.
Torque: 15 Nm (150 kgf-cm, 11 ft. lbs.)
5. CONNECT PARK/NEUTRAL POSITION SWITCH CONNECTOR
6. CHECK PARK/NEUTRAL POSITION OPERATION
Check that the engine can be started with the shift lever only in the N or P position, but not in other position.
If the engine can not be stated not as started above, carry out the adjustment procedure.
7. INSTALL ENGINE UNDER COVER
8. TEST DRIVE VEHICLE
