Home >> Lexus >> 2000 >> ES 300 V6-3.0L (1MZ-FE) >> Repair and Diagnosis >> Powertrain Management >> Emission Control Systems >> Catalytic Converter >> Locations

Catalytic Converter: Locations

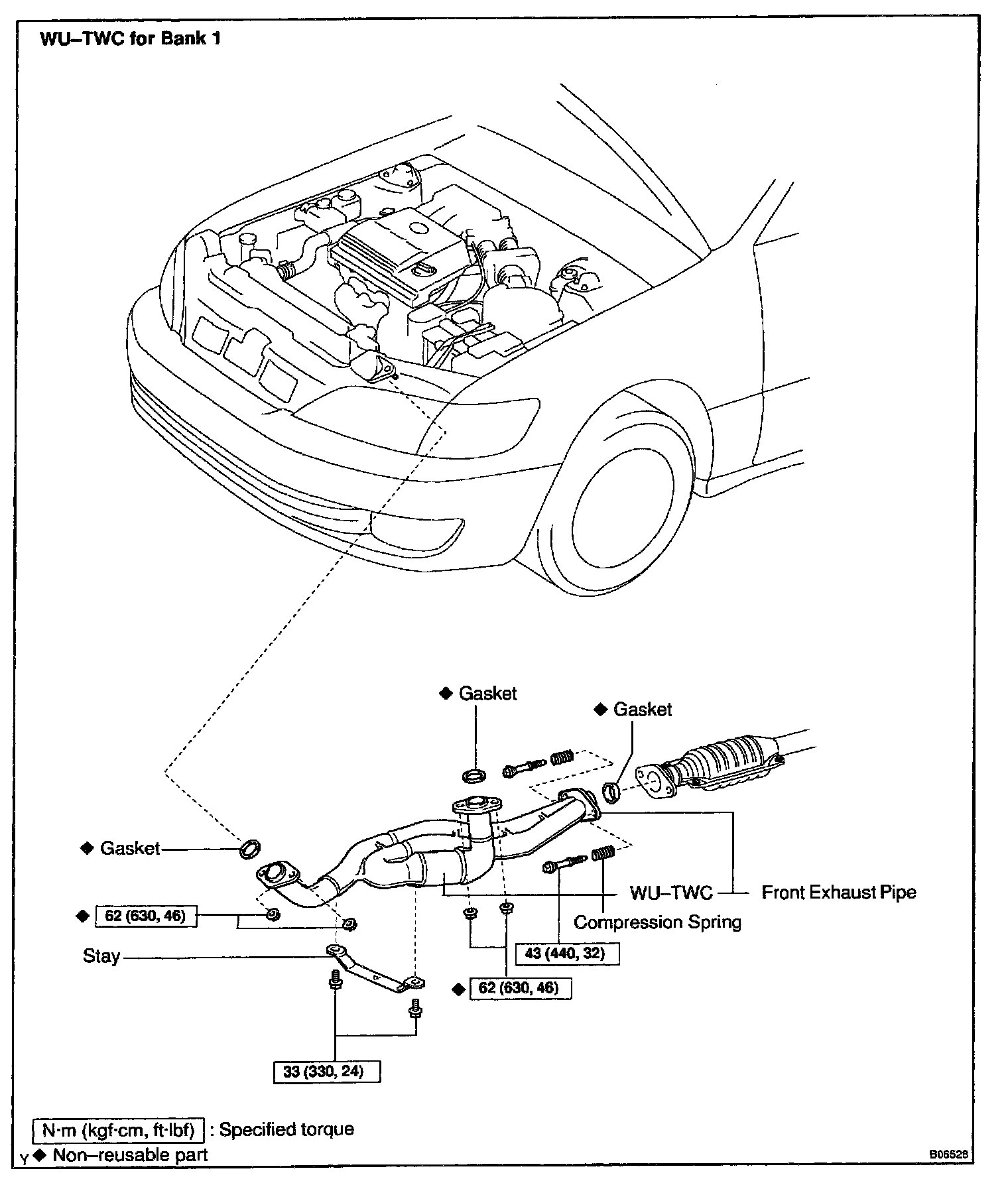

WU-TWC For Bank 1:

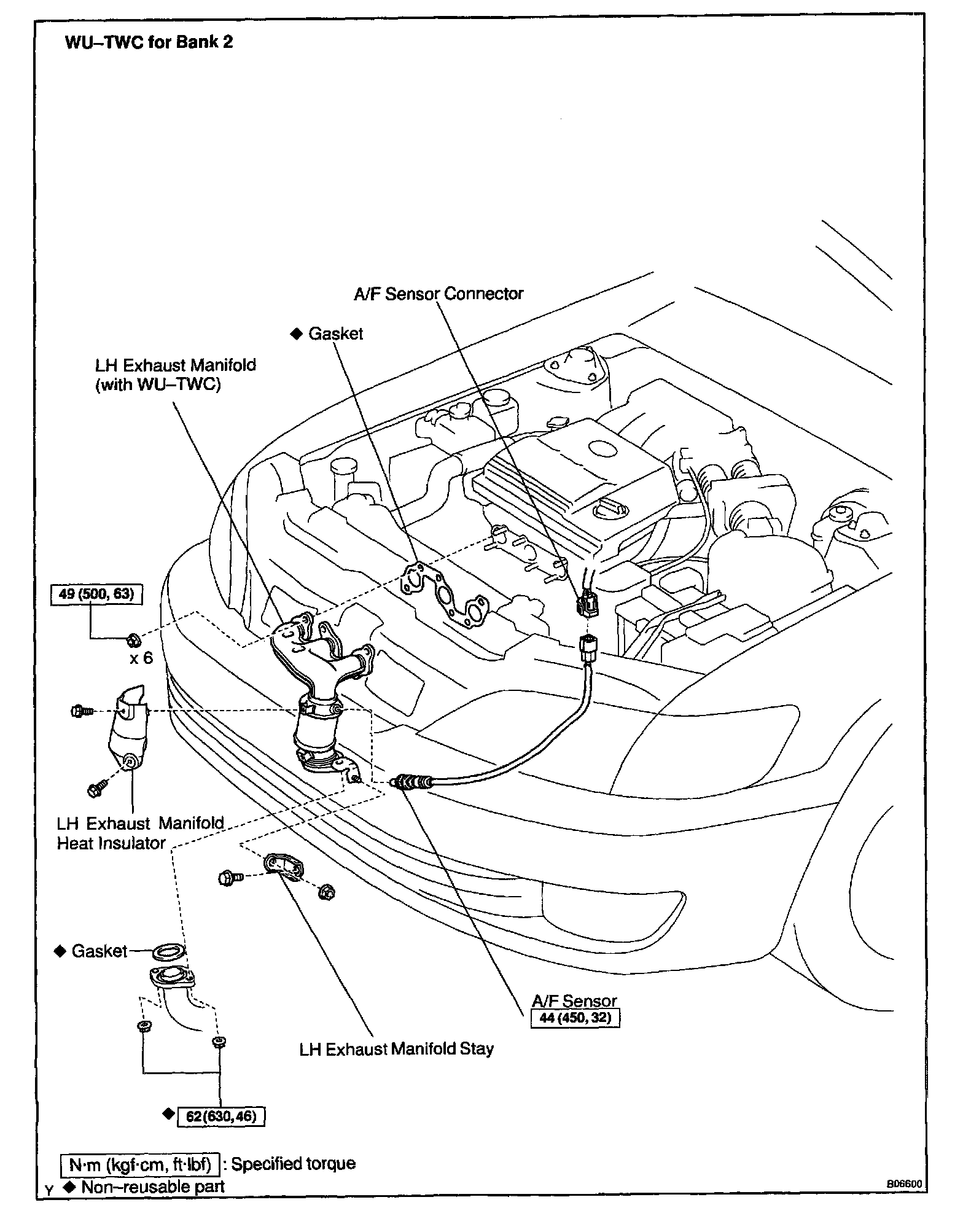

WU-TWC For Bank 2:
