FRONT WHEEL HUB BOLT REPLACEMENT
1. REMOVE FRONT WHEEL
2. REMOVE BRAKE CALIPER AND DISC
a. Remove the 2 bolts, brake caliper and disc.
b. Support the brake caliper securely.

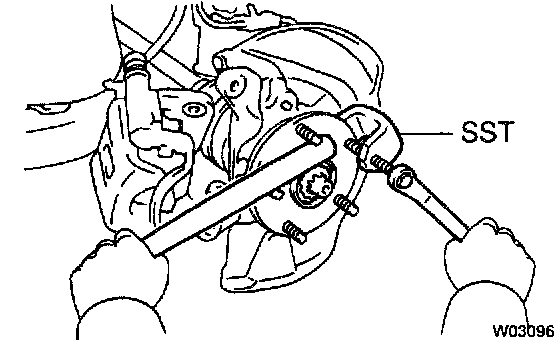

3. REMOVE HUB BOLT
Using SST, remove the hub bolt.
SST 09628-10011

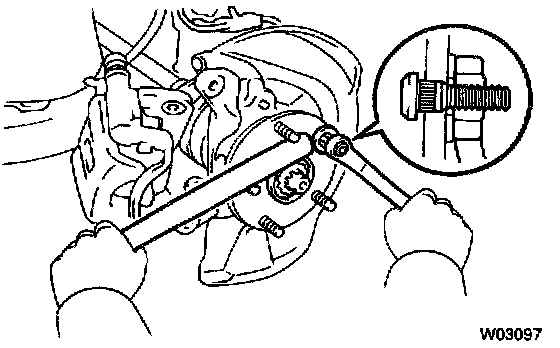

4. INSTALL HUB BOLT
Install a washer and nut to the hub bolt, as shown in the illustration, and install the hub bolt by torquing the nut.
5. INSTALL BRAKE DISC AND CALIPER
Install the disc and brake caliper with 2 bolts.
Torque: 107 Nm (1,090 kgf-cm, 79 ft. lbs.)
6. INSTALL FRONT WHEEL
Torque: 103 Nm (1,050 kgf-cm, 76 ft. lbs.)
