Cabin Air Filter / Purifier: Service and Repair

Air Refiner Filter Replacement (If Equipped)

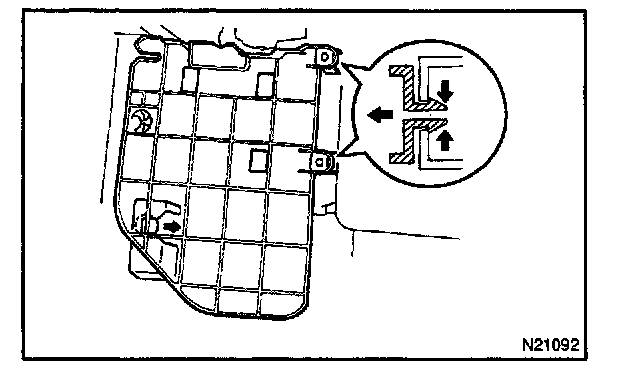

a. Release the 3 claws and remove the heater protector

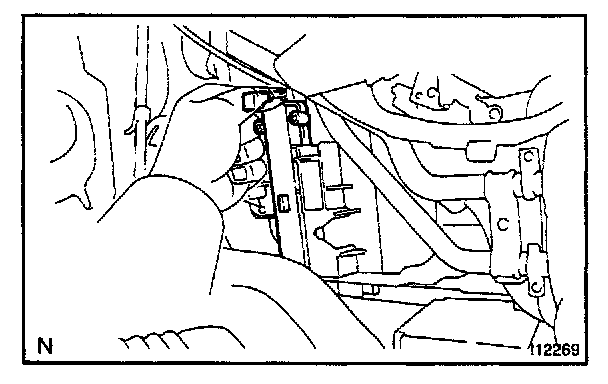

b. Release the 2 claws and remove the filter cover.

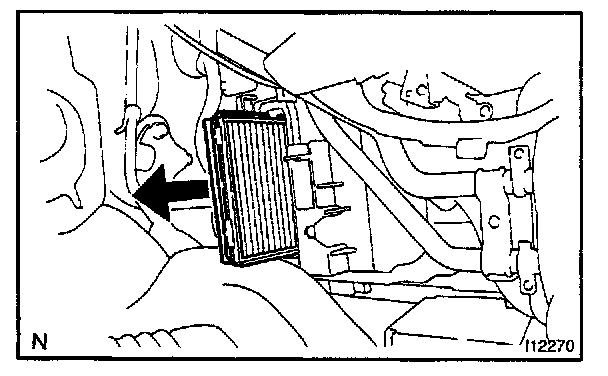

c. Pull out the air refiner filter.
