Headlight and Taillight System
Headlight and Taillight System

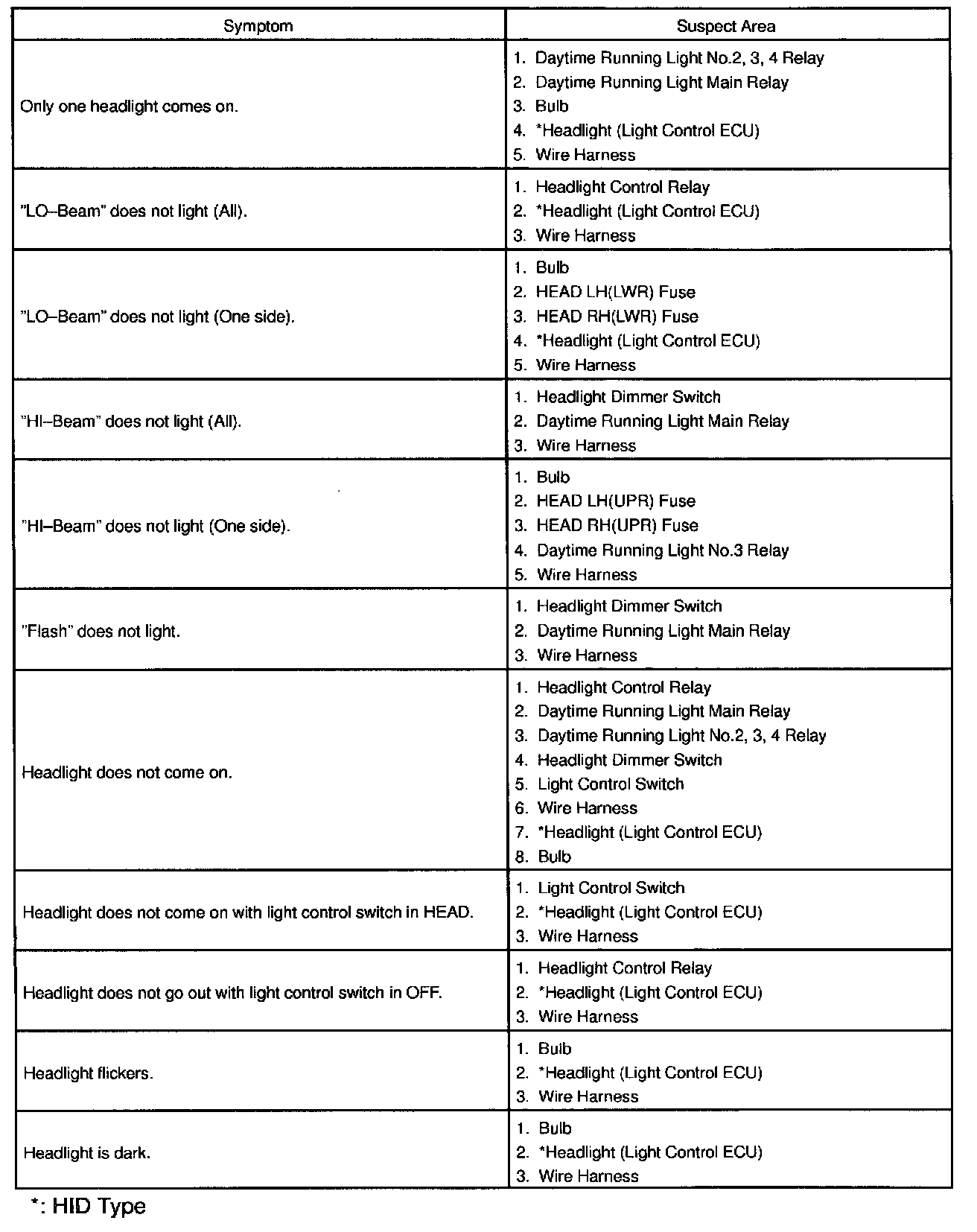

Problem Symptoms Table - Headlight And Taillight System (Part 1):

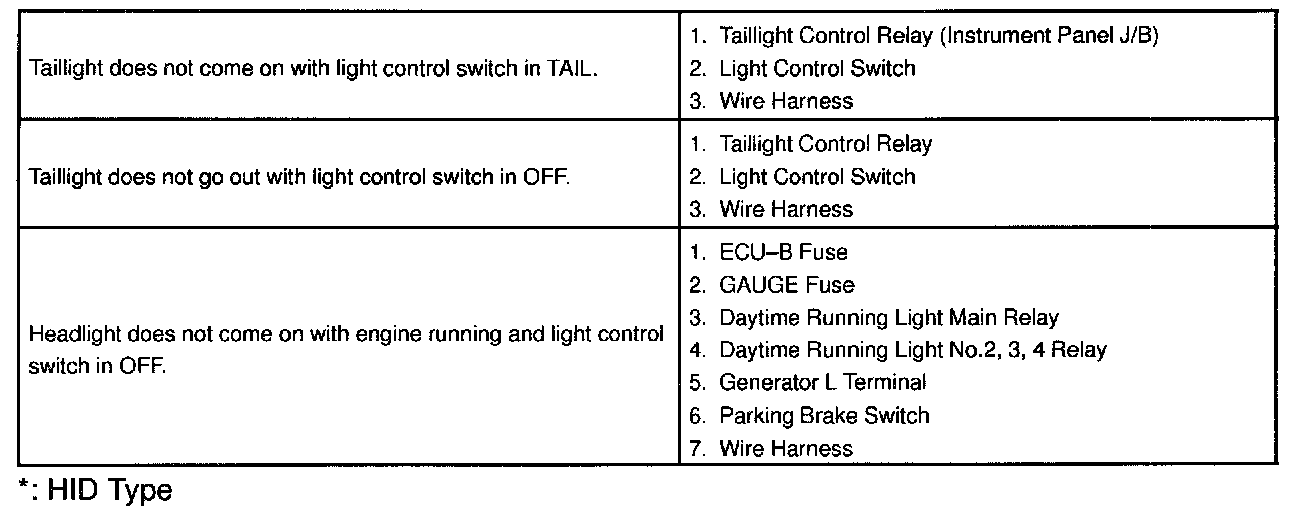

Problem Symptoms Table - Headlight And Taillight System (Part 2):
