Pinout Values and Diagnostic Parameters

Connector View (A14, A15):

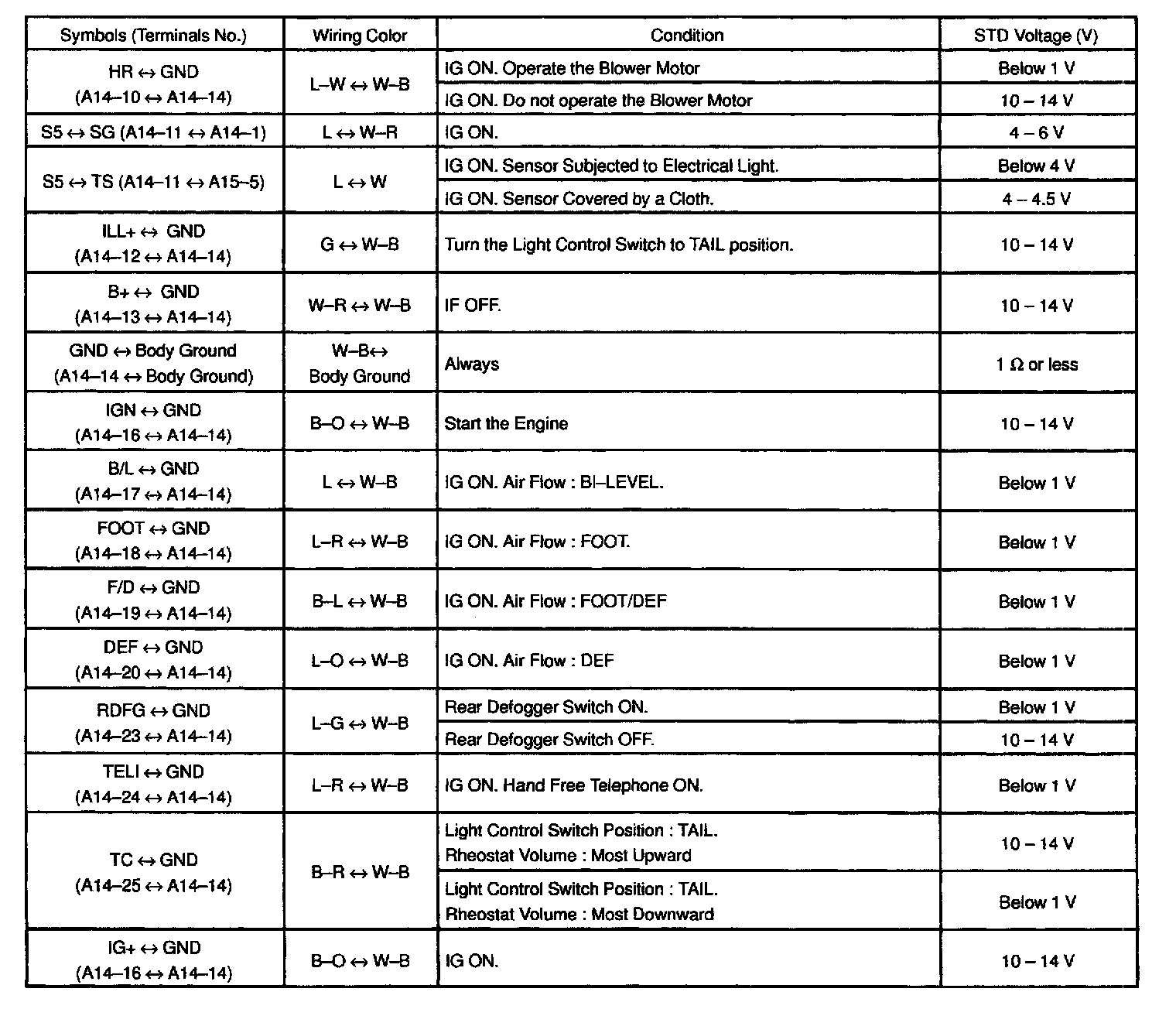

Pinout Diagram (Part 1 Of 2):




Pinout Diagram (Part 2 Of 2):




TERMINALS OF ECU
