Receiver Dryer: Service and Repair

REMOVAL

1. DISCHARGE REFRIGERANT FROM REFRIGERATION SYSTEM

HINT: At the time of installation, please refer to the following item.

Evacuate air from refrigeration system.
Charge system with refrigerant and inspect for leakage of refrigerant.

Specified amount: 800 ± 50 g (28.22 ± 1.76 oz.)

2. REMOVE RADIATOR UPPER SUPPORT SEAL




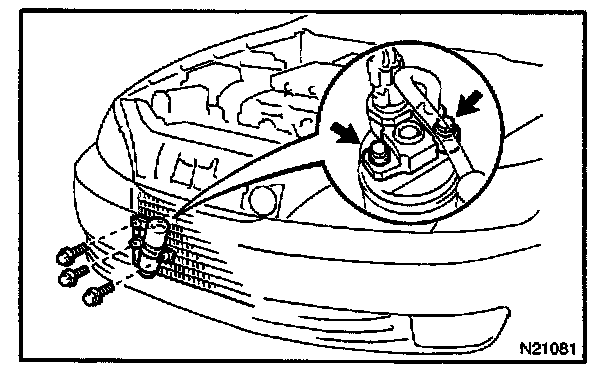

3. DISCONNECT 2 LIQUID TUBES FROM RECEIVER
Remove the 2 bolts and both tubes.

Torque: 5.4 Nm (55 kg.cm, 48 in.lb)

NOTE: Cap the open fittings immediately to keep moisture or dirt out of the system.

HINT: At the time of installation, please refer to the following item.
Lubricate 2 new O-rings with compressor oil and install the tubes.

4. REMOVE RECEIVER
a. Remove the holder bolt and pull out receiver downward.

HINT: At the time of installation, please refer to the following item.
If receiver is replaced, add compressor oil to receiver.

Add 20 cc (0.71 fl.oz.)
Compressor oil: ND-OIL 8 or equivalent

b. Remove the 2 bolts and holder.

INSTALLATION
Installation is in the reverse order of removal.
