Blower Motor Assembly

REMOVAL

1. REMOVE THESE PARTS:
a. Cowl side trim RH
b. Front door scuff inside plate RH
c. No.2 under cover

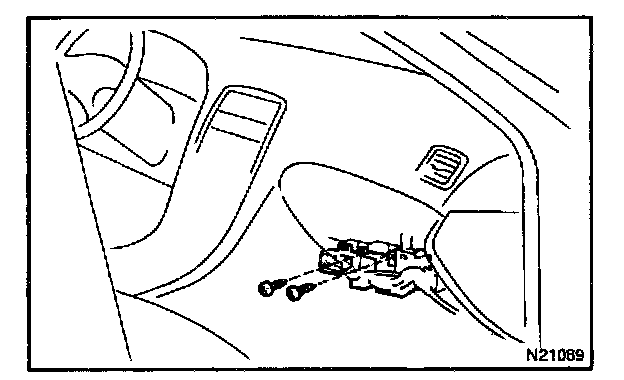

2. REMOVE 2 CONNECTOR BRACKET SET SCREWS

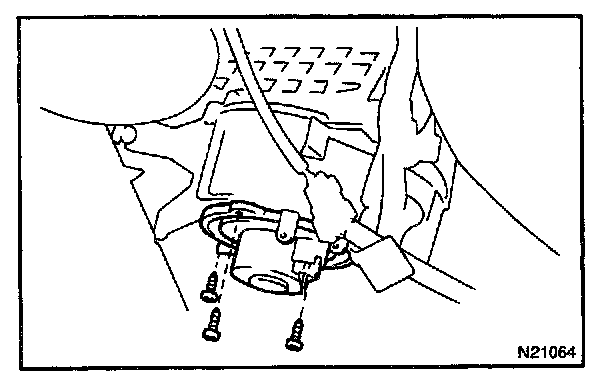

3. REMOVE BLOWER MOTOR
a. Disconnect the connector.
b. Remove the 3 screws and blower motor.

INSTALLATION
Installation is in the reverse order of removal.
