Air Inlet Servomotor

REMOVAL
1. REMOVE THESE PARTS:
a. Cowl side trim RH
b. Front door scuff inside plate RH
c. No.2 panel under cover
d. Lower finish panel

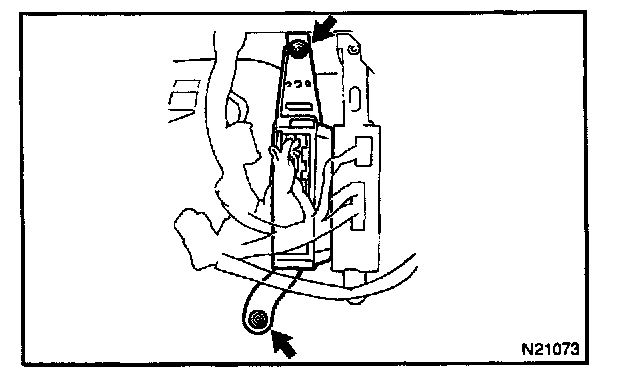

2. REMOVE ECM
a. Disconnect the connectors.
b. Remove the 2 nuts and ECM.

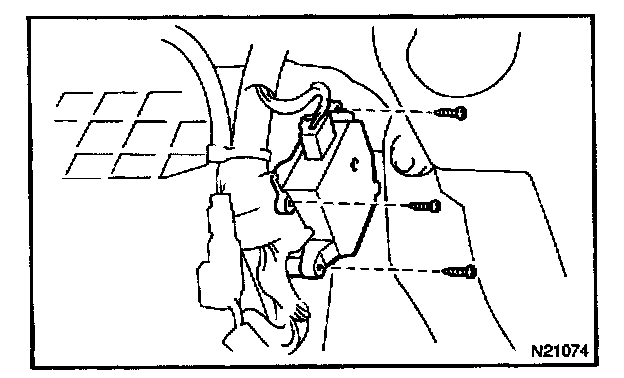

3. REMOVE AIR INLET SERVOMOTOR
a. Disconnect the connector.
b. Remove the 3 screws and servomotor.

INSTALLATION
Installation is in the reverse order of removal.
