Thermostat: Service and Repair
REMOVAL
HINT: Removal of the thermostat would have an adverse effect, causing a lowering of cooling efficiency. Do not remove the thermostat, even if the engine tends to overheat.
1. DRAIN ENGINE COOLANT

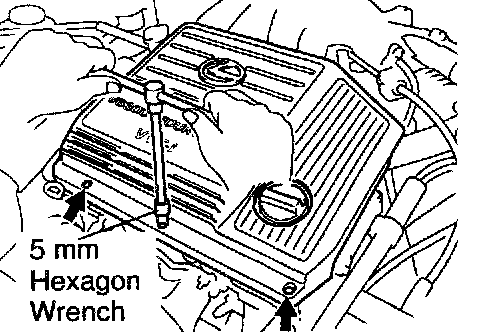

2. REMOVE V-BANK COVER
a. Using a 5 mm hexagon wrench, remove the 3 cap nuts.
b. Loosen the V-bank cover fastener counterclockwise.
c. Remove the V-bank cover.
3. WARM UP ENGINE
Allow the engine to warm up to normal operating temperature.
4. REMOVE AIR CLEANER HOSE WITH RESONATOR
5. DISCONNECT HEATER HOSES
6. DISCONNECT NO.2 ECT SWITCH CONNECTOR

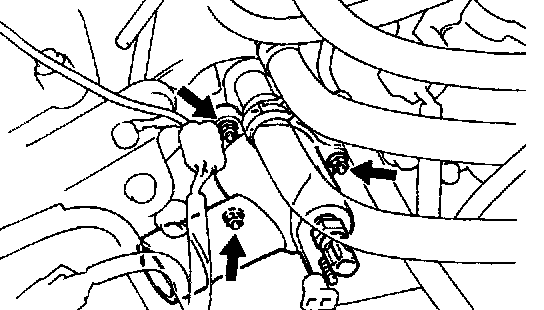

7. DISCONNECT ENGINE WIRE PROTECTOR FROM WATER INLET AND RH CYLINDER HEAD
Remove the nut and disconnect the clamp, and disconnect the engine wire protector from the water inlet and cylinder head.

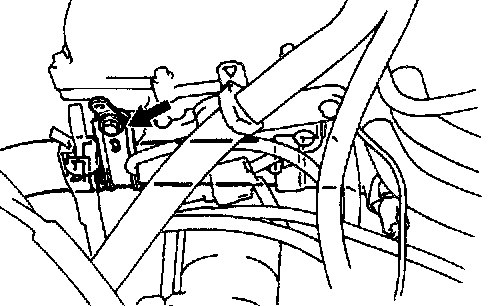

8. DISCONNECT WATER INLET PIPE FROM WATER INLET AND LH CYLINDER HEAD
a. Remove the bolt, and disconnect the inlet pipe from the water inlet.
b. Remove the O-ring from the inlet pipe.
9. REMOVE WATER INLET AND THERMOSTAT
a. Remove the 3 nuts, water inlet and thermostat.
b. Remove the gasket from the thermostat.
INSPECTION
INSPECT THERMOSTAT

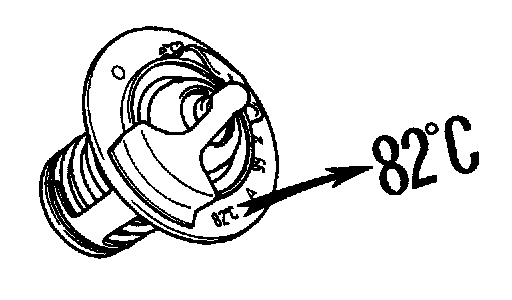

HINT: The thermostat is numbered with the valve opening temperature.

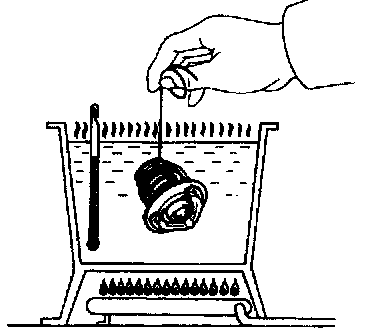

a. Immerse the thermostat in water and gradually heat the water.
b. Check the valve opening temperature.
Valve opening temperature: 80 - 84°C (176 - 183°F)
If the valve opening temperature is not as specified, replace the thermostat.

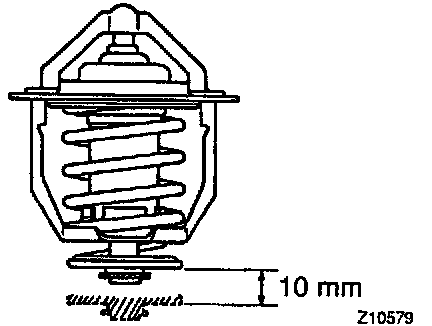

c. Check the valve lift.
Valve lift: 10.0 mm (0.394 inch) or more at 95°C (203°F)
If the valve lift is not as specified, replace the thermostat.
d. Check that the valve is fully closed when the thermostat is at low temperatures (below 40°C (104°F)).
If not closed, replace the thermostat.
INSTALLATION
1. PLACE THERMOSTAT IN WATER PUMP
a. Install a new gasket on to the thermostat.

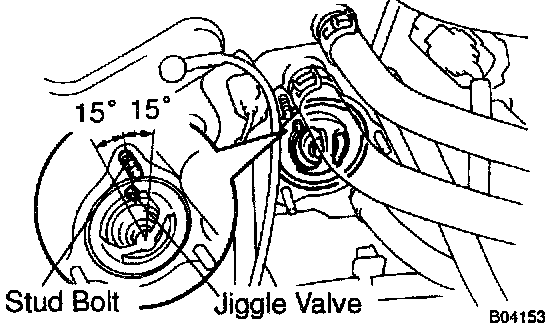

b. Align the thermostat jiggle valve with the upper stud bolt, and insert the thermostat in the water inlet housing.
HINT: The jiggle valve may be set within 15° of either side of the prescribed position.
2. INSTALL WATER INLET
Install the water inlet with the 3 nuts.
Torque: 8 Nm (80 kgf-cm, 69 inch lbs.)
3. INSTALL WATER INLET PIPE
a. Install a new O-ring to the water inlet pipe
b. Apply soapy water to the O-ring.
c. Connect the water inlet pipe to the water inlet.
d. Install the bolt holding the water inlet pipe to the LH cylinder head.
Torque: 19.5 Nm (200 kgf-cm, 14 ft. lbs.)
4. INSTALL ENGINE WIRE PROTECTOR
5. CONNECT NO.2 ECT SWITCH CONNECTOR
6. CONNECT HEATER HOSES
7. REINSTALL AIR CLEANER HOSE WITH RESONATOR
8. INSTALL V-BANK COVER
a. Using 5 mm hexagon wrench, install the V-bank cover with the 3 cap nuts.
b. Press down the V-bank cover fastener.
9. FILL WITH ENGINE COOLANT
10. START ENGINE AND CHECK FOR LEAKS
11. RECHECK ENGINE COOLANT LEVEL
