ABS and TRAC Actuator

REMOVAL





1. REMOVE RIGHT FRONT FENDER LINER
2. REMOVE A/C TUBE CLAMP BRACKET BOLT

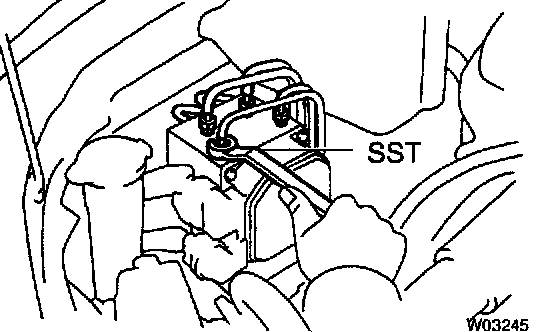

3. DISCONNECT BRAKE LINES
Using SST, disconnect the 6 brake lines from the ABS & TRAC actuator.
SST 09751-36011
Torque:
10 mm nut 15 Nm (155 kgf-cm, 11 ft. lbs.)
12 mm nut 20 Nm (200 kgf-cm, 14 ft. lbs.)
4. REMOVE ABS & TRAC ACTUATOR ASSEMBLY
a. Disconnect the 2 connectors.
b. Remove the 2 bolts, 2 nuts and ABS & TRAC actuator assembly.
Torque: 19 Nm (195 kgf-cm, 14 ft. lbs.)
5. REMOVE ABS & TRAC ACTUATOR
a. Remove the 2 nuts and ABS & TRAC actuator from actuator bracket.
Torque: 5.4 Nm (55 kgf-cm, 48 inch lbs.)
b. Remove the 2 holders and 3 cushions from the ABS & TRAC actuator.

INSTALLATION
Installation is in the reverse order of removal.

HINT:
^ After installation, fill brake reservoir with brake fluid and bleed brake system.
^ Check for leaks.
