ABS W/Traction Control (TRAC)

CIRCUIT DESCRIPTION




DETECTING CONDITIONS

Fail safe function:
If any trouble occurs in the power source circuit, the ECU cuts off current to the ABS & TRAC solenoid relay and prohibits ABS control and TRAC control.

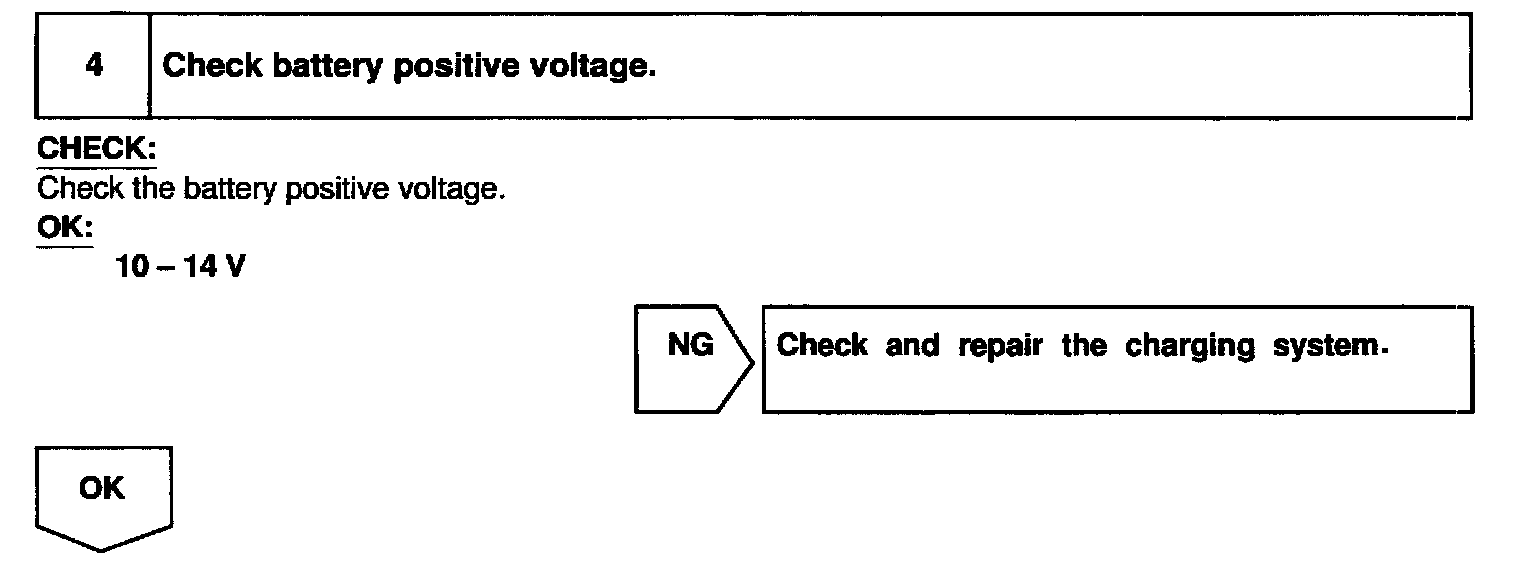

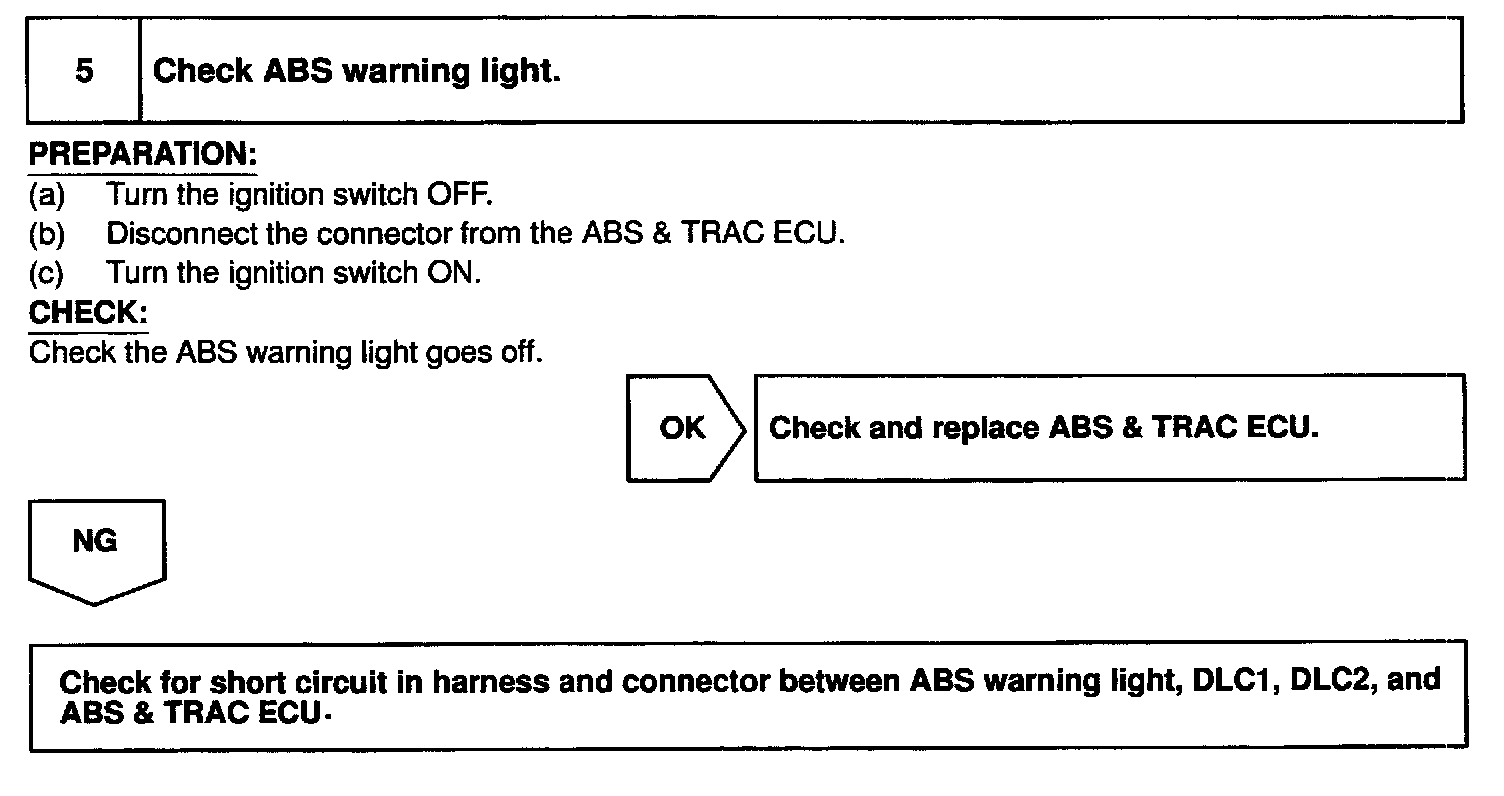

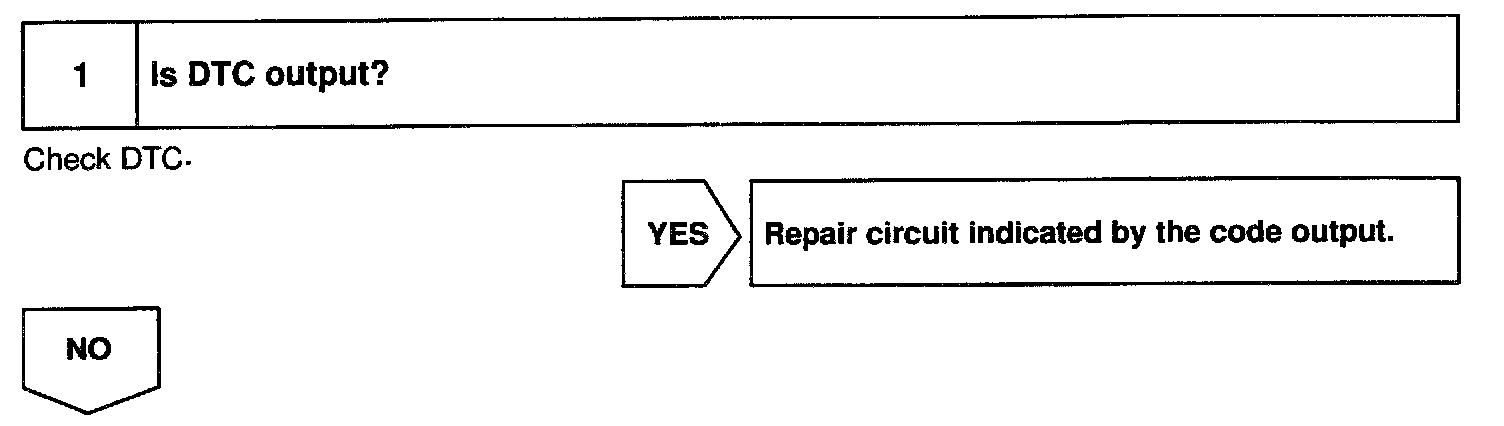

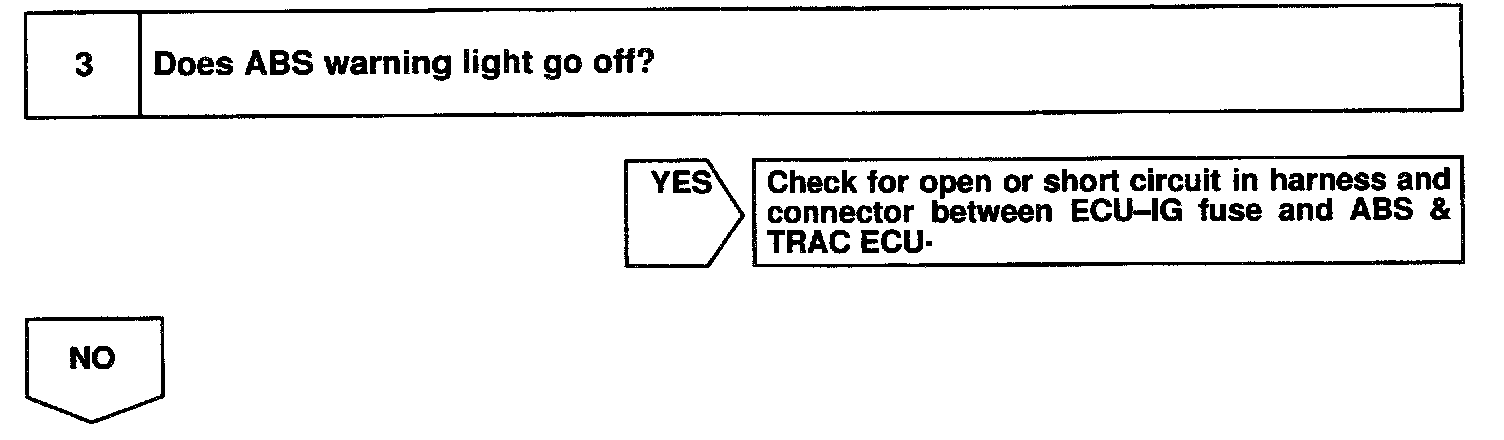

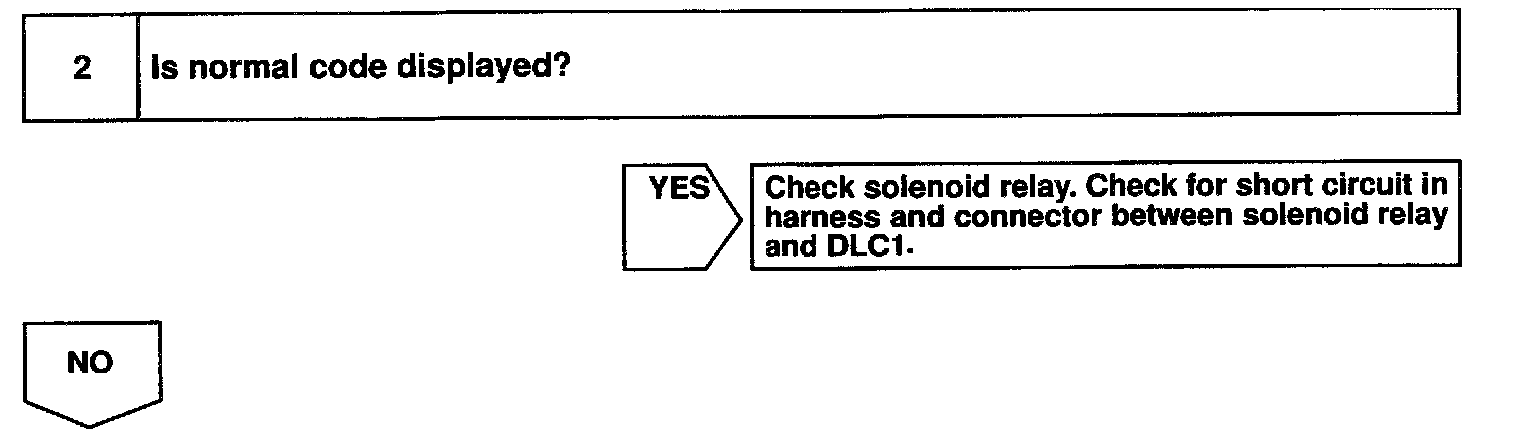

INSPECTION PROCEDURE
