Indicator Check

DIAGNOSIS SYSTEM




Check the indicator.

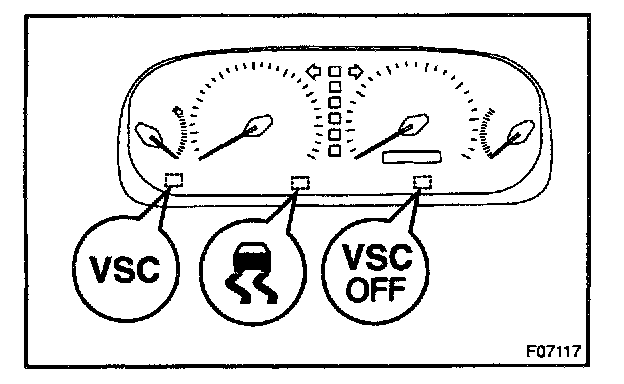

When the ignition switch is turned ON, check that the VSC warning light, VSC OFF indicator light and SLIP indicator light go ON for about 3 seconds.

HINT:
- If the ECU stores DTC, VSC warning light and VSC OFF indicator light are ON.
- If the indicator check result is not normal, proceed to troubleshooting for the VSC warning light circuit, VSC OFF indicator light circuit, and SLIP indicator light circuit.
