Tc Terminal Circuit

CIRCUIT DESCRIPTION
Connecting terminals To and E1 of the DLC2 or DLC1 causes the ECU to display the DTC by flashing the ABS warning light.




WIRING DIAGRAM

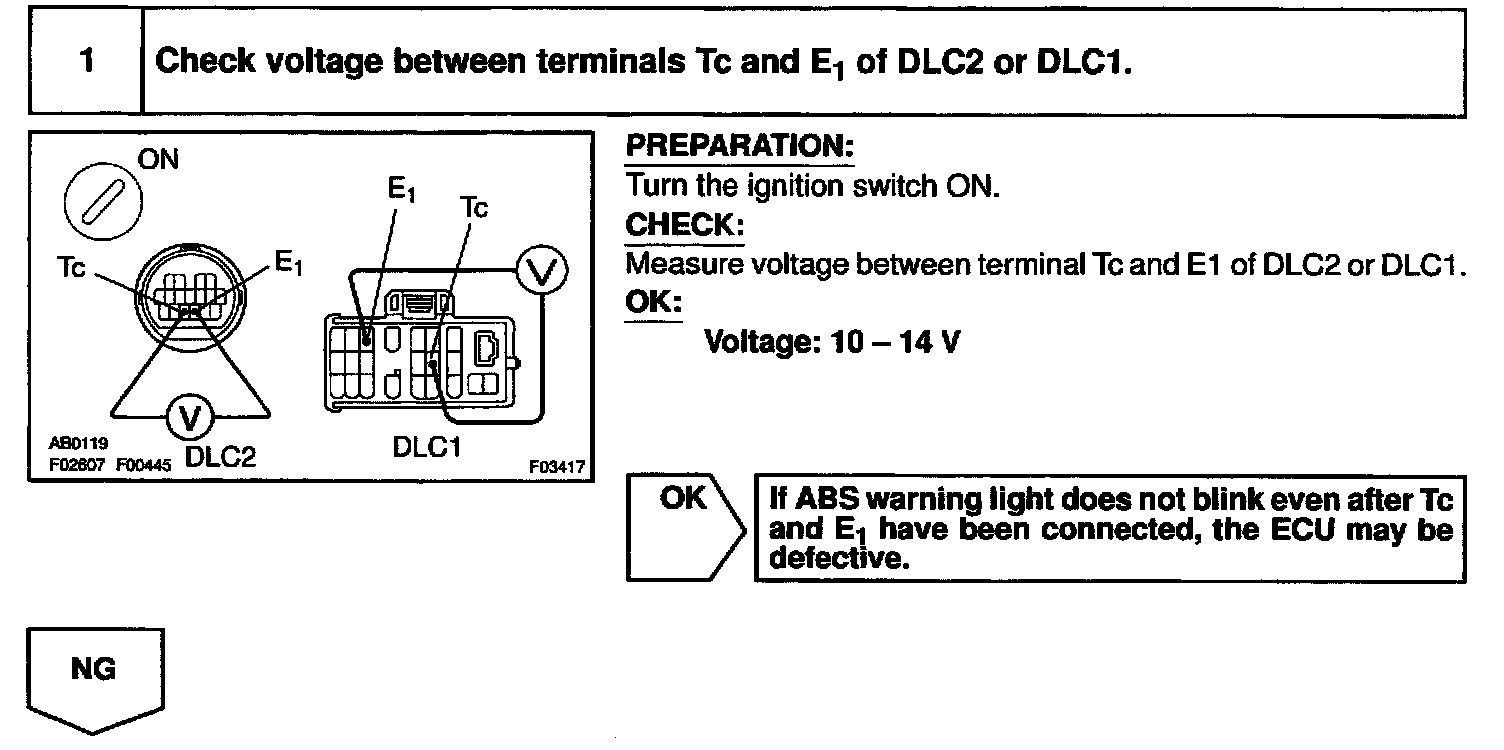

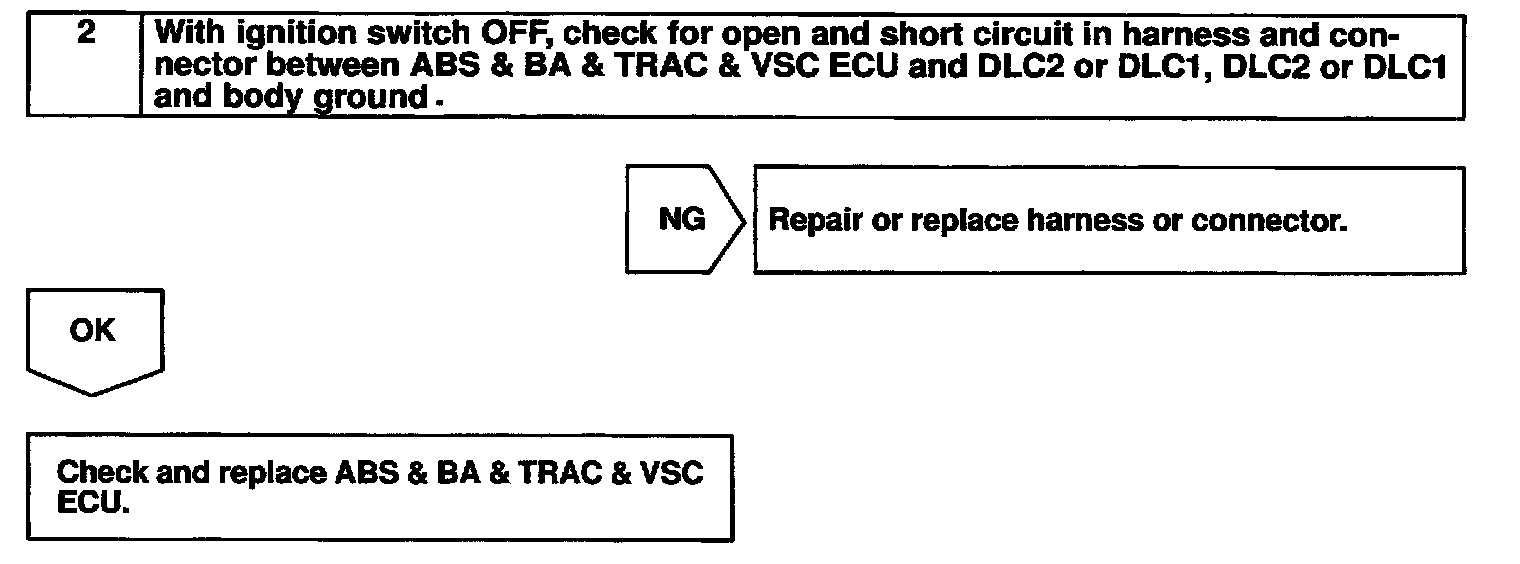

INSPECTION PROCEDURE
