Front Fender Apron (Assembly)

FRONT FENDER APRON (ASSEMBLY)

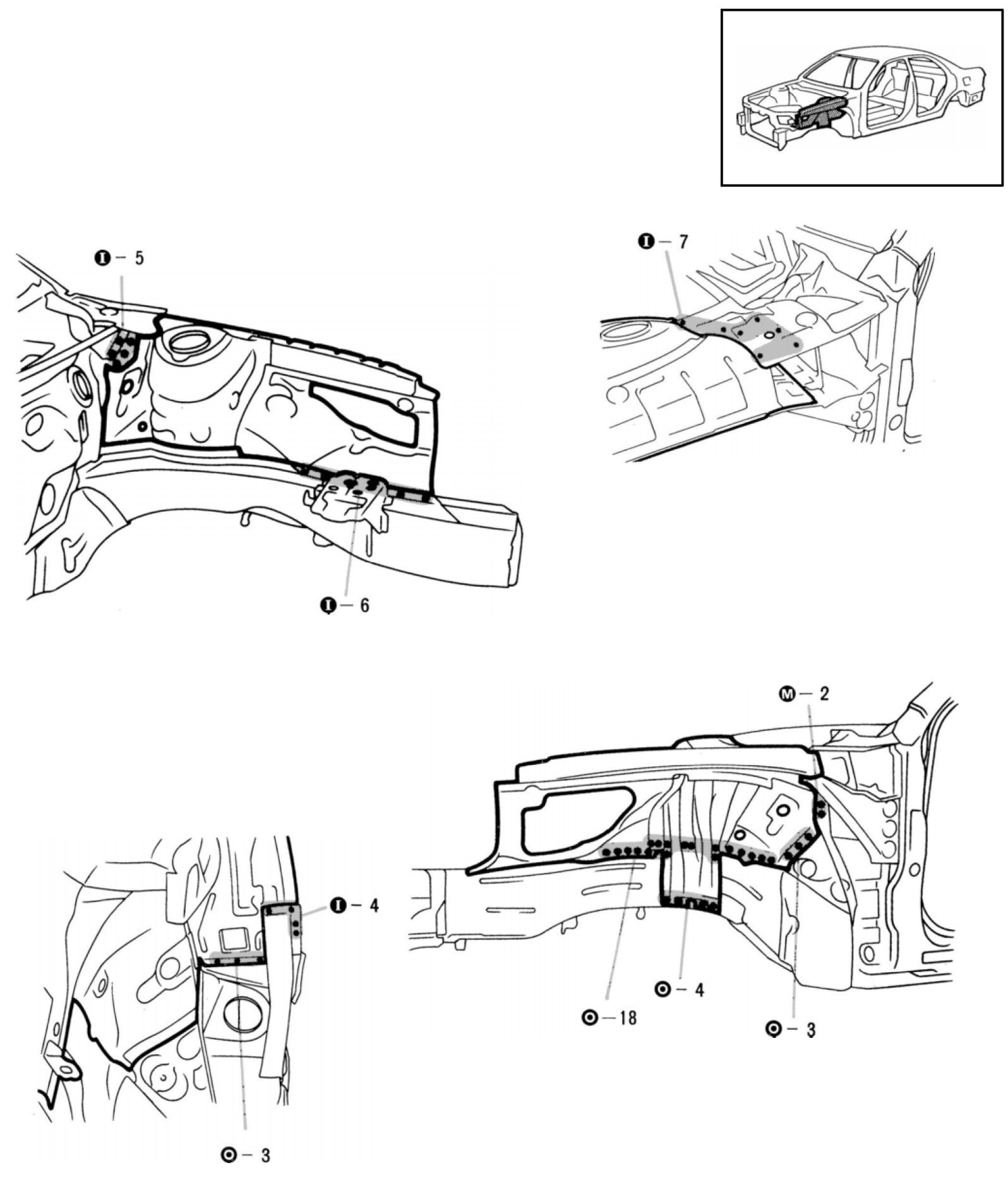

REMOVAL (With the radiator support and cowl top side panel removed.)

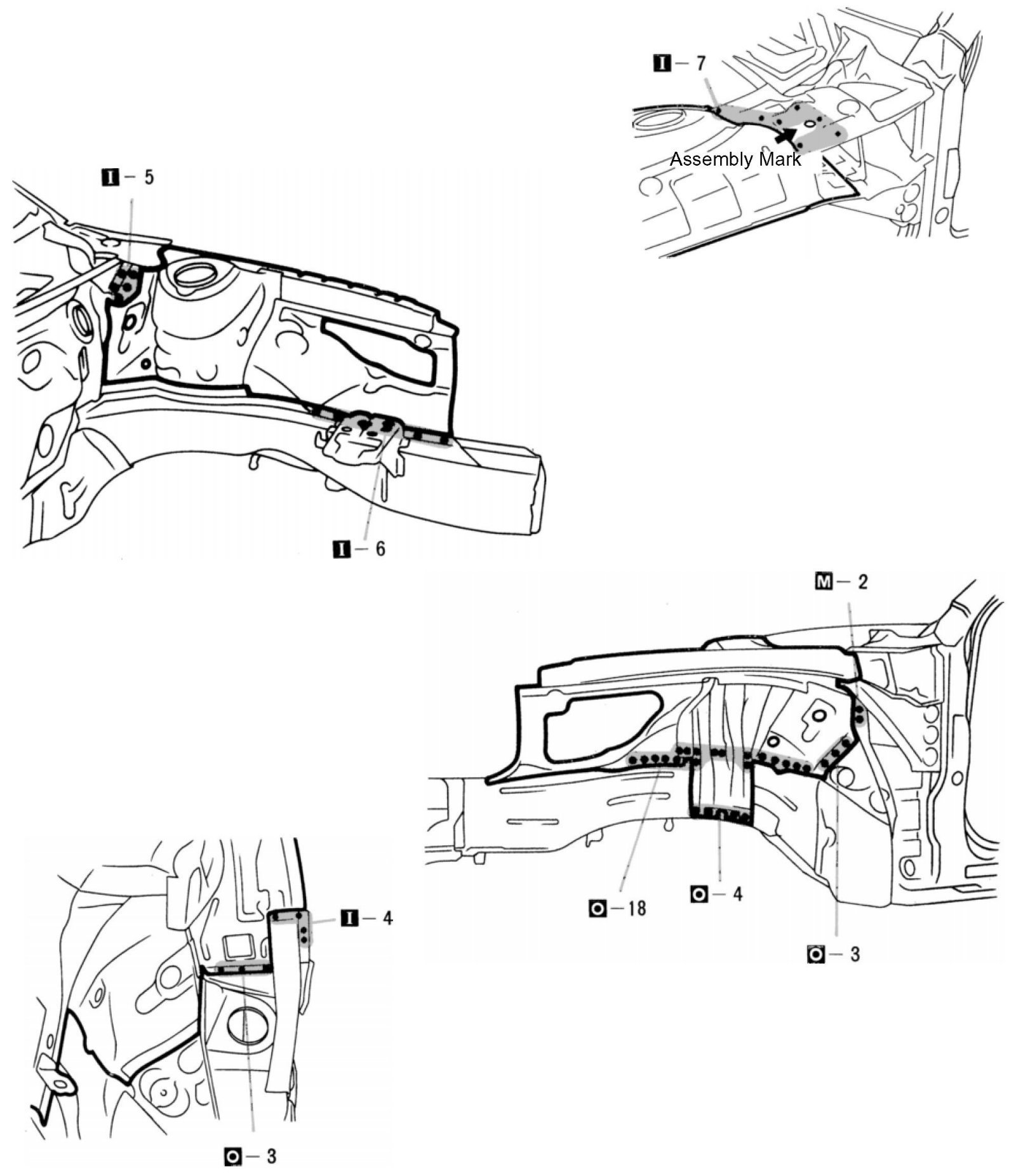

INSTALLATION

1. Temporarily install the new parts and measure each part in accordance with the body dimension diagram.

HINT: Make sure each measurement is correct, as this part affects the front wheel alignment.

2. Temporarily install the front fender and hood, and check the fit.
