Standard Values of ECU Terminals

Connector View (T3, T40):

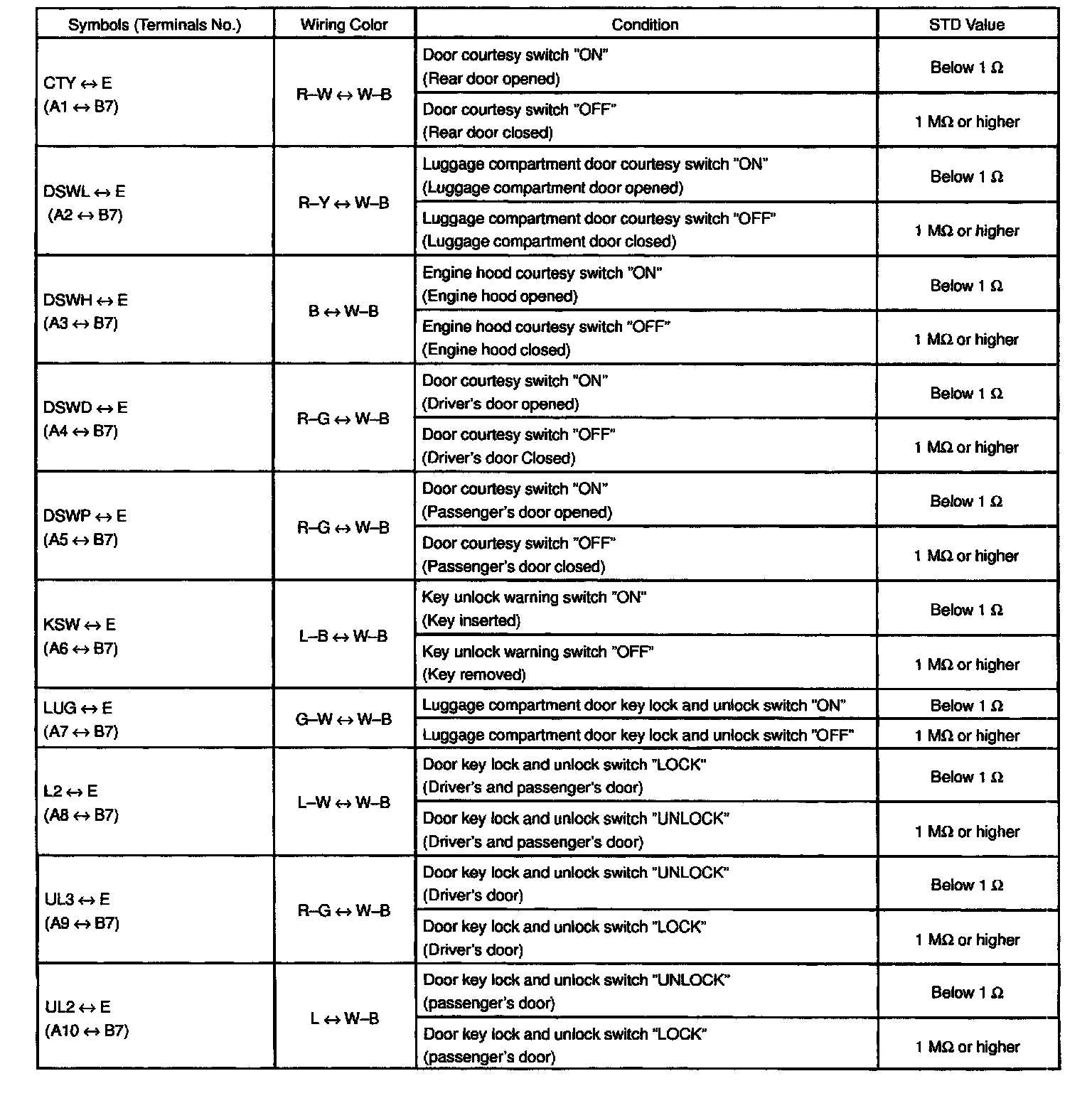

Pin Out Diagram (Part 1 Of 2):

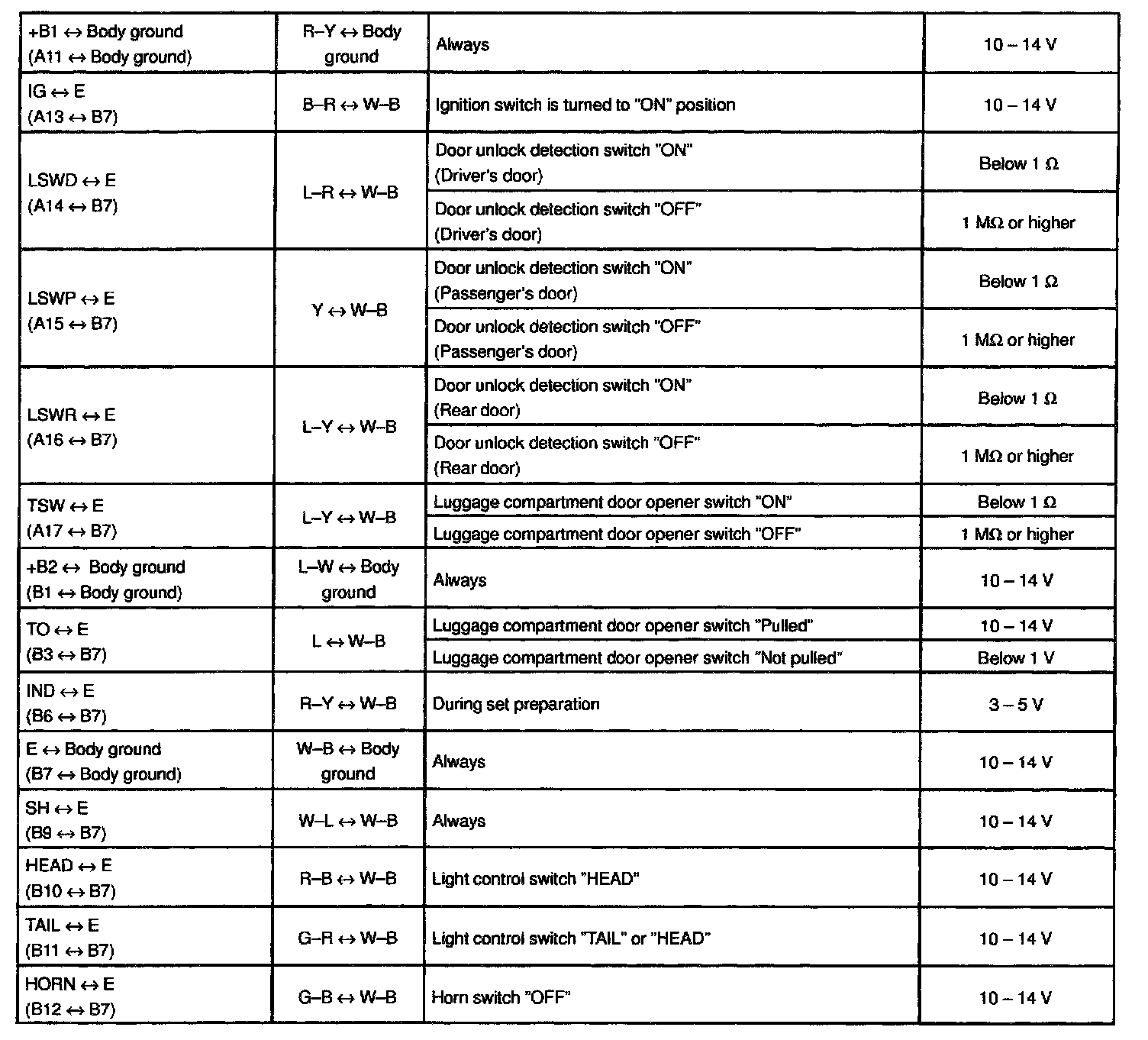

Pinout Diagram (Part 2 Of 2):




TERMINALS OF ECU
