Engine Immobilizer System

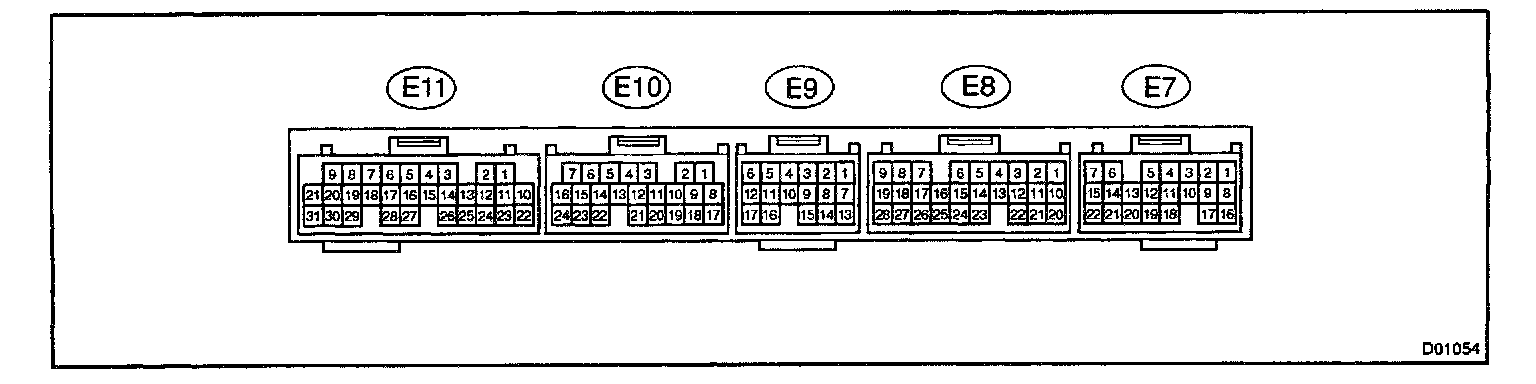

Connector View (E11, E10, E9, E8, E7):

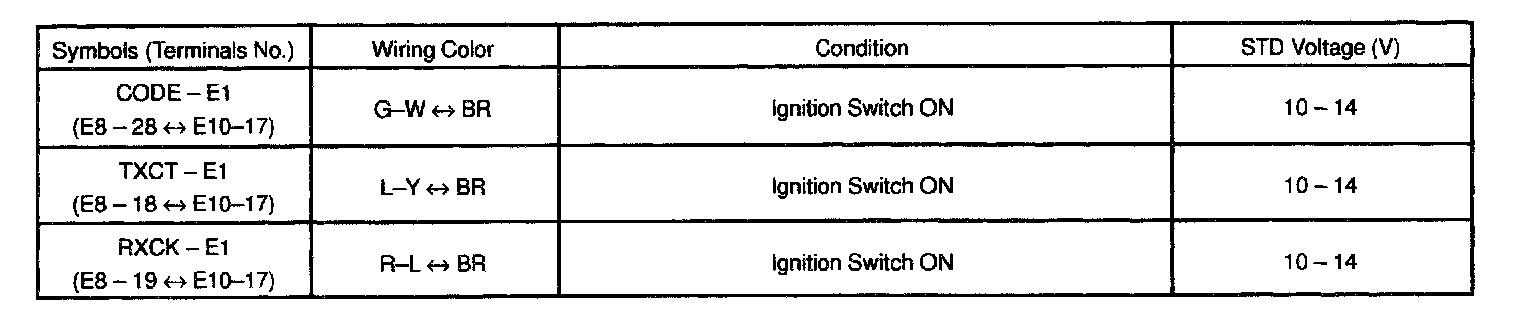

Pinout Diagram:




TERMINALS OF ECM
