Luggage Compartment Door Opener Motor Circuit

CIRCUIT DESCRIPTION
This circuit unlocks the luggage compartment door when the ECU sends signals to the luggage compartment door opener motor.

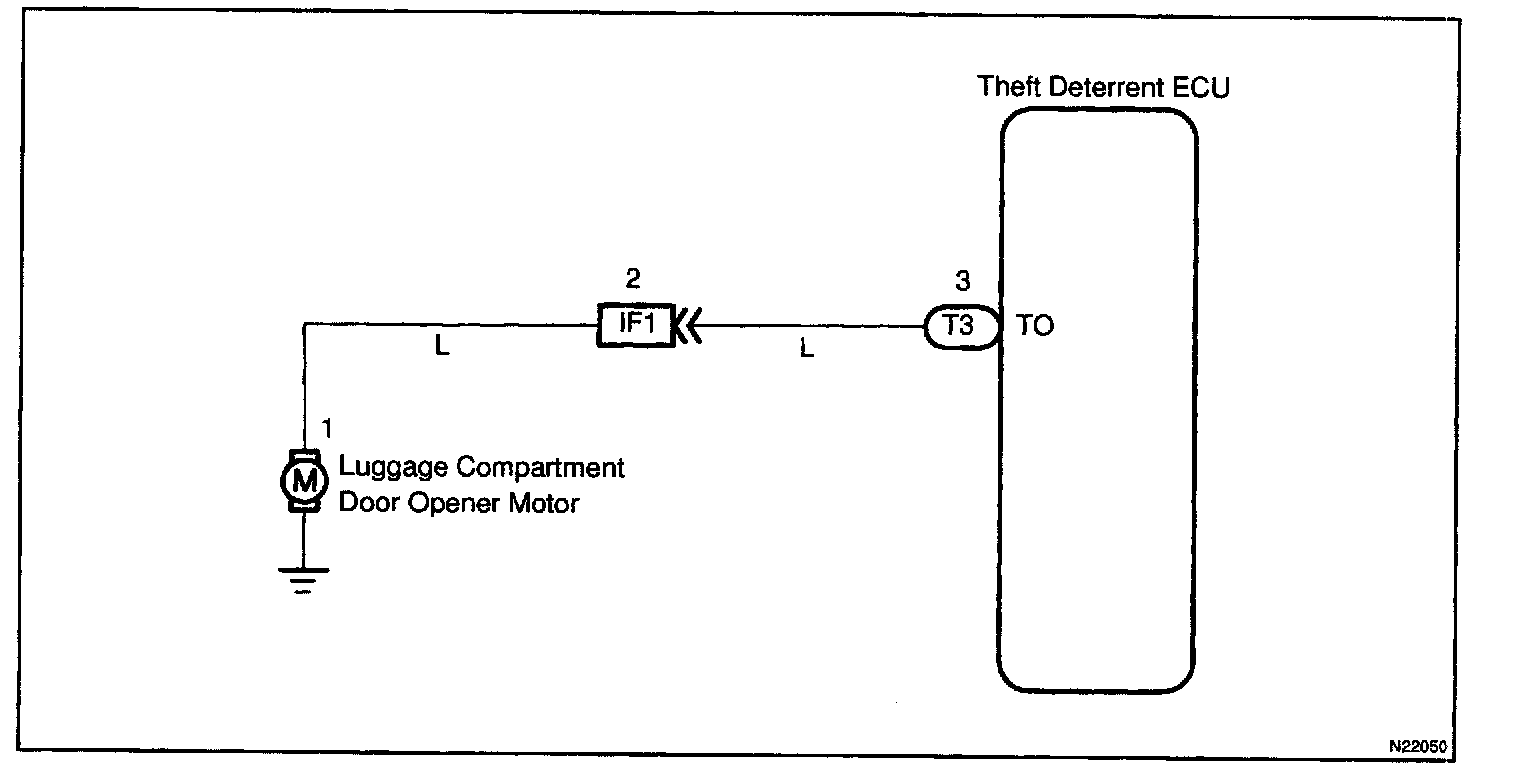

Wiring Diagram:

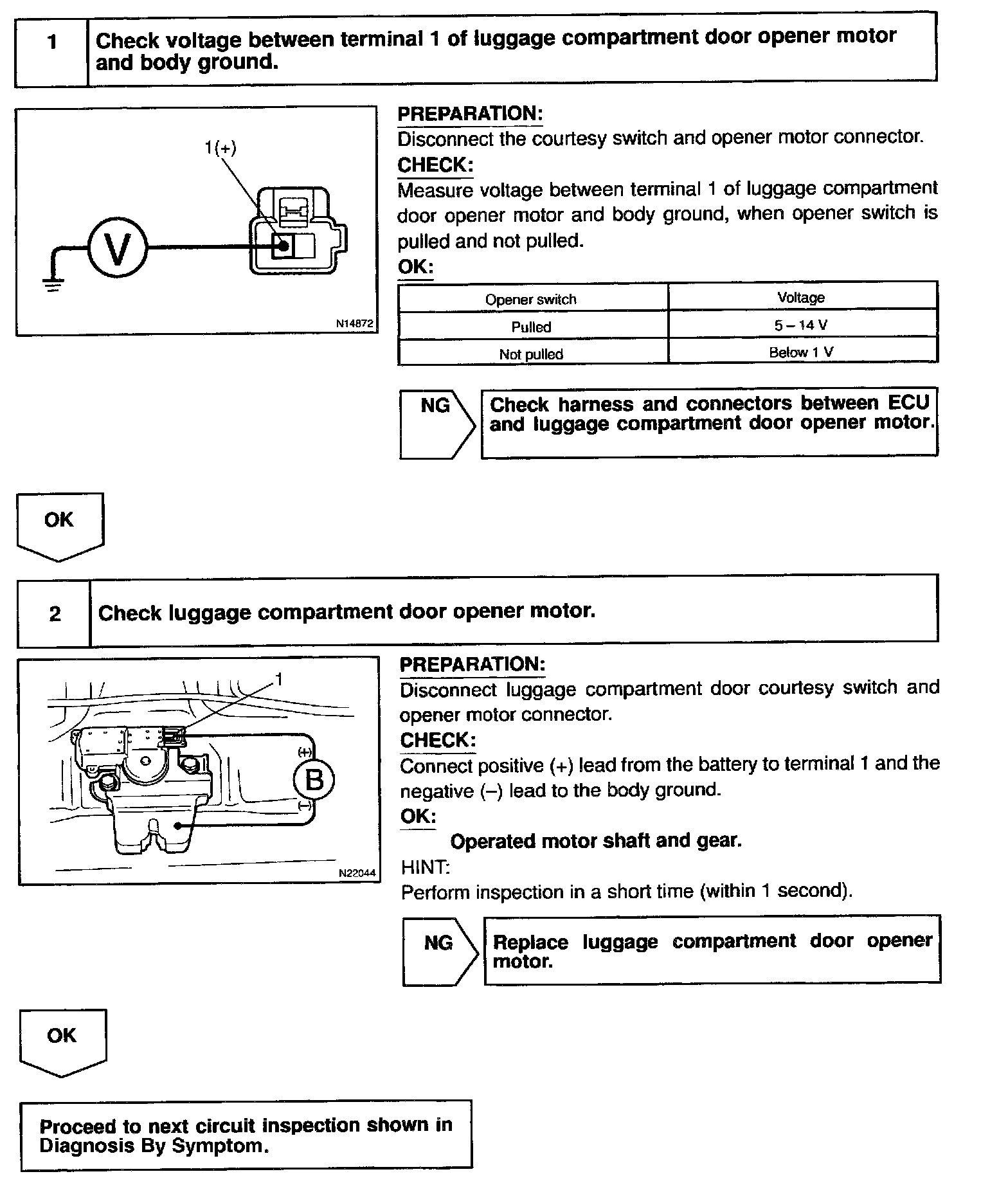

Steps 1 - 2:




INSPECTION PROCEDURE
