Removal and Installation

REMOVAL




REMOVE ANTENNA CORD
a. Remove the following parts:
- Instrument panel assembly)
- Console box
- Rear seat
- Right rear poller garnish
- Package tray trim
- Room partition trim

b. Remove antenna cord from glass printed antenna.

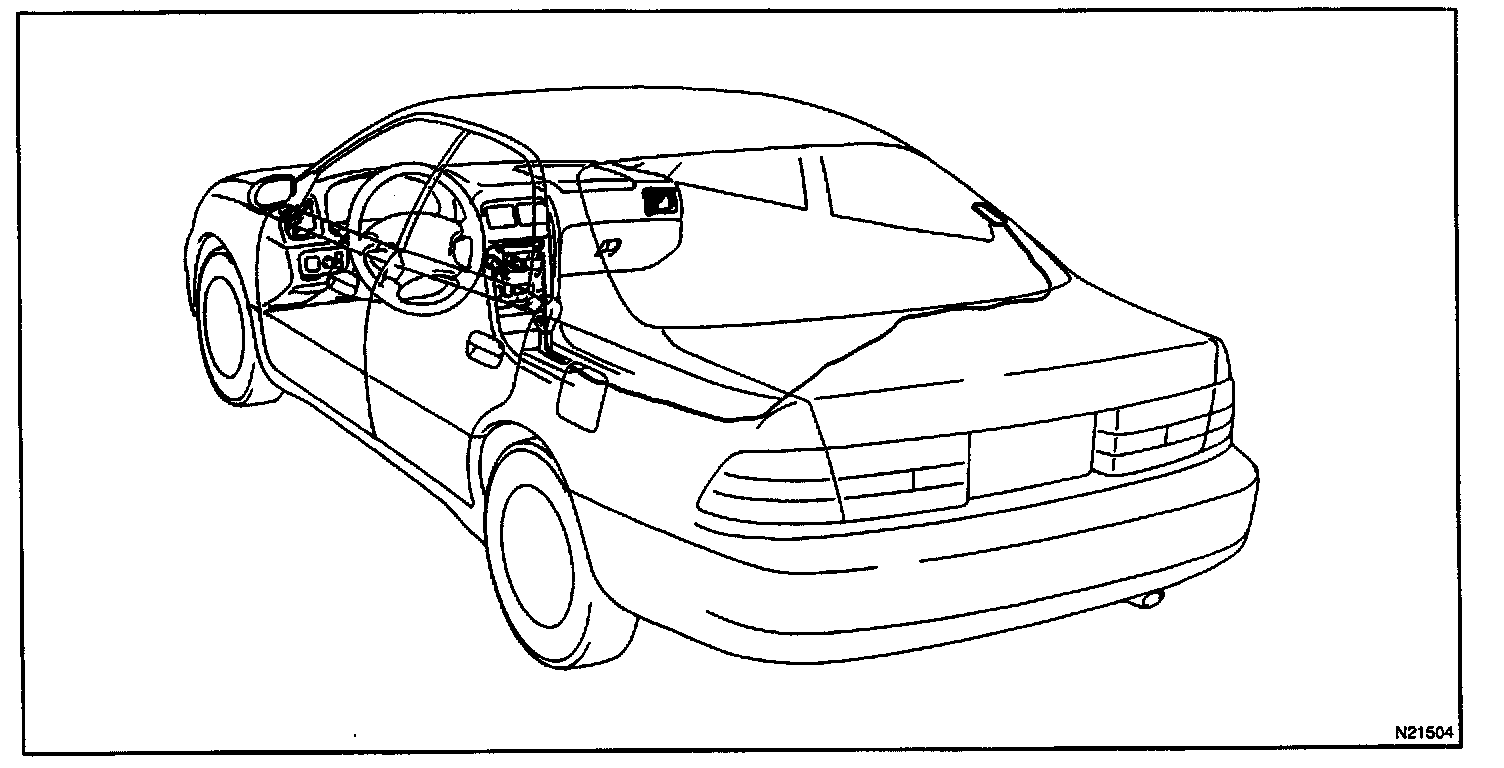

c. Disconnect the connectors shown in the illustration.
d. Remove the clips and antenna cord assembly.

INSTALLATION
Installation is in the reverse order of removal.
