P1725

DTC P1725 NT REVOLUTION SENSOR CIRCUIT MALFUNCTION


CIRCUIT DESCRIPTION
This sensor detects the rotation speed of the input turbine. By comparing the input turbine speed signal (NT) and the counter gear speed sensor signal (NC), the ECM detects the shift timing of the gears and appropriately controls the engine torque and hydraulic pressure in response to various conditions, thus performing smooth gear shifting.

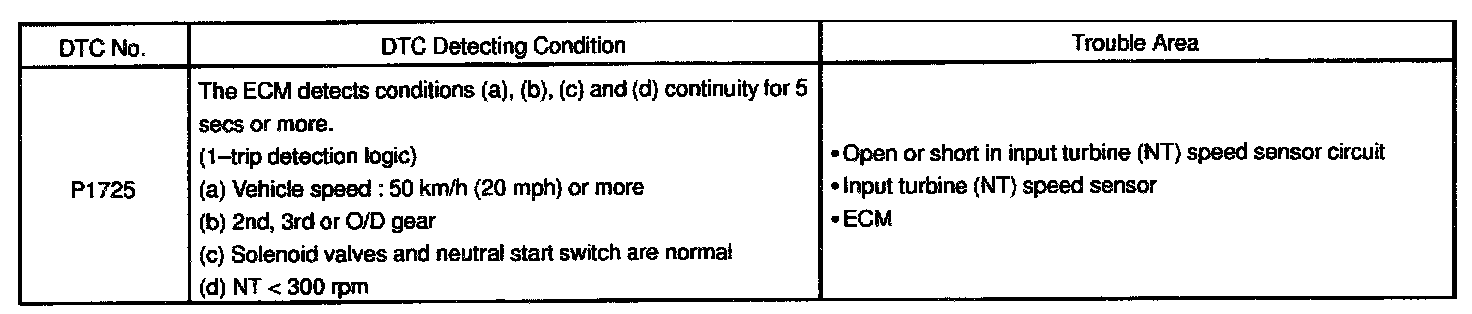

DETECTING CONDITIONS

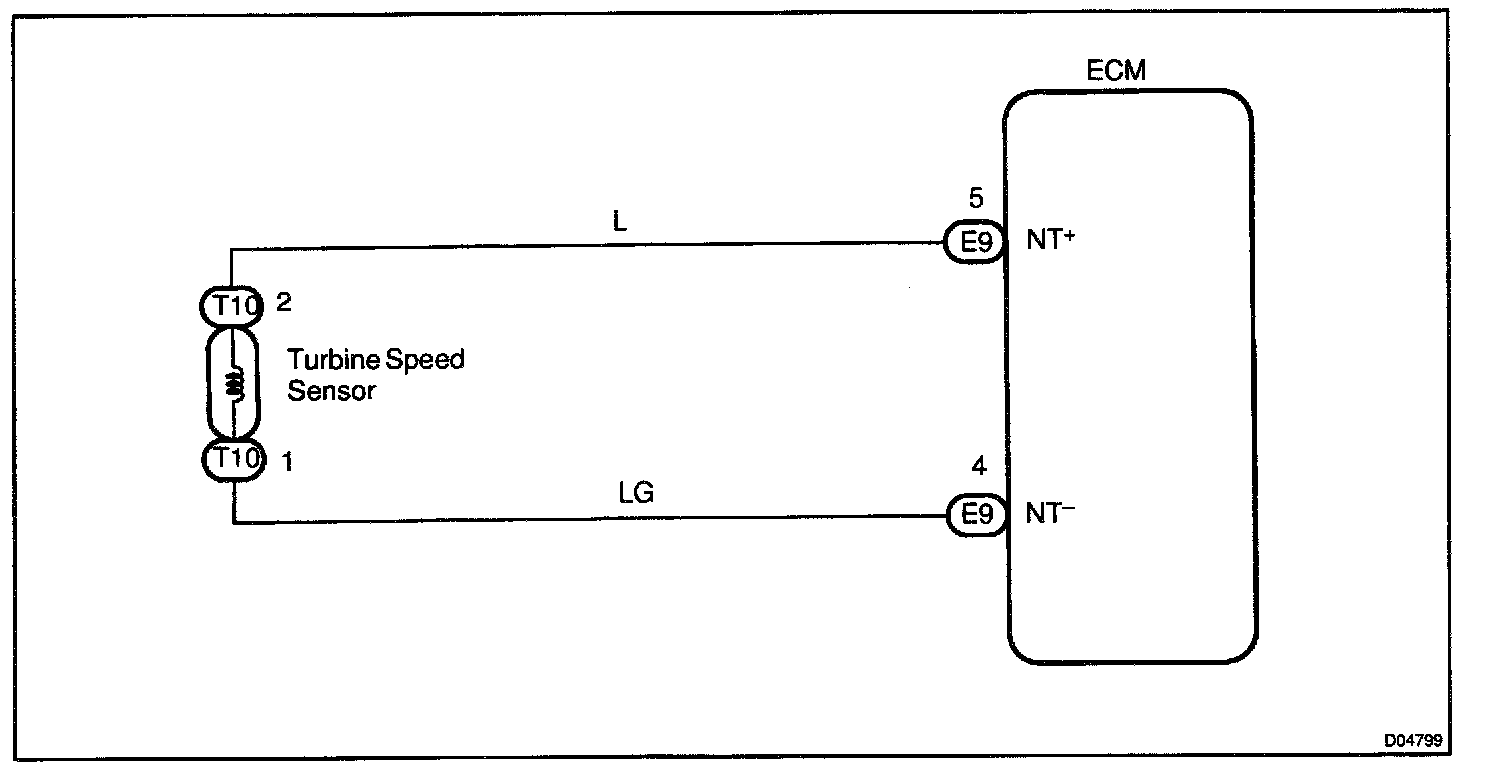

WIRING DIAGRAM

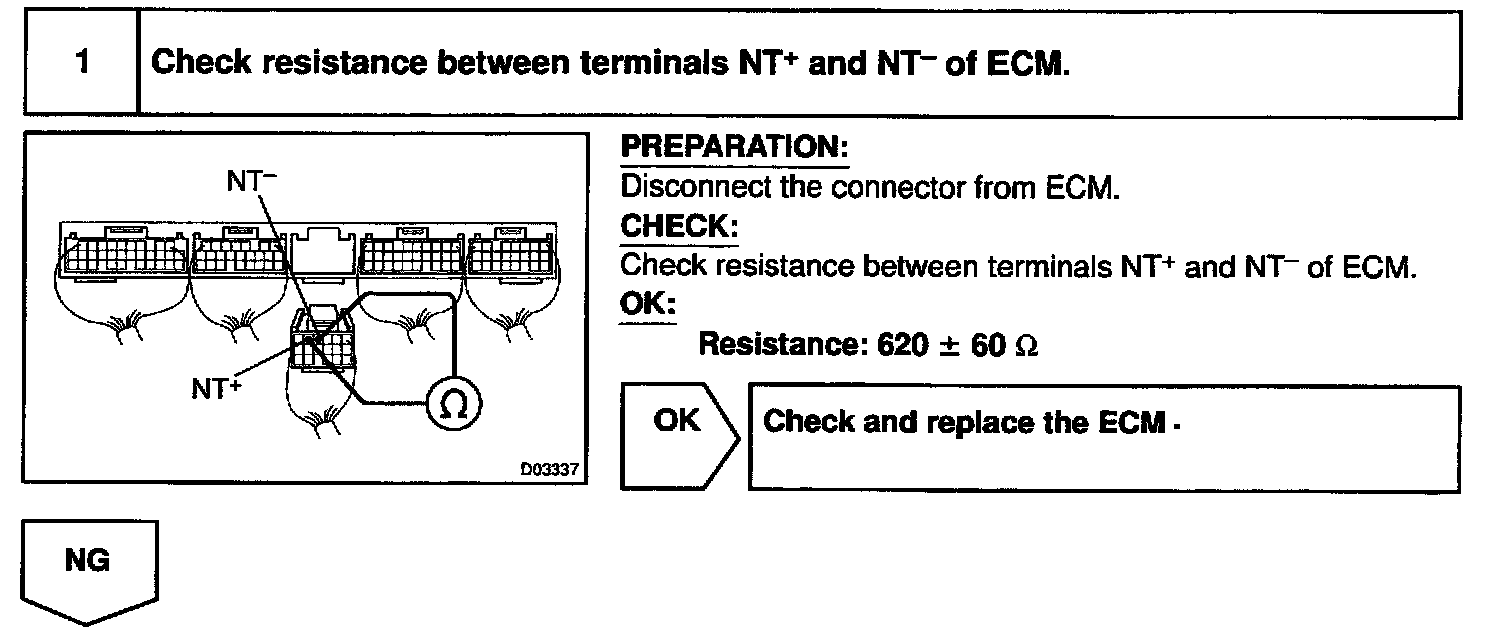

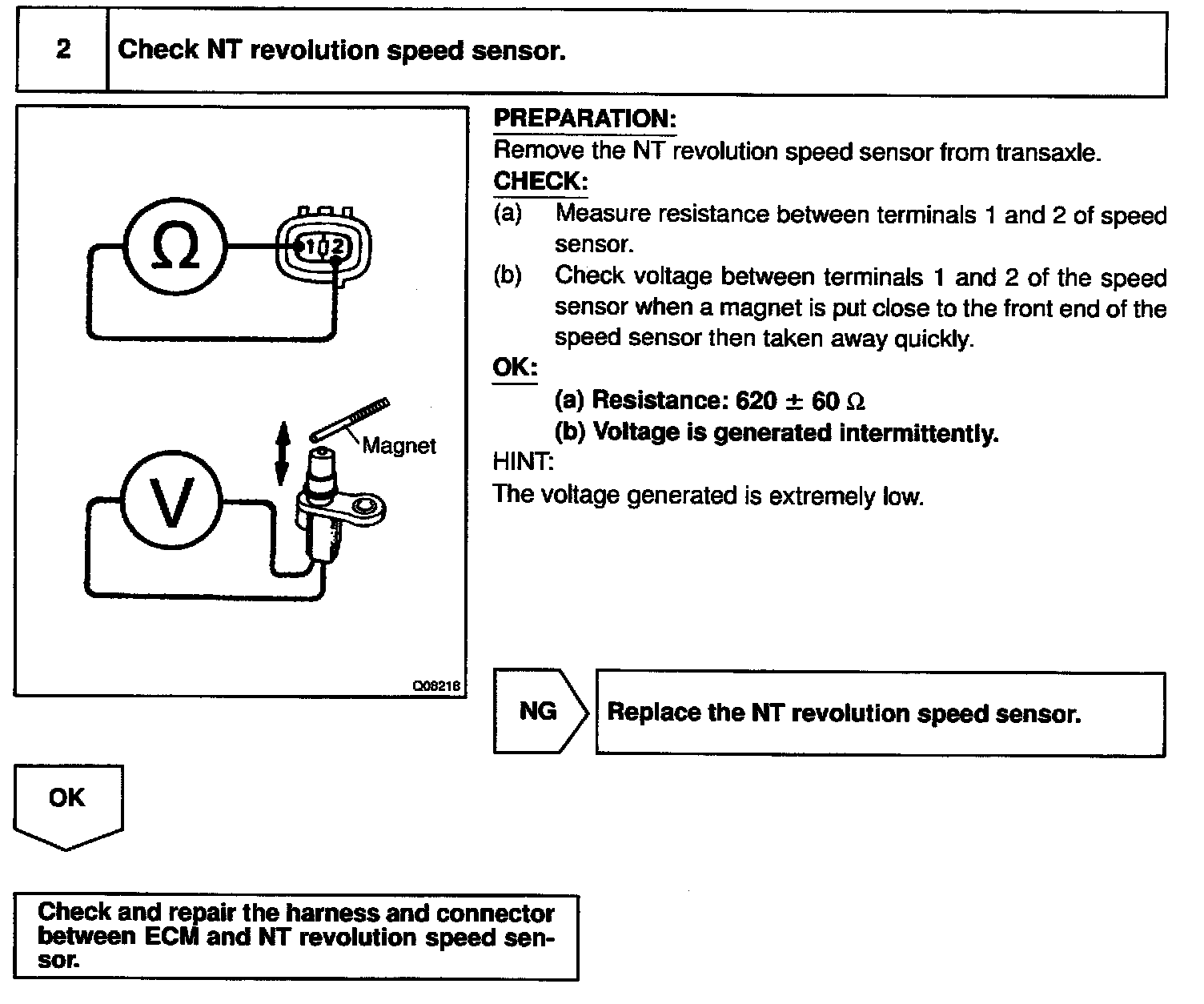

INSPECTION PROCEDURE
