P1351

DTC P1351 VVT SENSOR/CAMSHAFT POSITION SENSOR CIRCUIT RANGE/PERFORMANCE PROBLEM (BANK 2)


CIRCUIT DESCRIPTION
VVT sensor (VV signal) consists of a magnet, iron core and pickup coil.
The VV signal plate has 3 teeth on its outer circumference and is installed the camshaft timing gear. When the camshafts rotate, the protrusion on the signal plate and the air gap on the pickup coil change, causing fluctuations in the magnetic field and generating an electromotive force in the pickup coil.
The actual camshaft angle is detected by the VVT sensor and it provides feedback to the ECM to control the intake valve timing in response to during condition.




DETECTING CONDITIONS




WIRING DIAGRAM

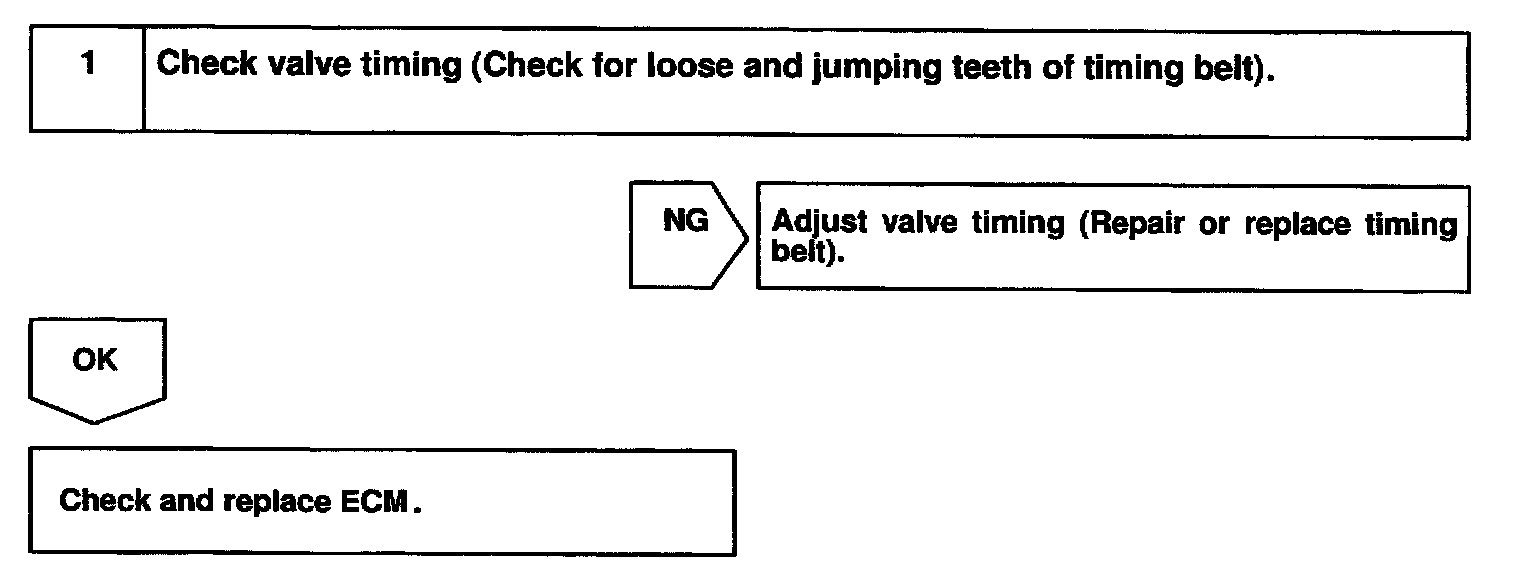

INSPECTION PROCEDURE

HINT: Read freeze frame data using LEXUS hand-held tester or OBD II scan tool. Because freeze frame records the engine conditions when the malfunction is detected. When troubleshooting, it is useful for determining whether the vehicle was running or stopped, the engine was warmed up or not, the air-fuel ratio was lean or rich, etc. at the time of the malfunction.
