Troubleshooting

DTC P0710 TRANSMISSION FLUID TEMPERATURE SENSOR MALFUNCTION

CIRCUIT DESCRIPTION
The ATF temperature sensor converts fluid temperature into a resistance value which is input into the ECM.

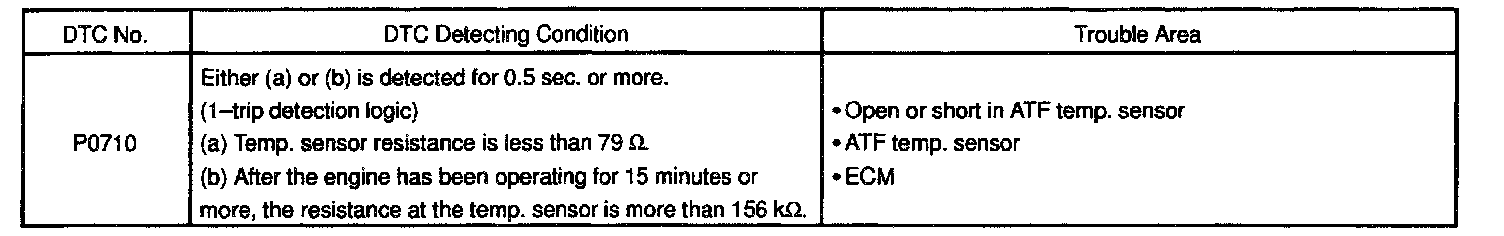

DETECTING CONDITIONS

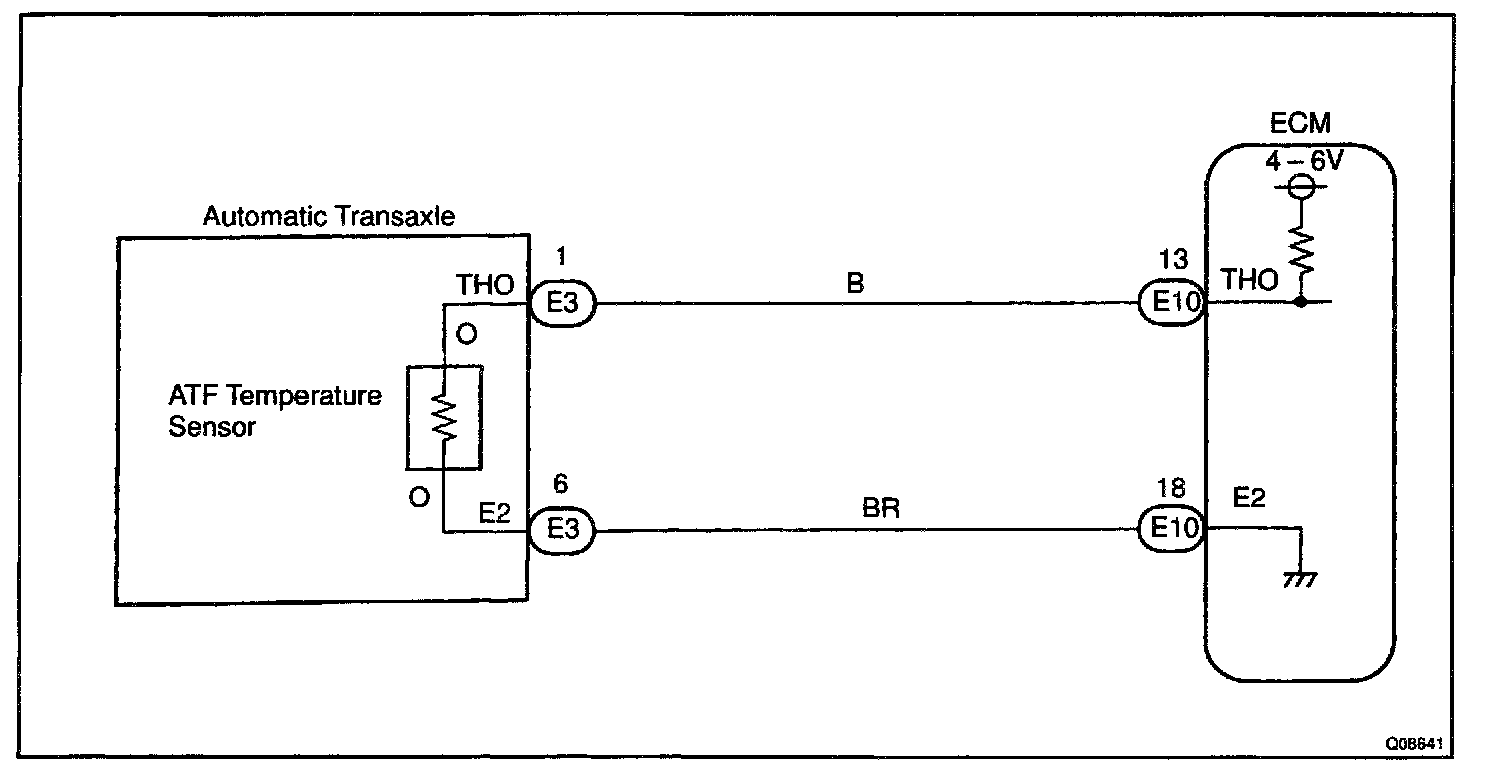

WIRING DIAGRAM

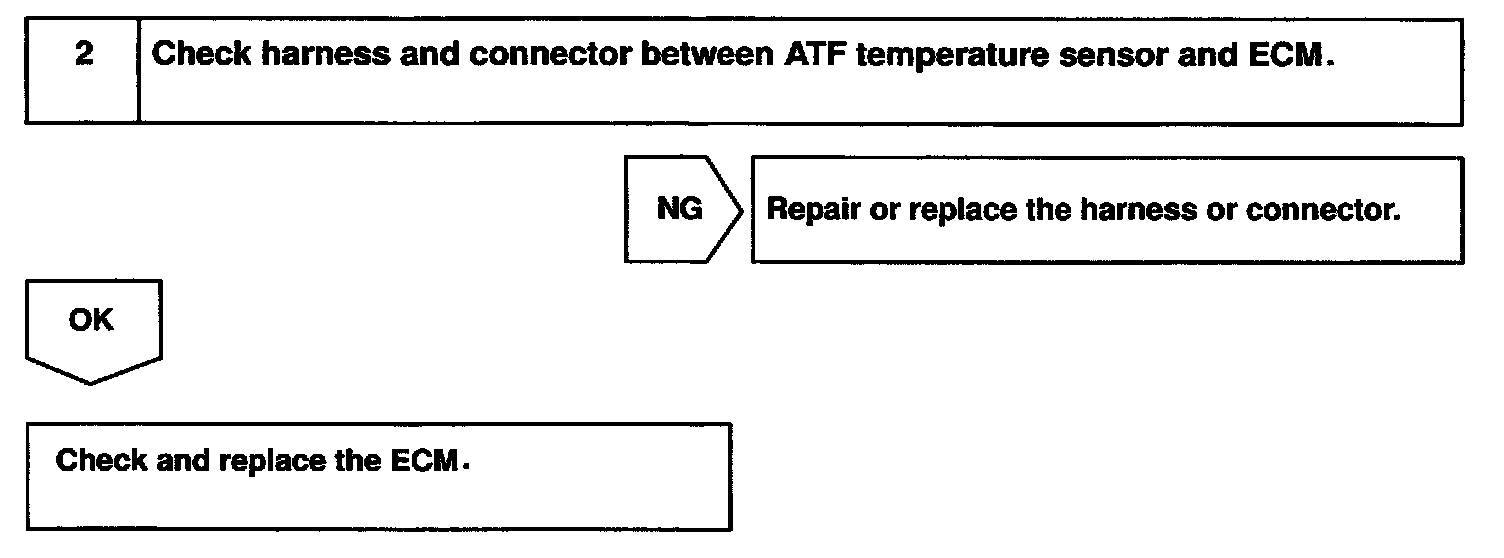

INSPECTION PROCEDURE
