Troubleshooting

DTC P0128 THERMOSTAT MALFUNCTION



CIRCUIT DESCRIPTION
If the water temperature becomes 75 °C (167 °F) or more, it is abnormal.
If not due to the thermostat malfunction, it is abnormal.

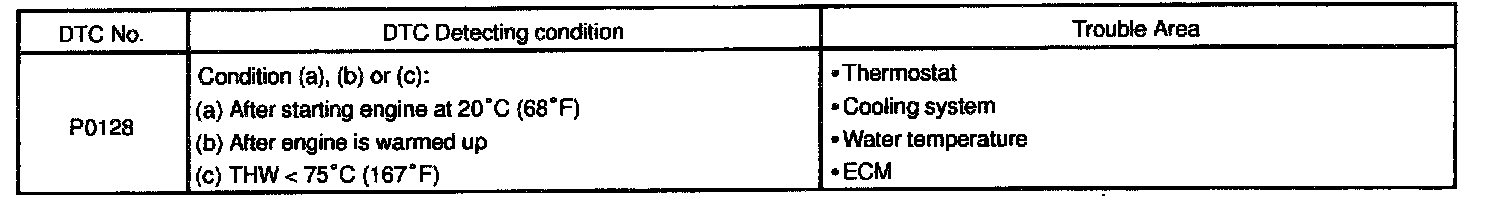

DETECTING CONDITIONS

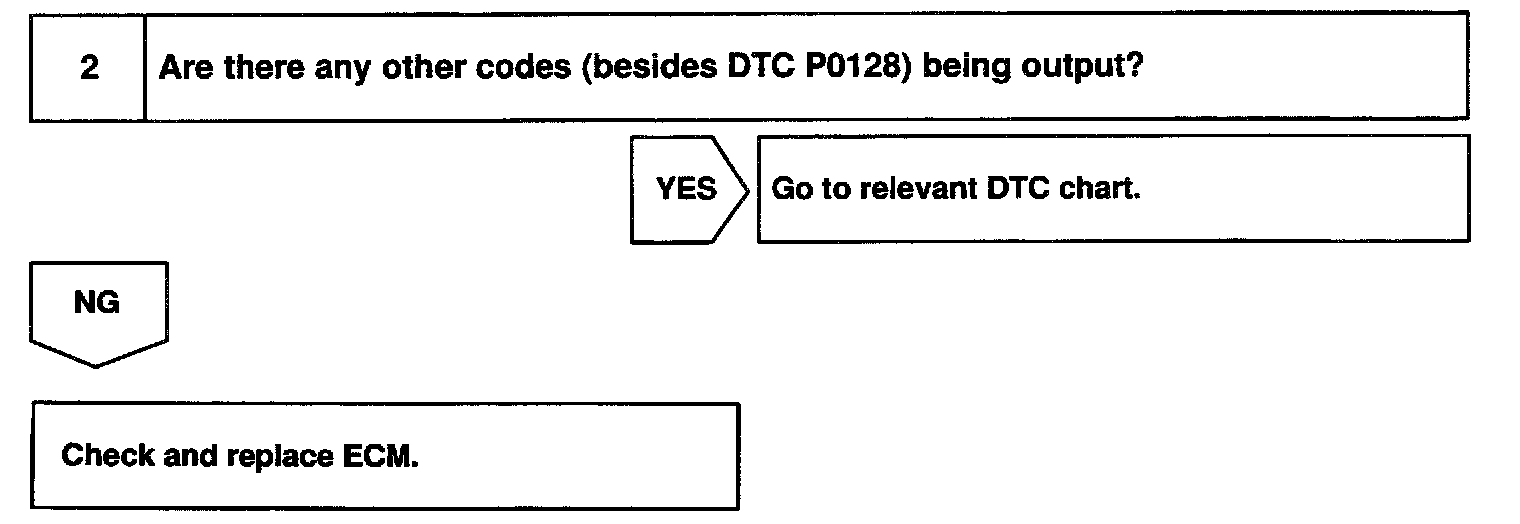

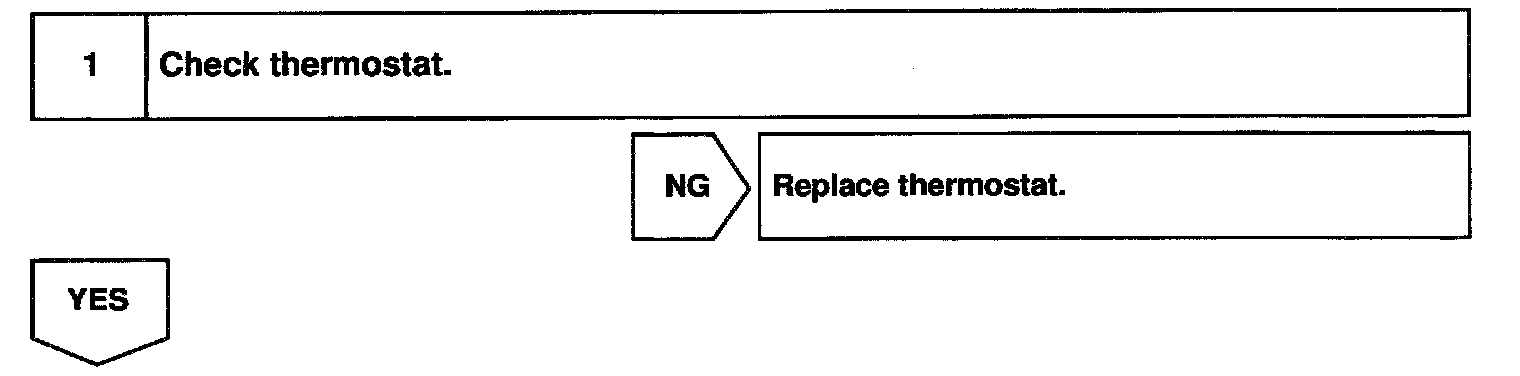

INSPECTION PROCEDURE

HINT: Read freeze frame data using LEXUS hand-held tester or OBD II scan tool. Because freeze frame records the engine conditions when the malfunction is detected. When troubleshooting, it is useful for determining whether the vehicle was running or stopped, the engine was warmed up or not, the air-fuel ratio was lean or rich, etc. at the time of the malfunction.
