DTC 34

CIRCUIT DESCRIPTION

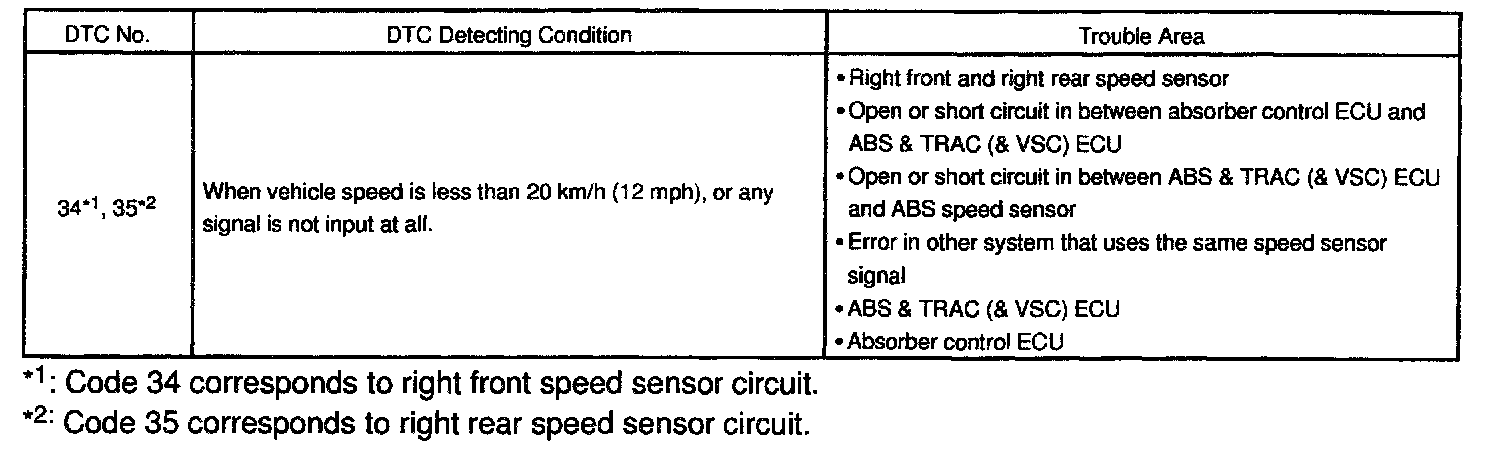

DETECTING CONDITIONS

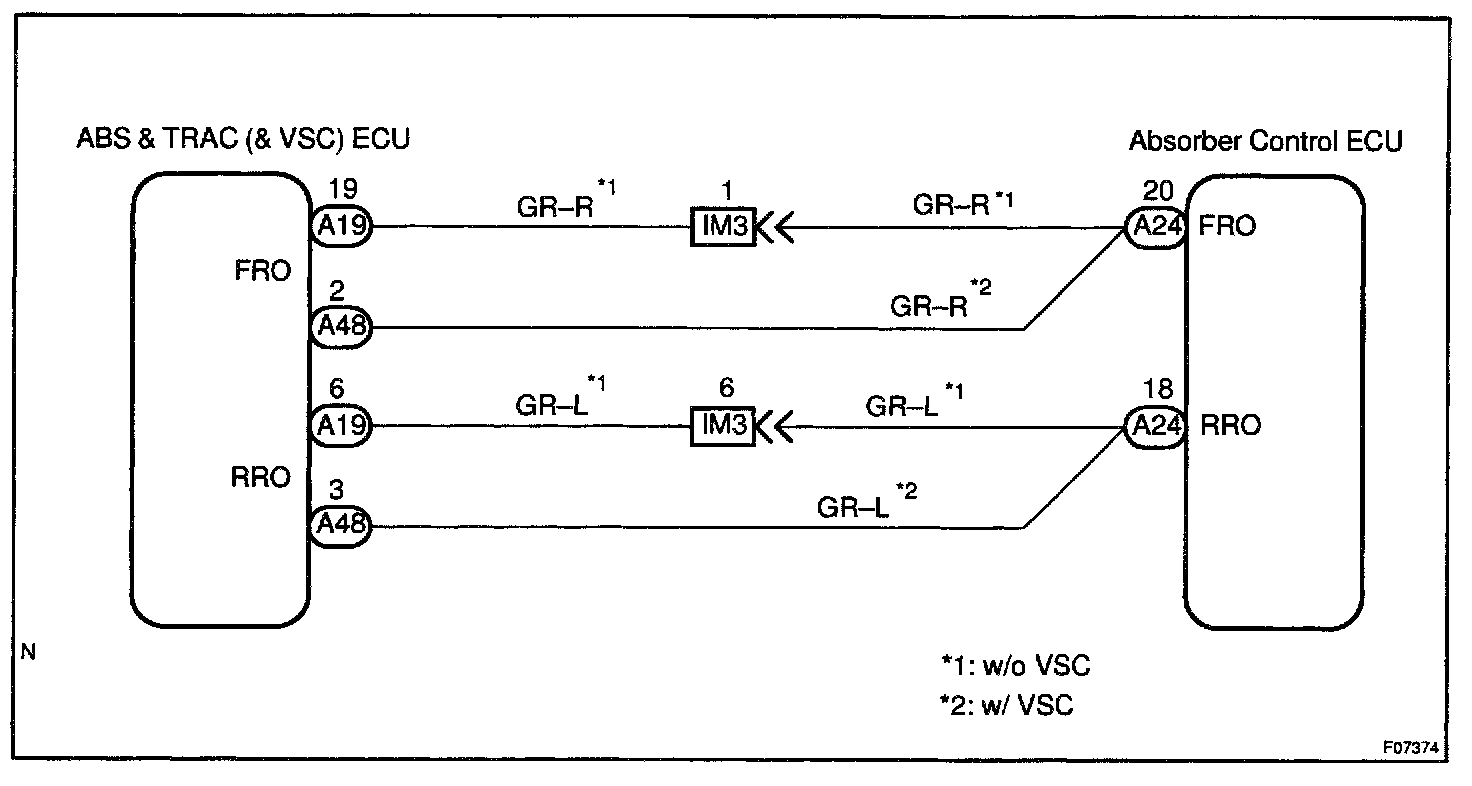

WIRING DIAGRAM

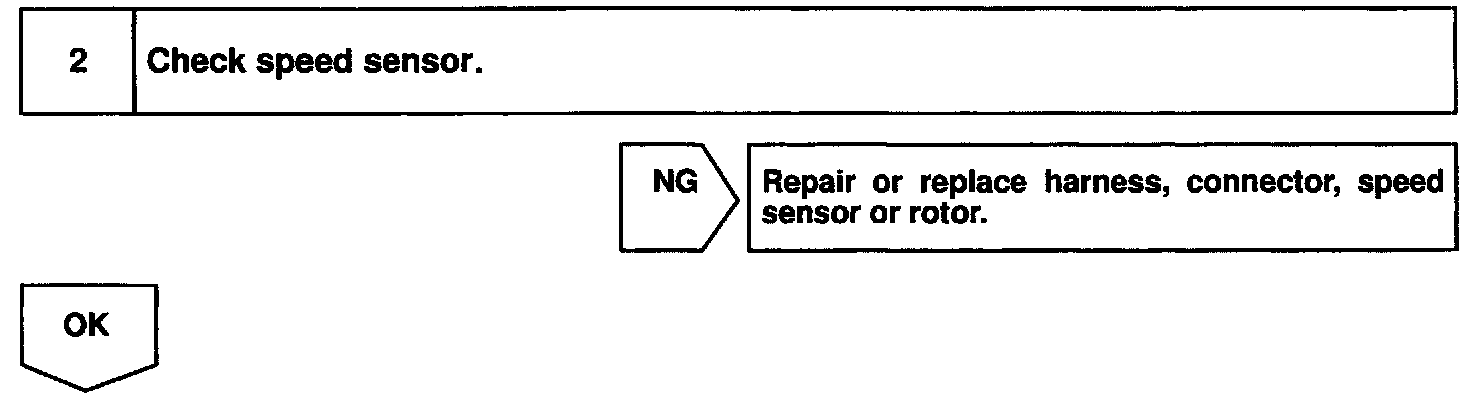

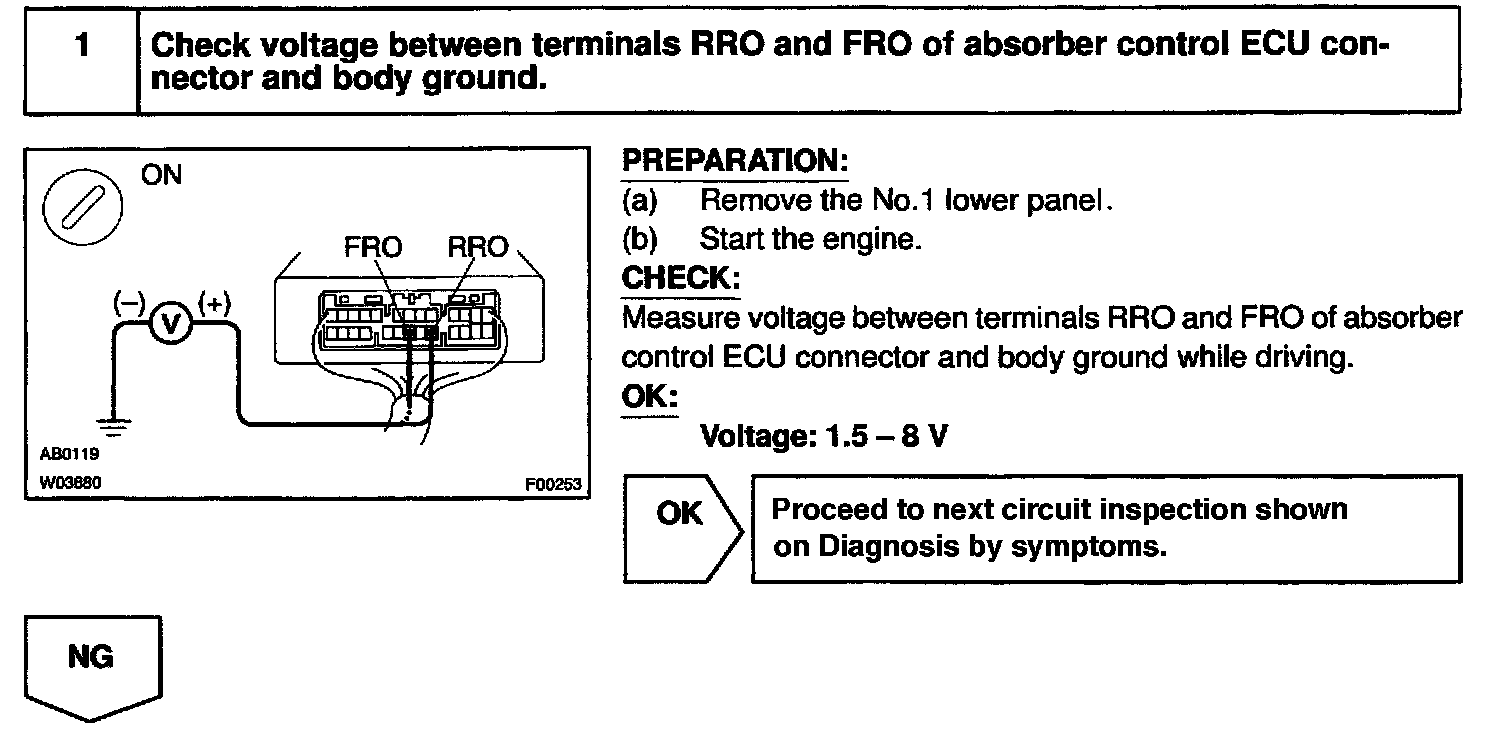

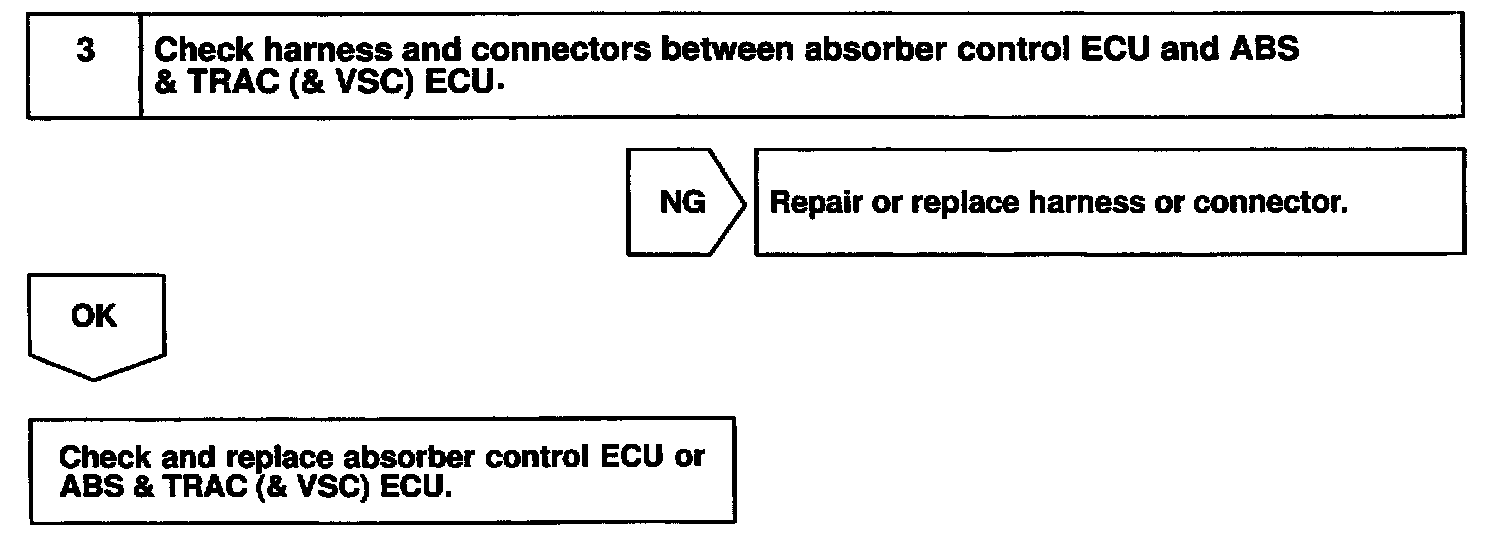

INSPECTION PROCEDURE

HINT:
- When DTC "34" is displayed, check the right front speed sensor circuit.
- When DTC "35" is displayed, check the right rear speed sensor circuit.
