Radio, Stereo, and Compact Disc

Code No. (Physical address) List:

DIAGNOSIS CODE LIST / Part 1 Of 2:

DIAGNOSIS CODE LIST / Part 2 Of 2:

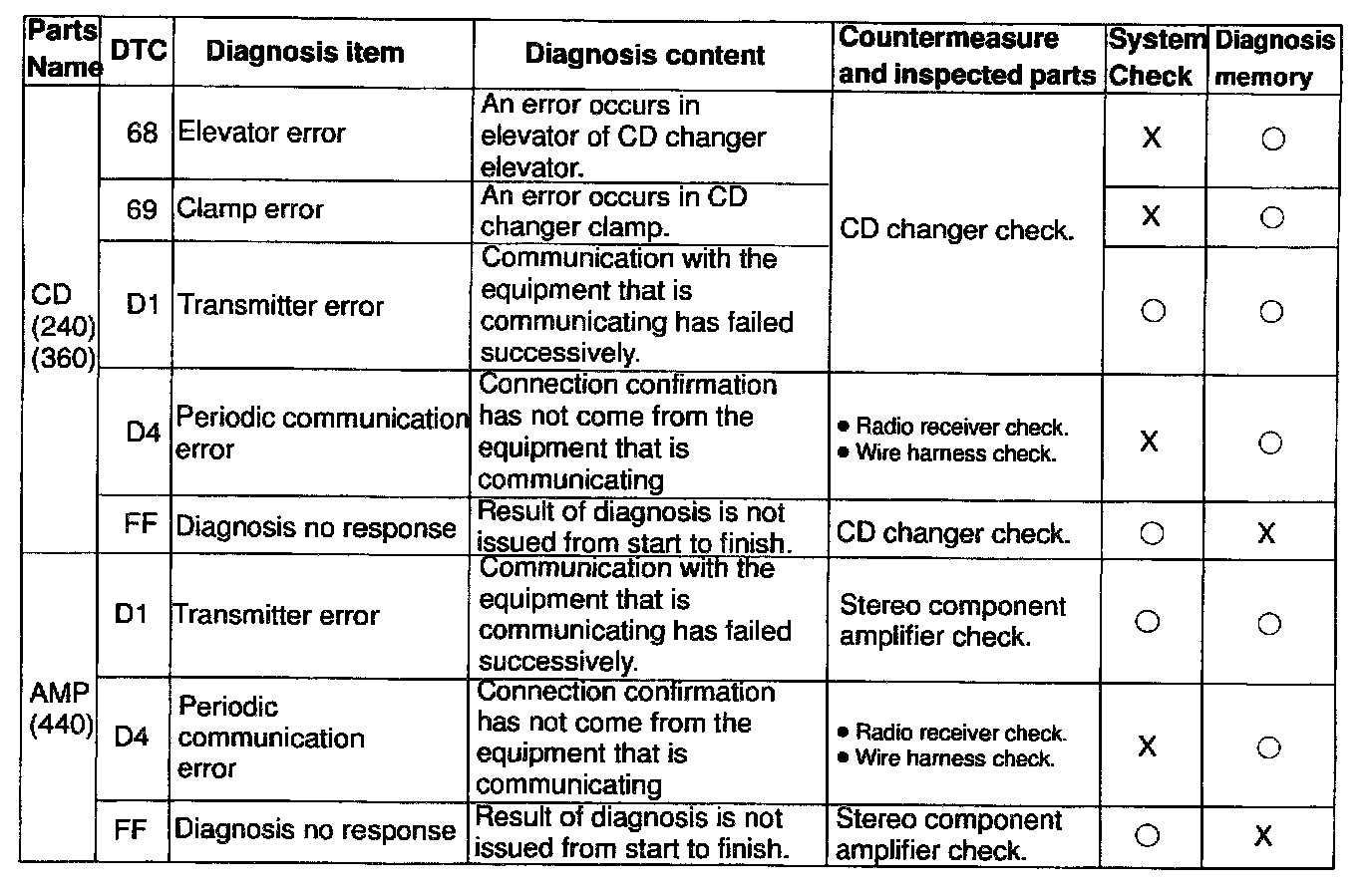

DIAGNOSIS CODE LIST
* If there is "0" in the column of system check, an error can be detected when the mode is switched to the system check mode.
* If there is "0" in the column of diagnosis mode each unit is monitoring whether or not it has failure. In case of detecting failure, it memorizes DTC.
