ABS & Traction Control Diagnosis System

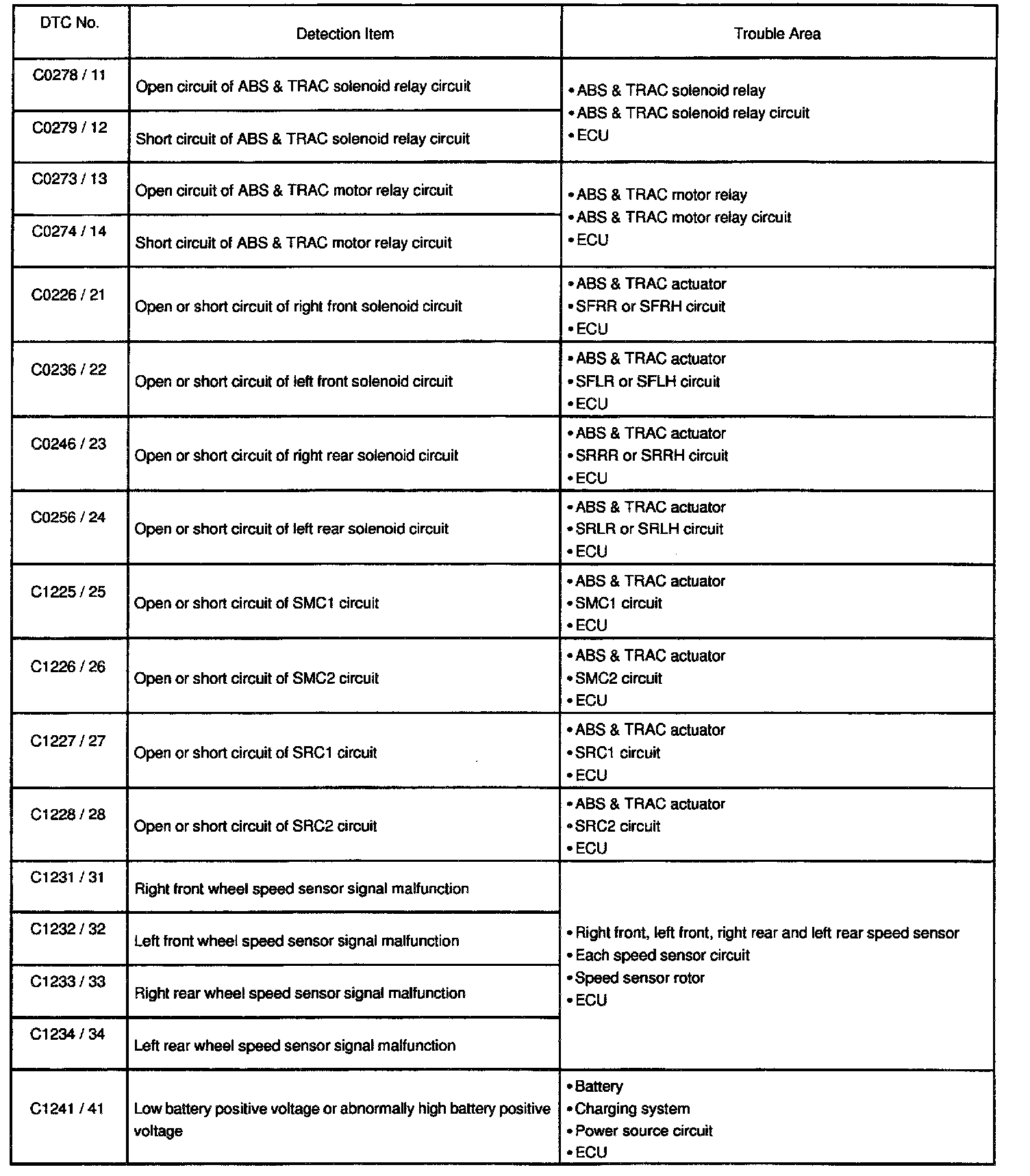

Part 1 Of 2 (C0278/11-C1241/41):

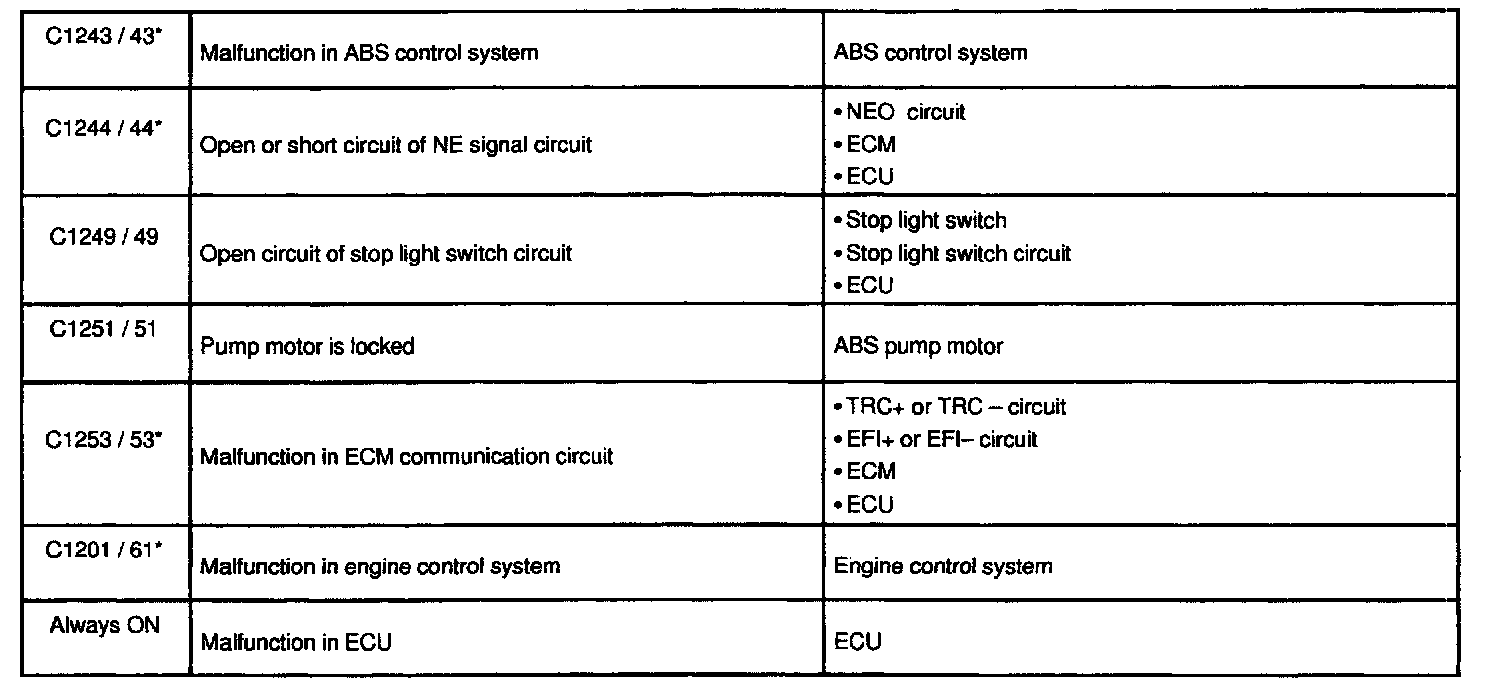

Part 2 Of 2 (C1243/43-C1201/61):

HINT:
- Using SST 09843-18020, connect the terminals Tc and E1, and remove the short pin.
- If a malfunction code is displayed during the DTC check, check the circuit listed for the code. For details of each code, refer to the respective "DTC No." under "Trouble Code Diagnostic Procedures".

*: When the TRAC OFF indicator light lights up or flashes, a malfunction occurs. The code is displayed by flashing of the TRAC OFF indicator light.
