ABS W/Traction Control (TRAC)

CIRCUIT DESCRIPTION




DETECTING CONDITIONS

Fail safe function:
If any trouble occurs in the ABS & TRAC pump motor, the ECU cuts off current to the ABS & TRAC solenoid relay and prohibits ABS control and TRAC control.

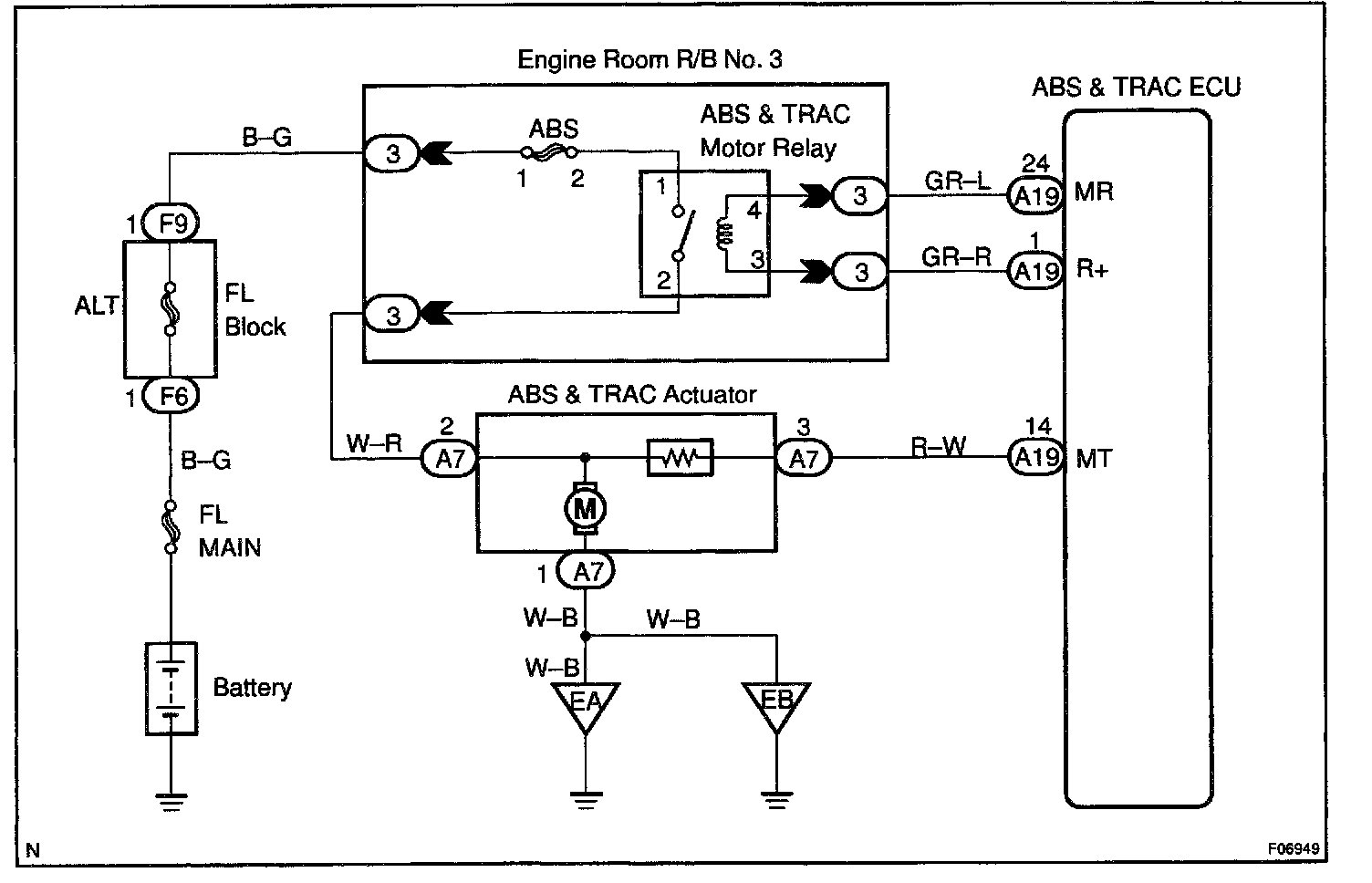

WIRING DIAGRAM

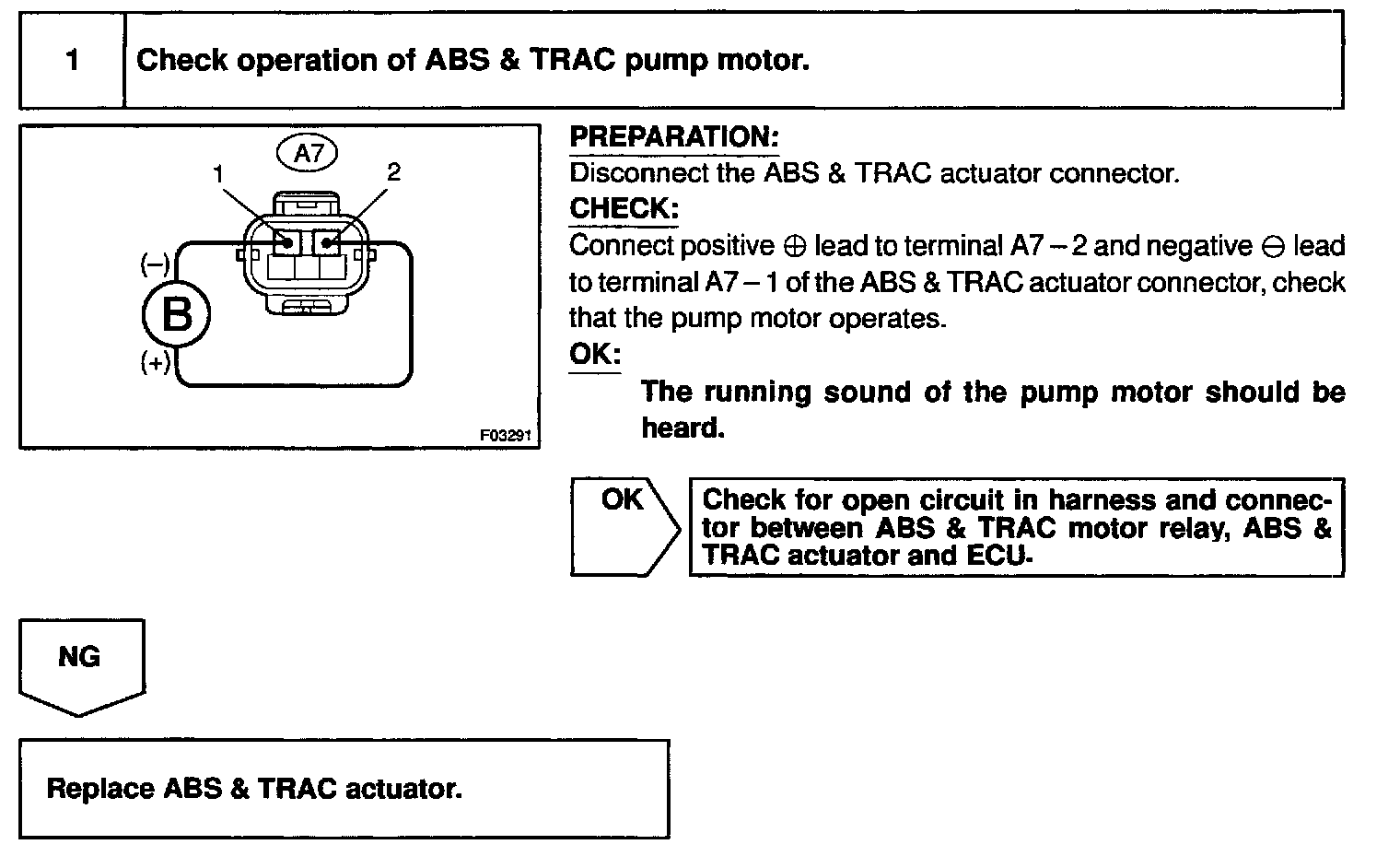

INSPECTION PROCEDURE
