C1224

CIRCUIT DESCRIPTION
The ABS & BA & TRAC & VSC ECU receives engine revolution speed signals (NE signals) from the ECM.

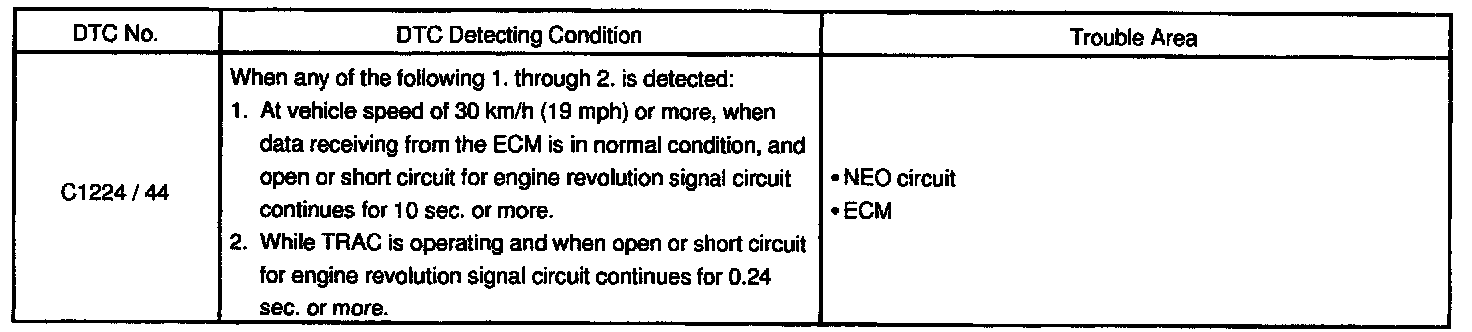

DETECTING CONDITIONS

Fail safe function:
If any trouble occurs in the NE signal circuit, the ECU prohibits BA & TRAC & VSC controls.

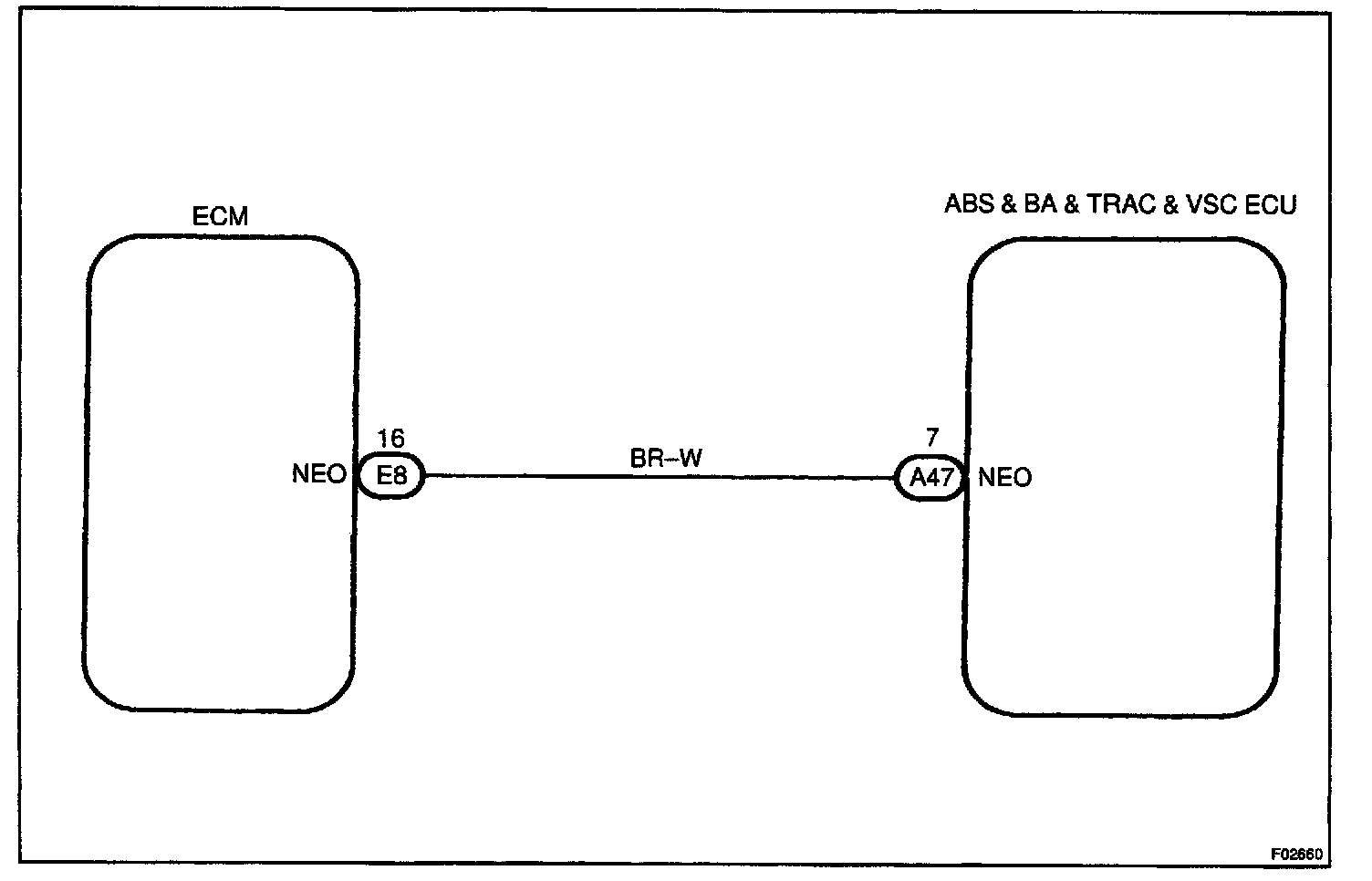

WIRING DIAGRAM

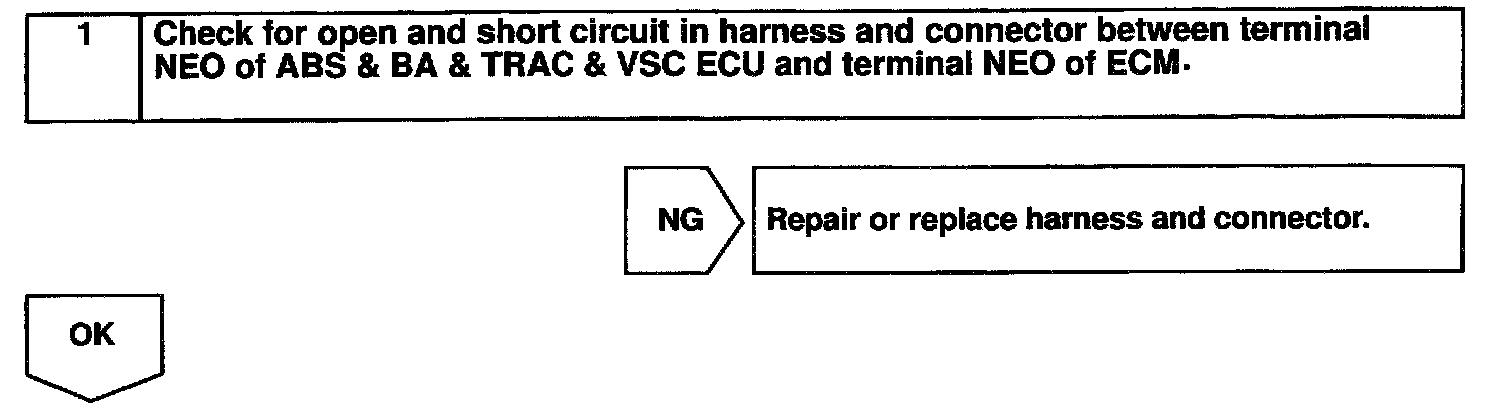

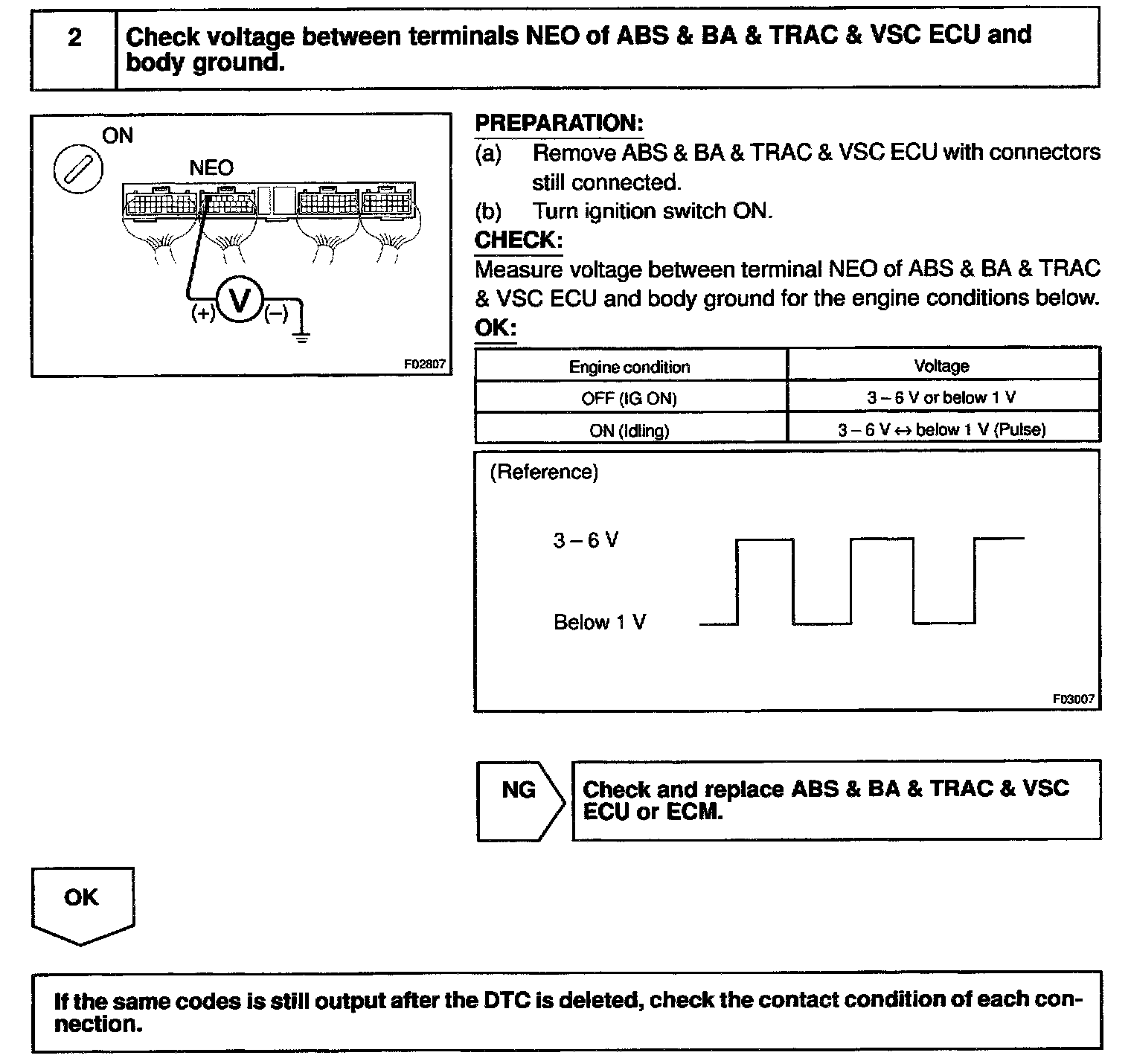

INSPECTION PROCEDURE
