Home >> Lexus >> 2000 >> ES 300 V6-3.0L (1MZ-FE) >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> C Code Charts >> C1201 >> ABS W/Traction Control (TRAC)

ABS W/Traction Control (TRAC)

CIRCUIT DESCRIPTION
If any trouble occurs in the engine control system, the ECU prohibits TRAC control.

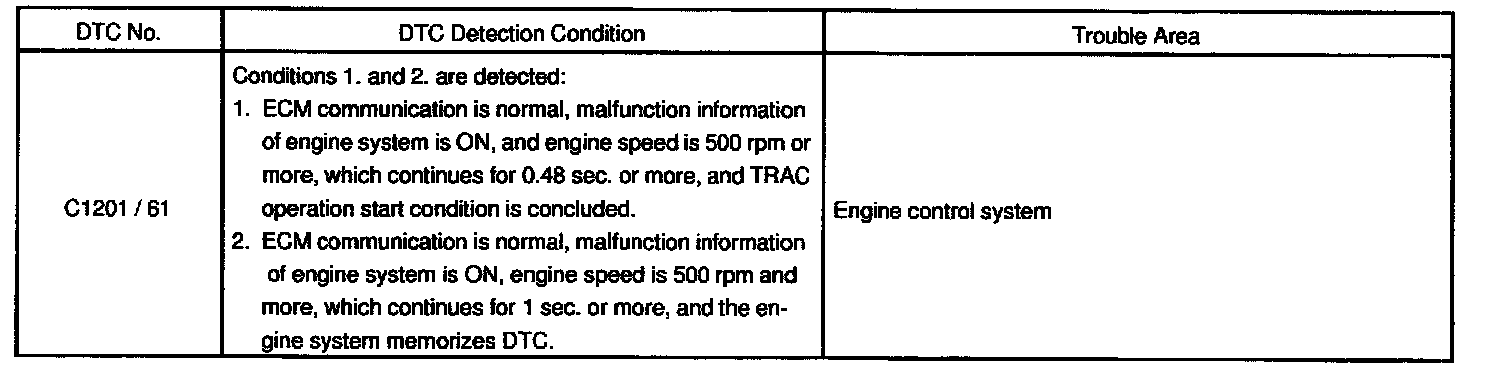

DETECTING CONDITIONS

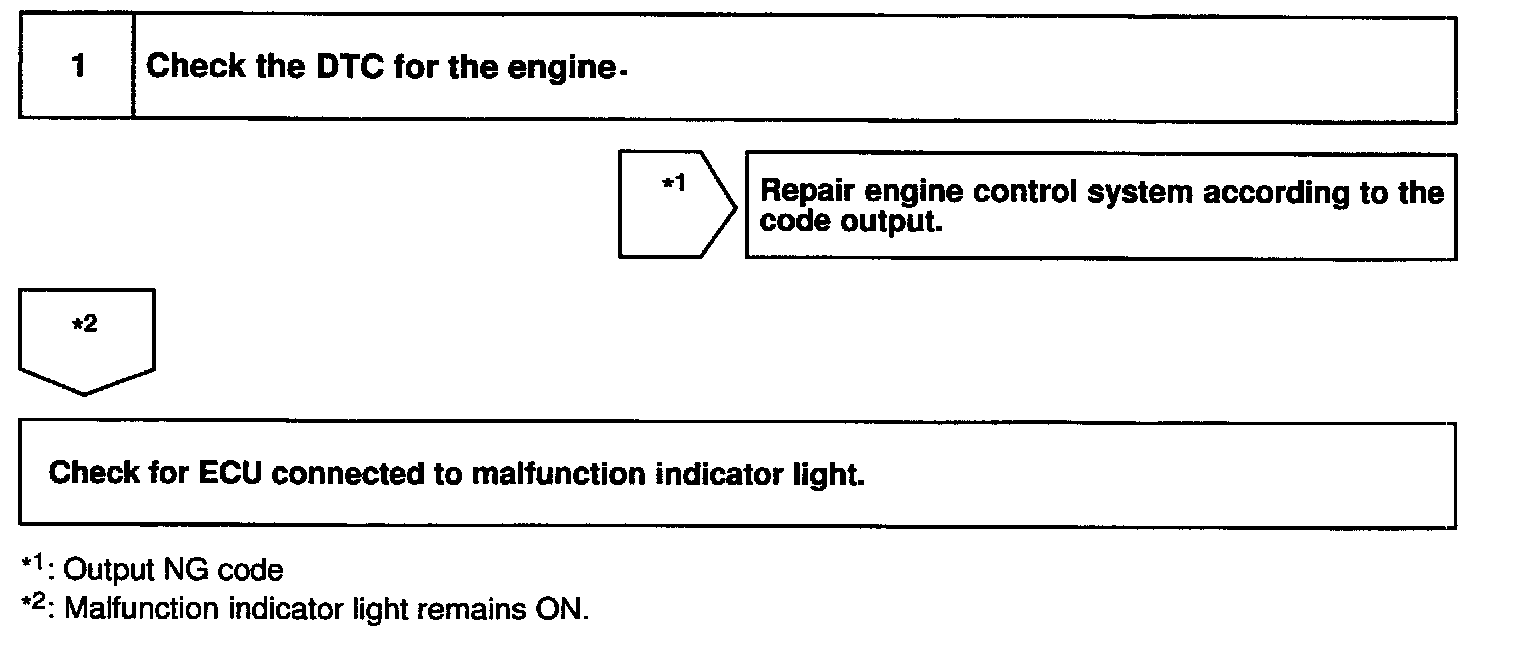

INSPECTION PROCEDURE
