B2796

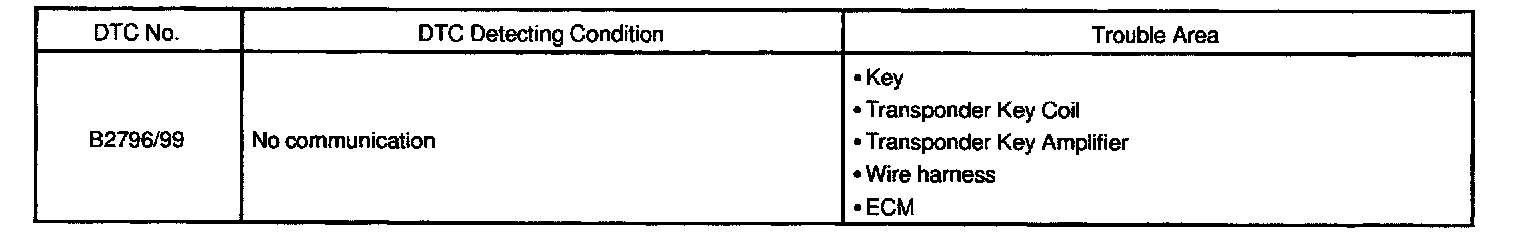

Detection Condition:




CIRCUIT DESCRIPTION

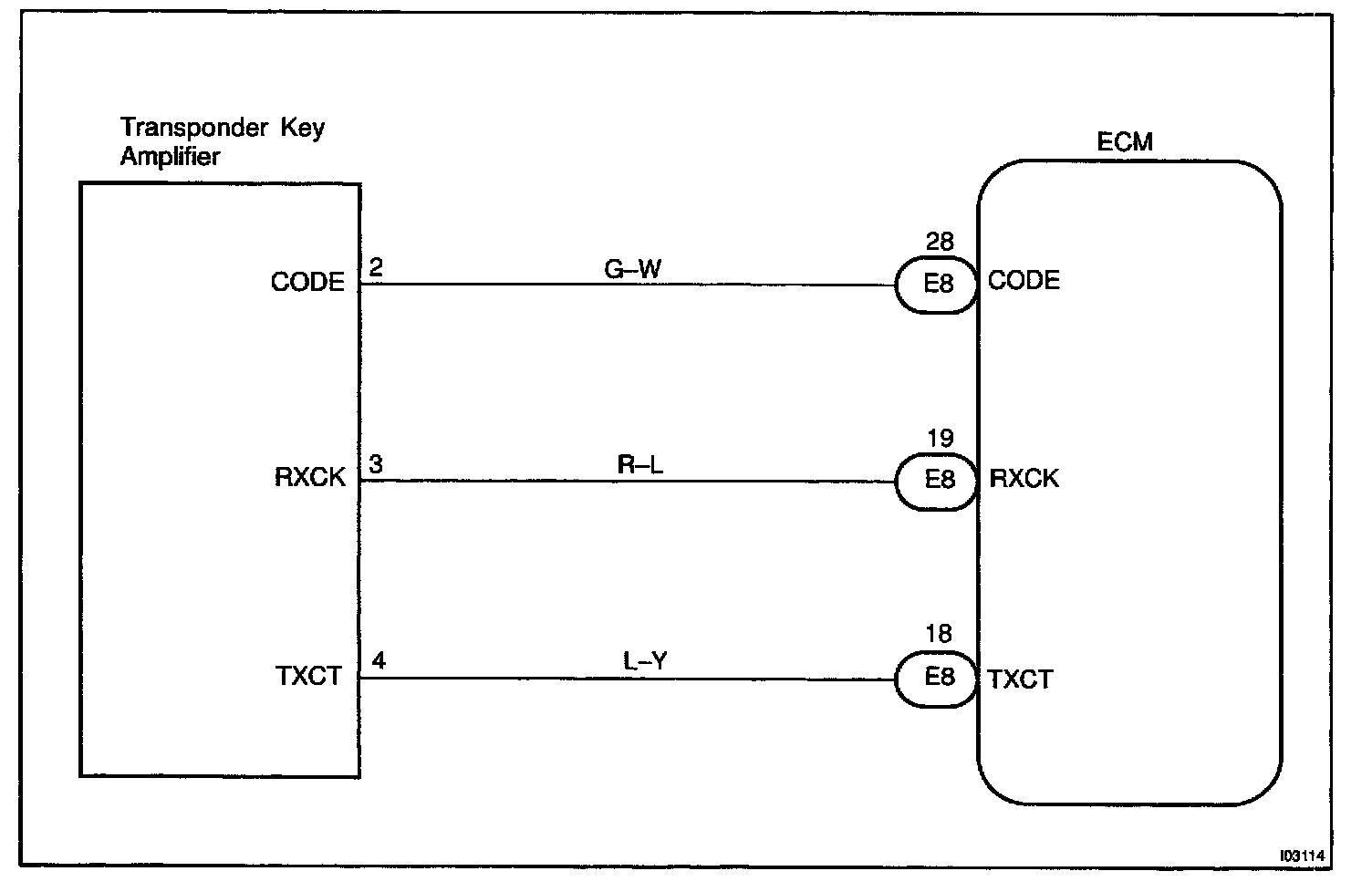

Wiring Diagram:

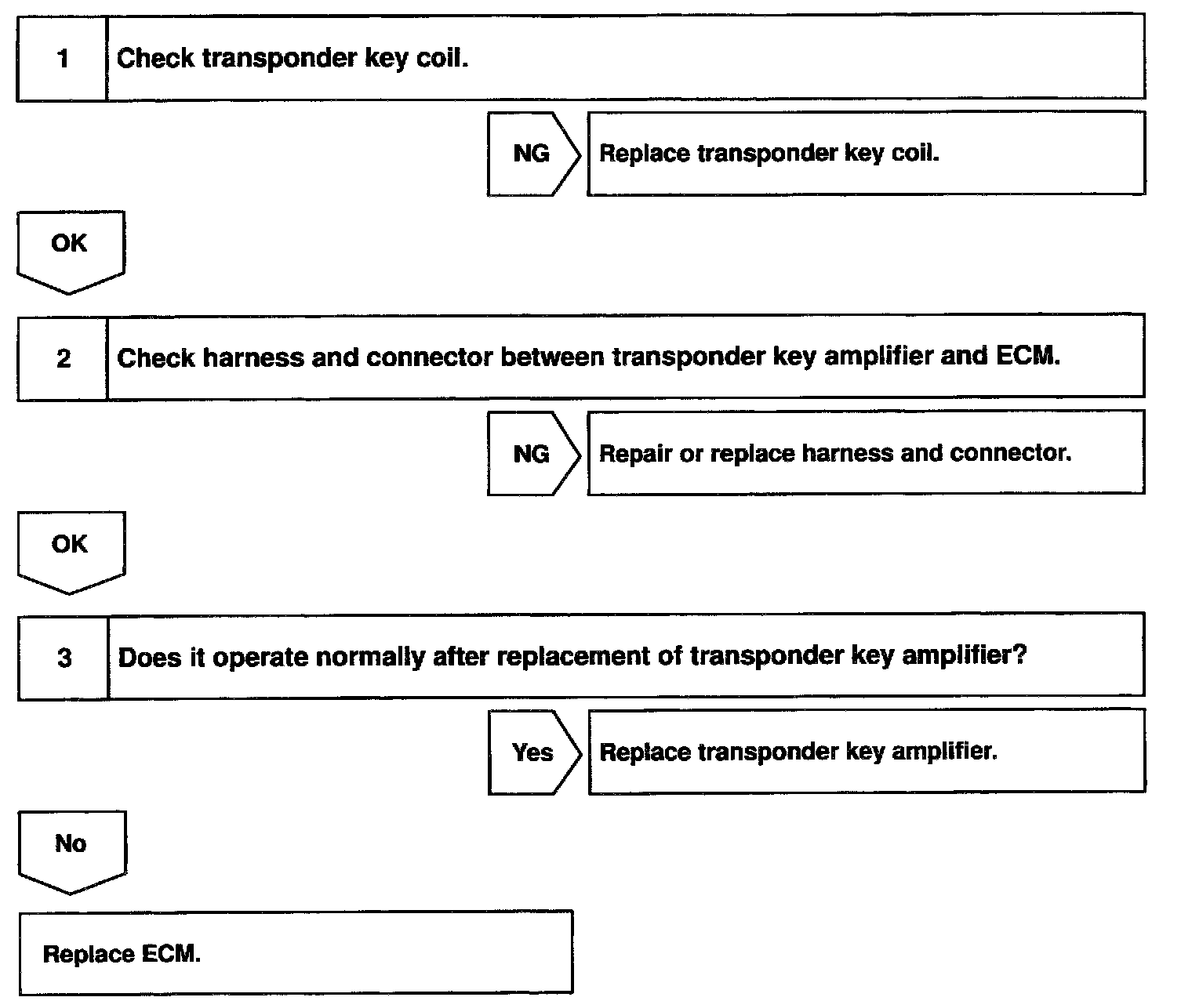

Steps 1 - 3:




INSPECTION PROCEDURE
