Windshield Washer Spray Nozzle: Testing and Inspection

FRONT WIPER AND WASHER




INSPECT FRONT WASHER NOZZLE

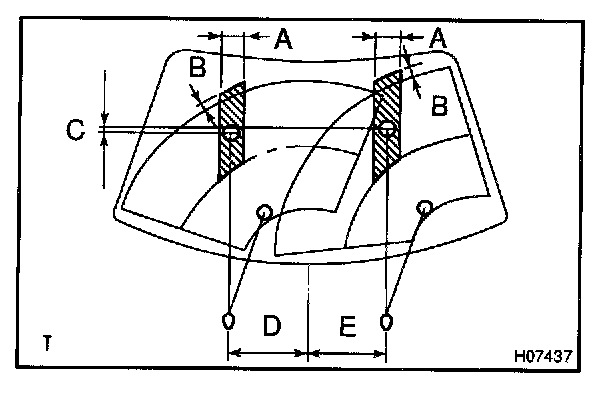

a. While operating the washer, check whether the upper point where the washer fluid hits the windshield and the surge area are within the range indicated by the hatched line.

A: Approx. 200 mm (7.87 in.)
B: Approx. 50 mm (1.97 in.)
C: 0 - 100 mm (0 - 3.94 in.)
D: Approx. 360 mm (14.17 in.)
E: Approx. 260 mm (10.24 in.)

b. Check if the lower point where the washer fluid hits the windshield is within the range of the wiping pattern (the area of the glass which is wiped by the wiper blades).
