Washer Fluid Level Indicator: Testing and Inspection

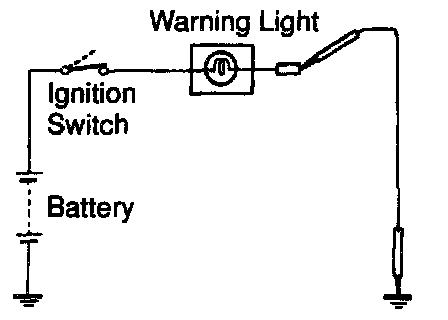

INSPECT WINDOW WASHER LEVEL WARNING LIGHT
a. Disconnect the connector from the warning switch a ground terminal on the wire harness side connector
b. Turn the ignition switch ON, check that the warning light lights up.
If the warning light does not light up, test the bulb or inspect wire harness.
