Symptom Related Diagnostic Procedures
PROBLEM SYMPTOMS TABLEHINT: If a normal code is displayed during the DTC check but the trouble still occurs, check the circuits for each symptom in the order given in the charts.
The Matrix Chart is divided into 3 chapters.
- If the instruction "Proceed to next circuit inspection shown in Diagnosis By Symptom" chart is given in the flow chart for each circuit, proceed to the circuit with the next highest number in the table to continue the check.
- If the trouble still occurs even though there are no abnormalities in any of the other circuits, then check and replace the ECM.

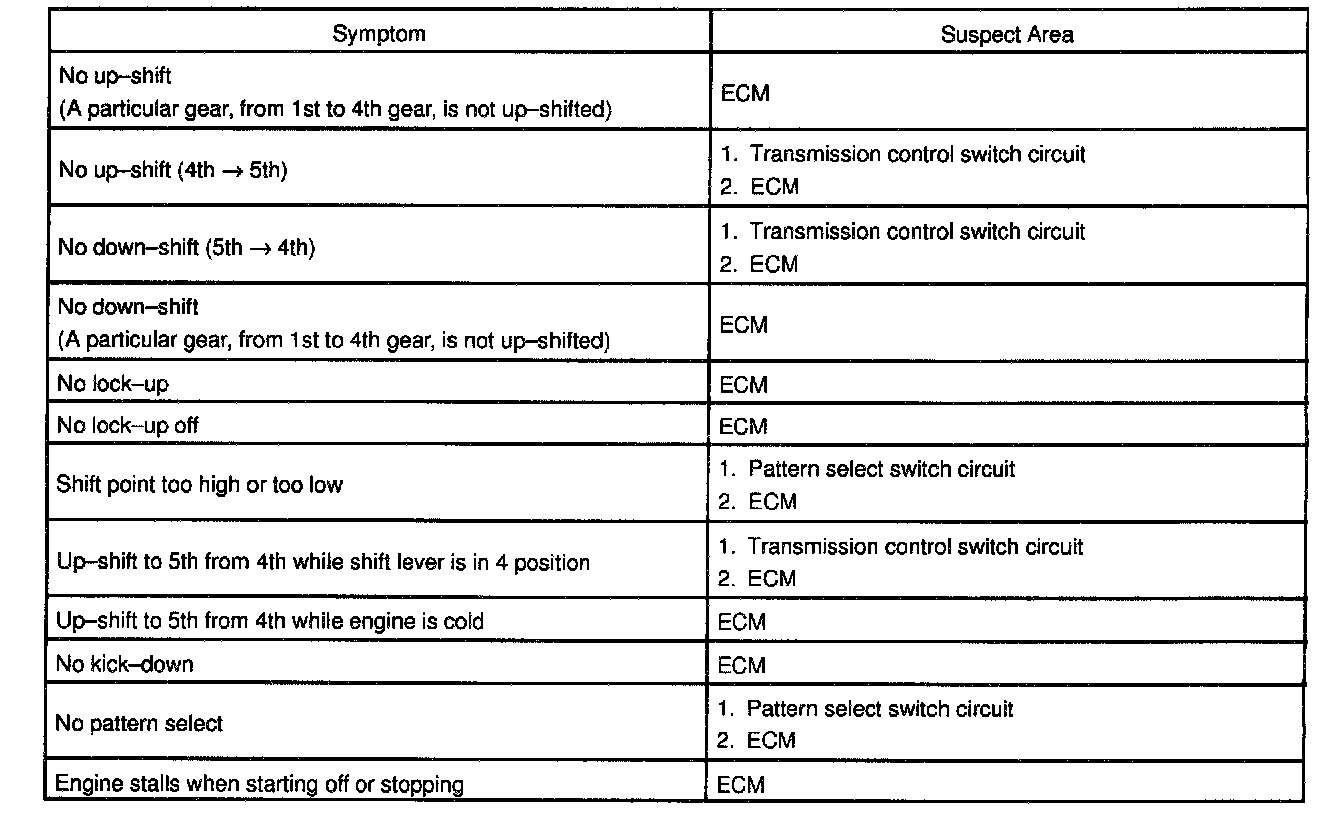

1. CHART 1: ELECTRONIC CIRCUIT MATRIX CHART

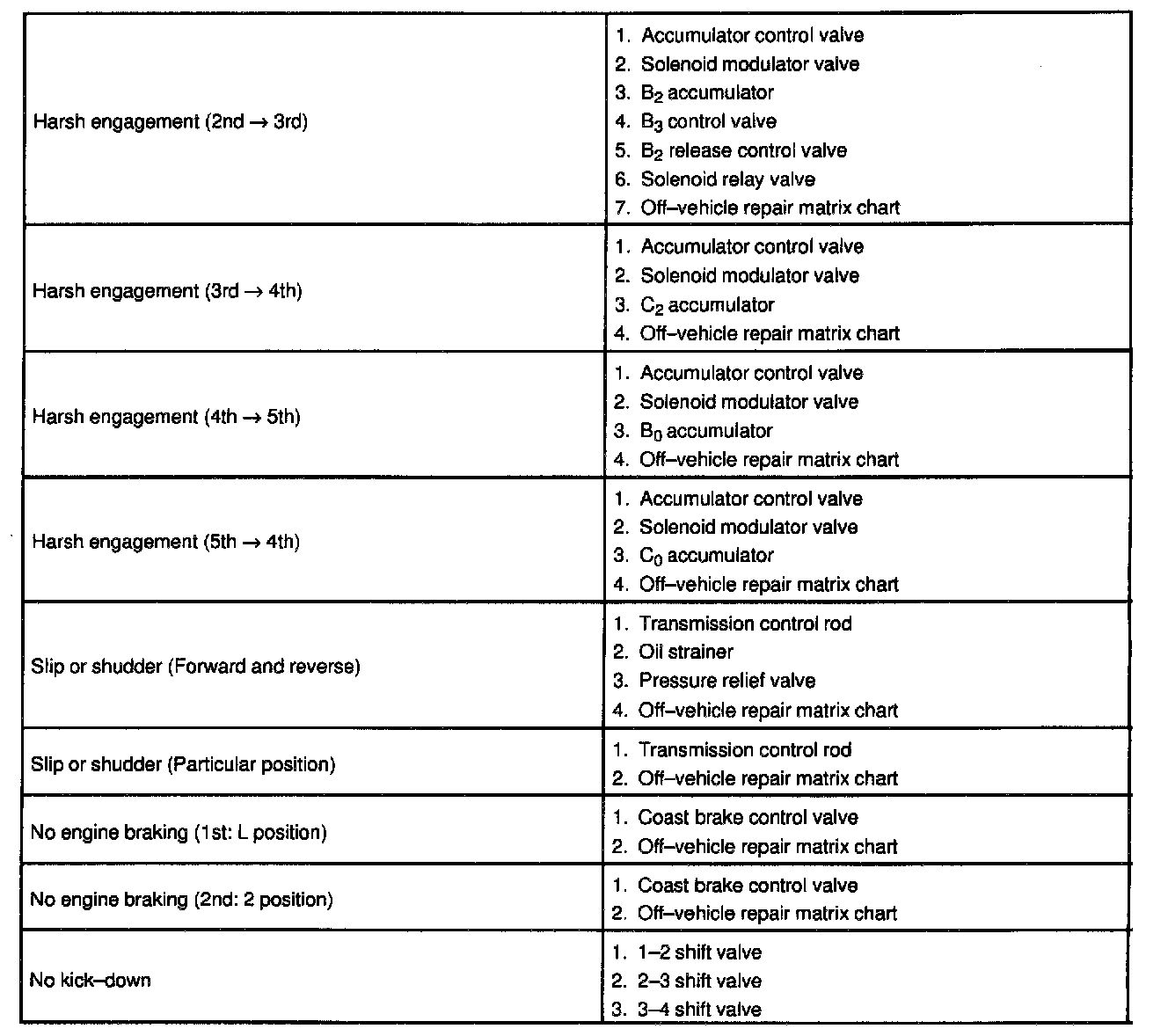

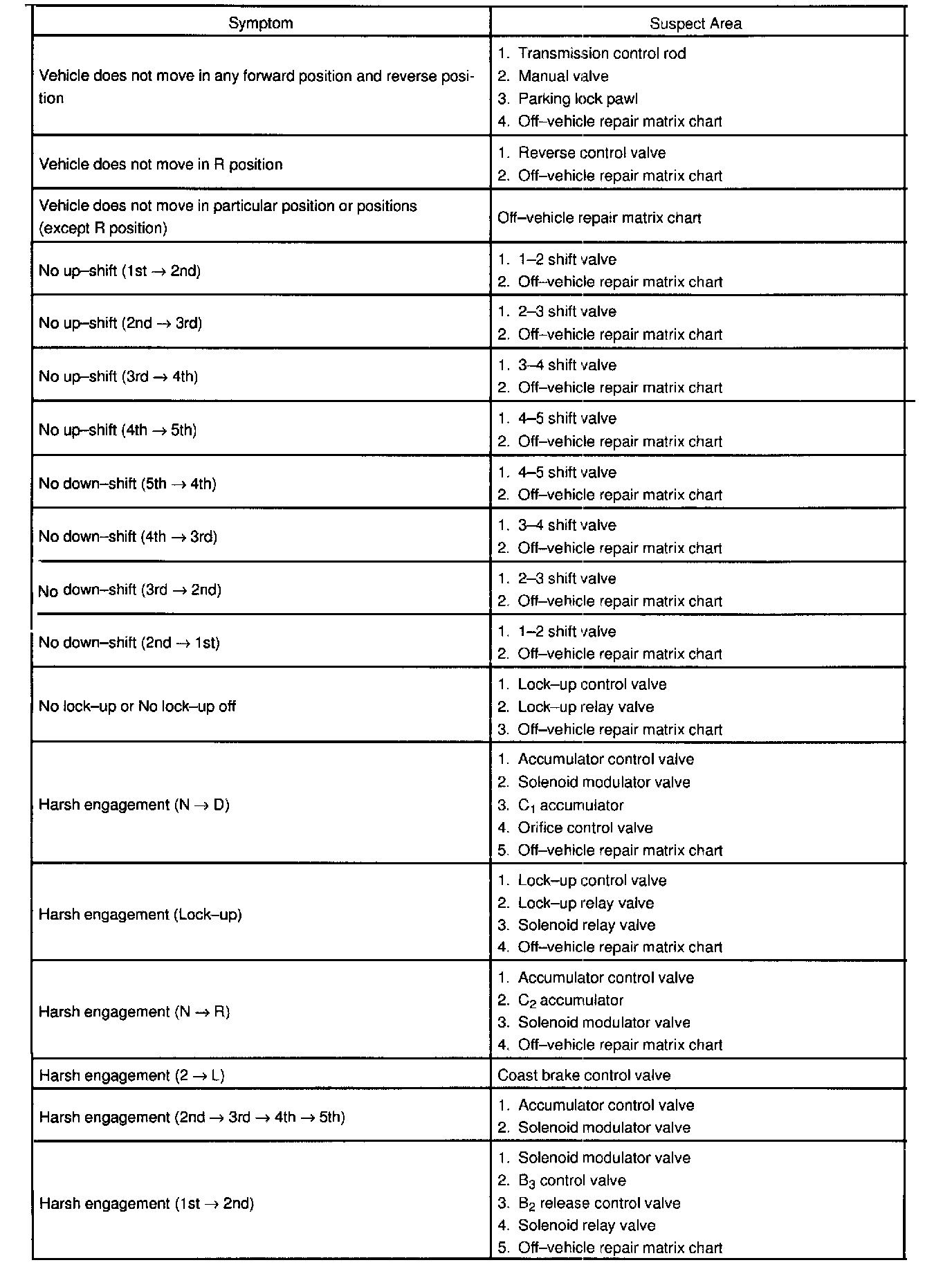

2. CHART 2: ON-VEHICLE REPAIR

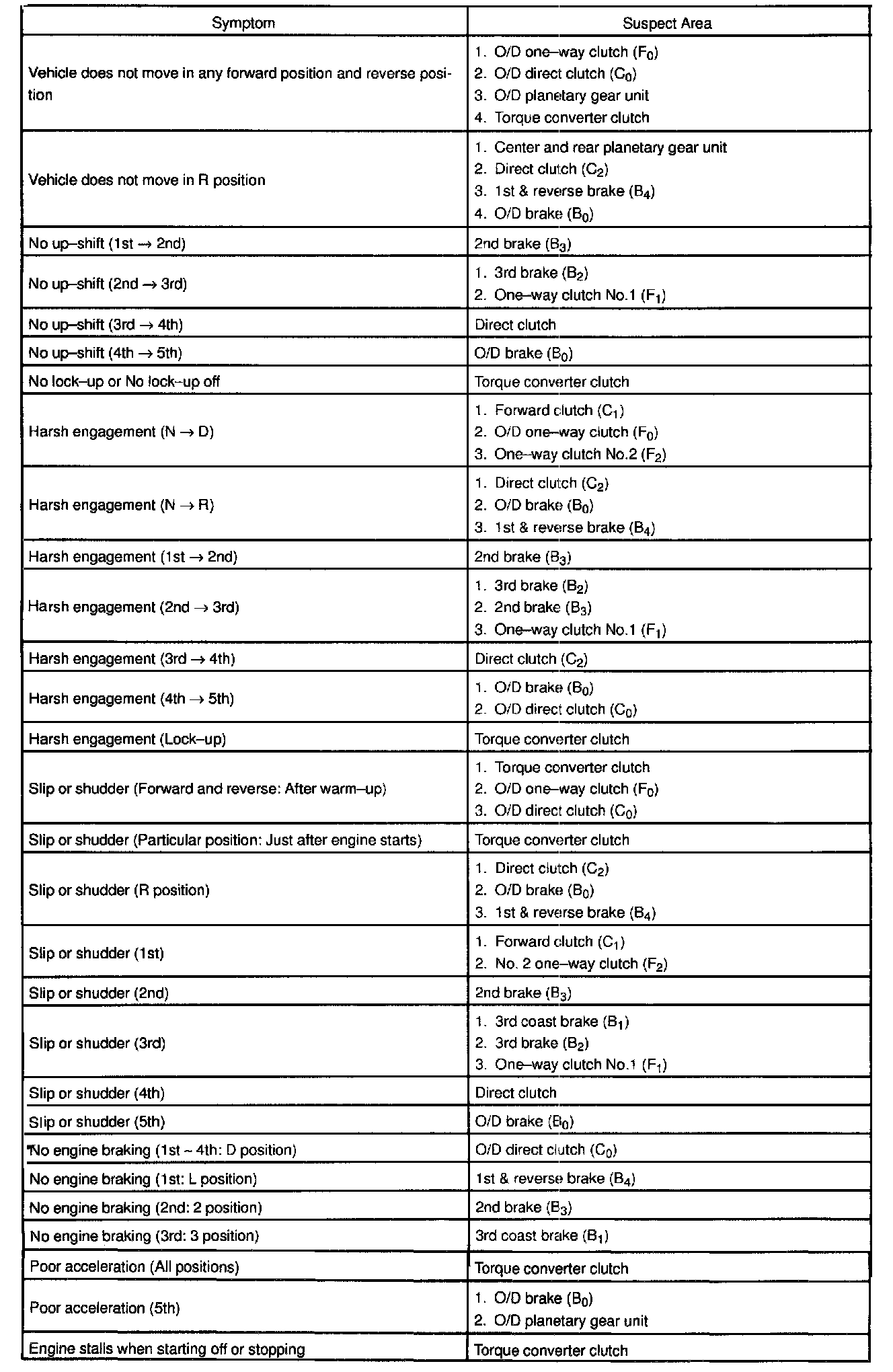

3. CHART 3: OFF-VEHICLE REPAIR
