Manual Switch Circuit

CIRCUIT DESCRIPTION

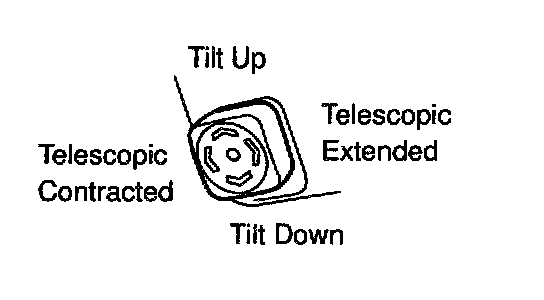

Operation of the switch sends different voltage signals to the ECU.

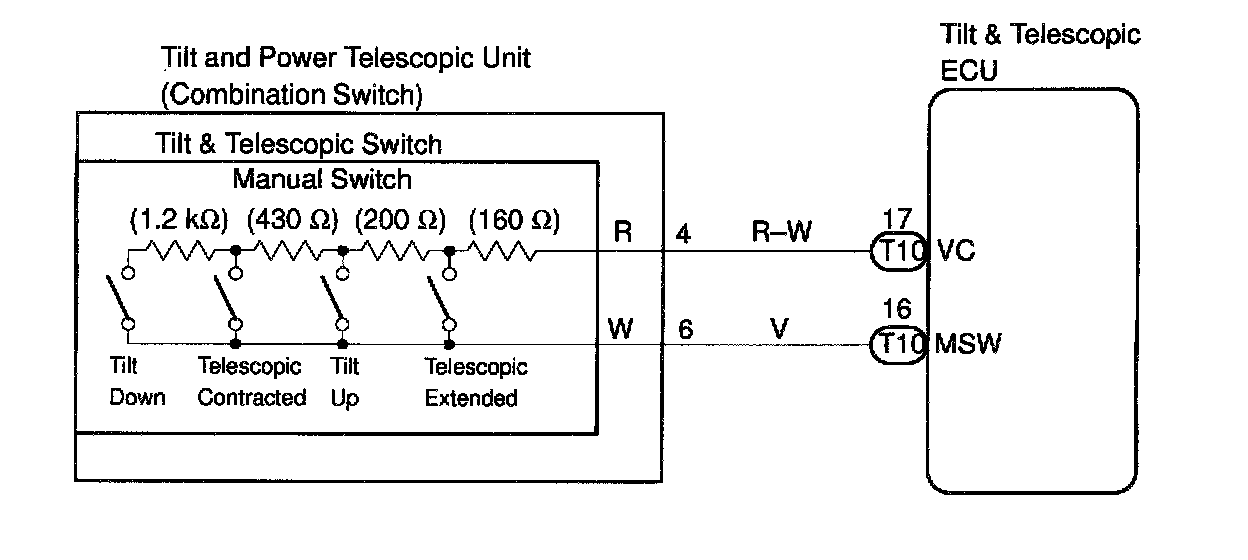

WIRING DIAGRAM

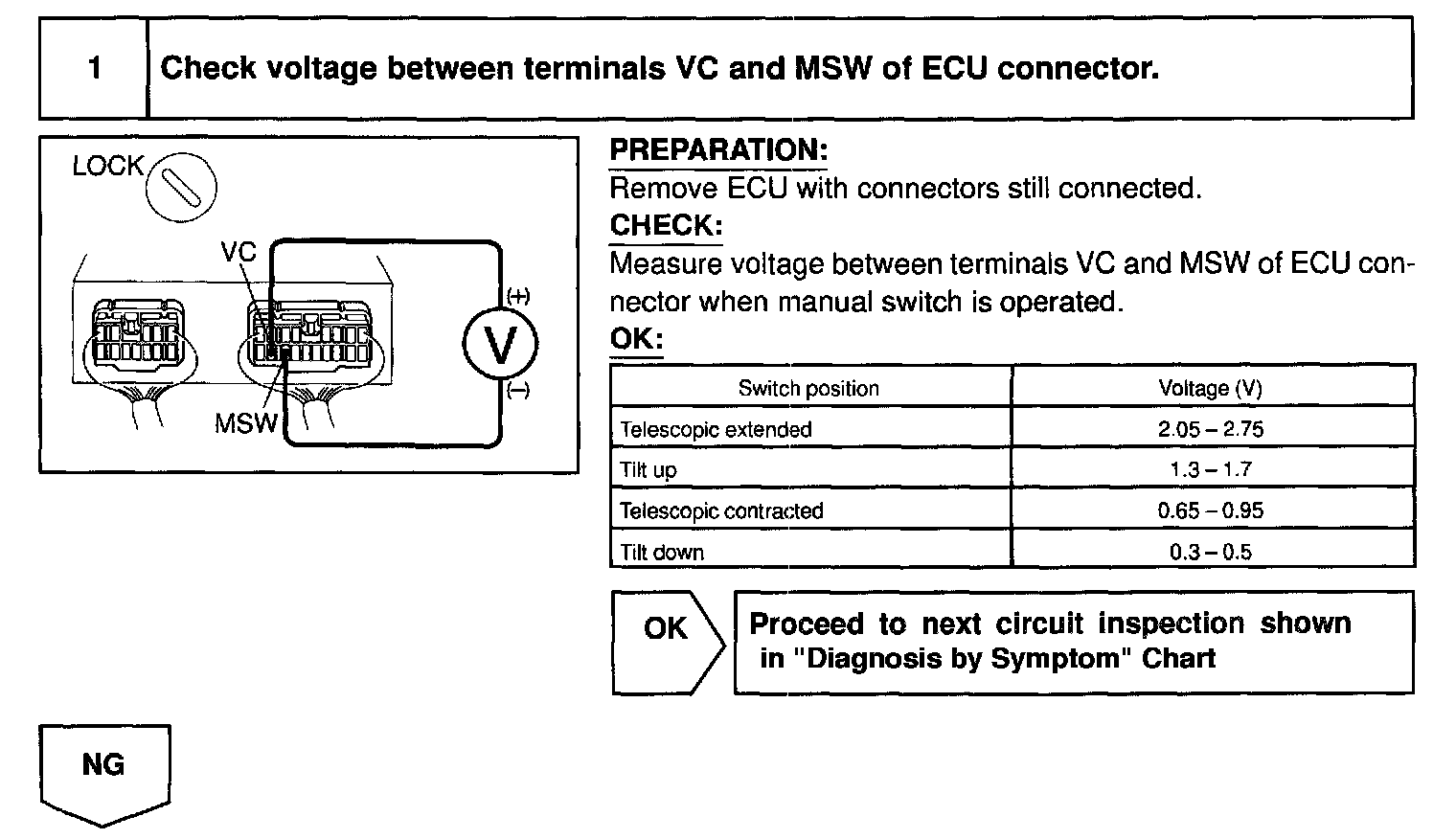

Step 1:

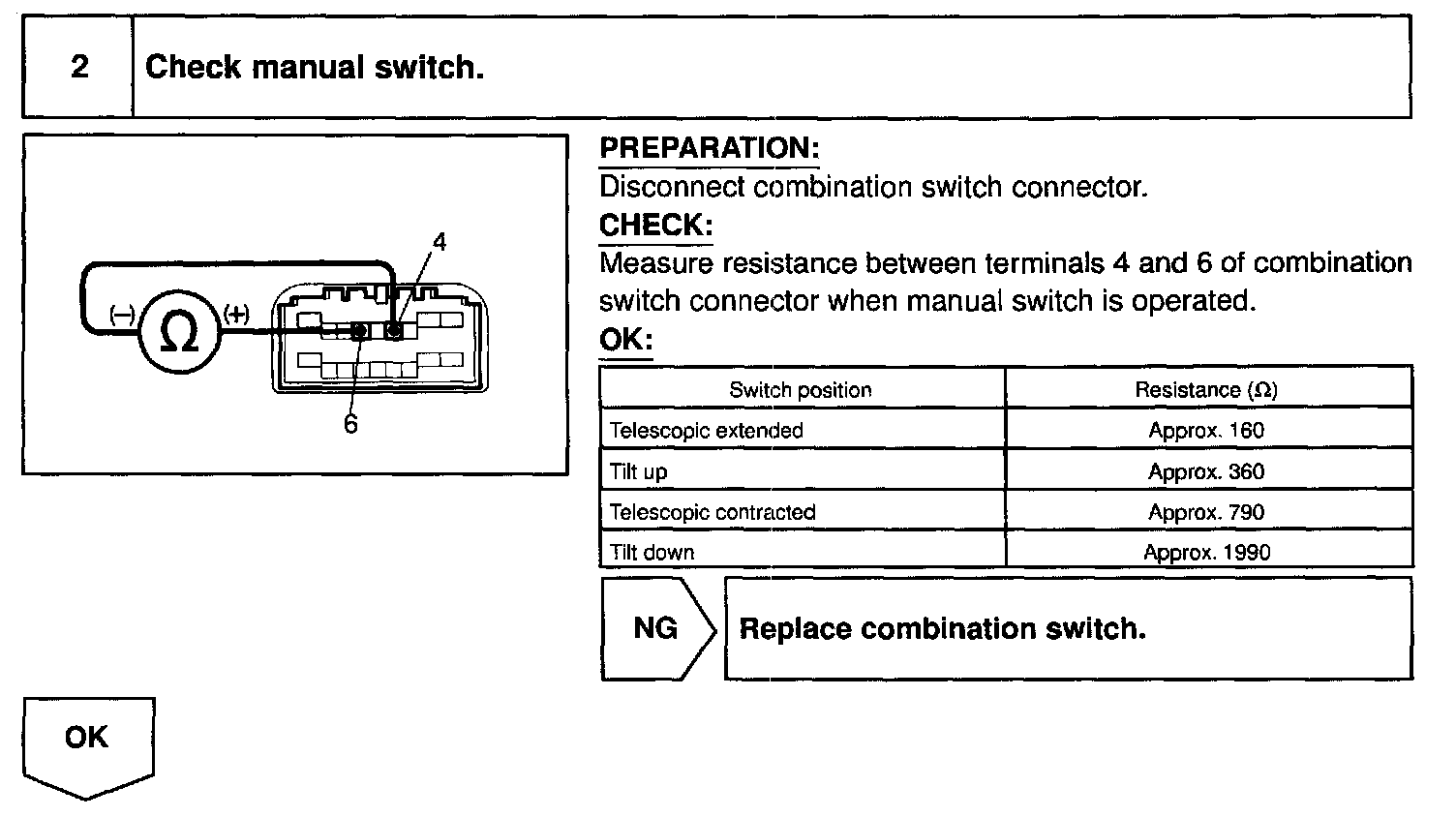

Step 2:

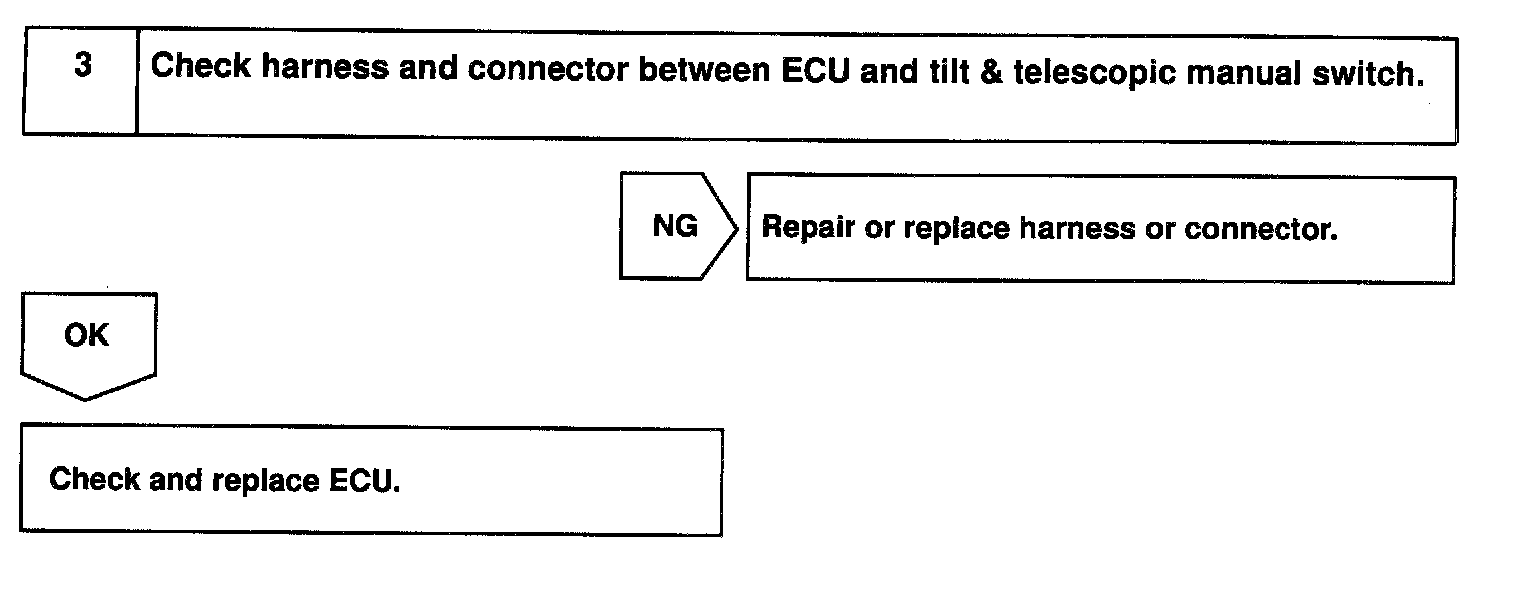

Step 3:




INSPECTION PROCEDURE
