Home >> Lexus >> 1999 >> SC 400 V8-4.0L (1UZ-FE) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Automatic Transmission/Transaxle >> System Specifications >> A/T Torque Data >> A340E 4-SPD A/T

A340E 4-SPD A/T

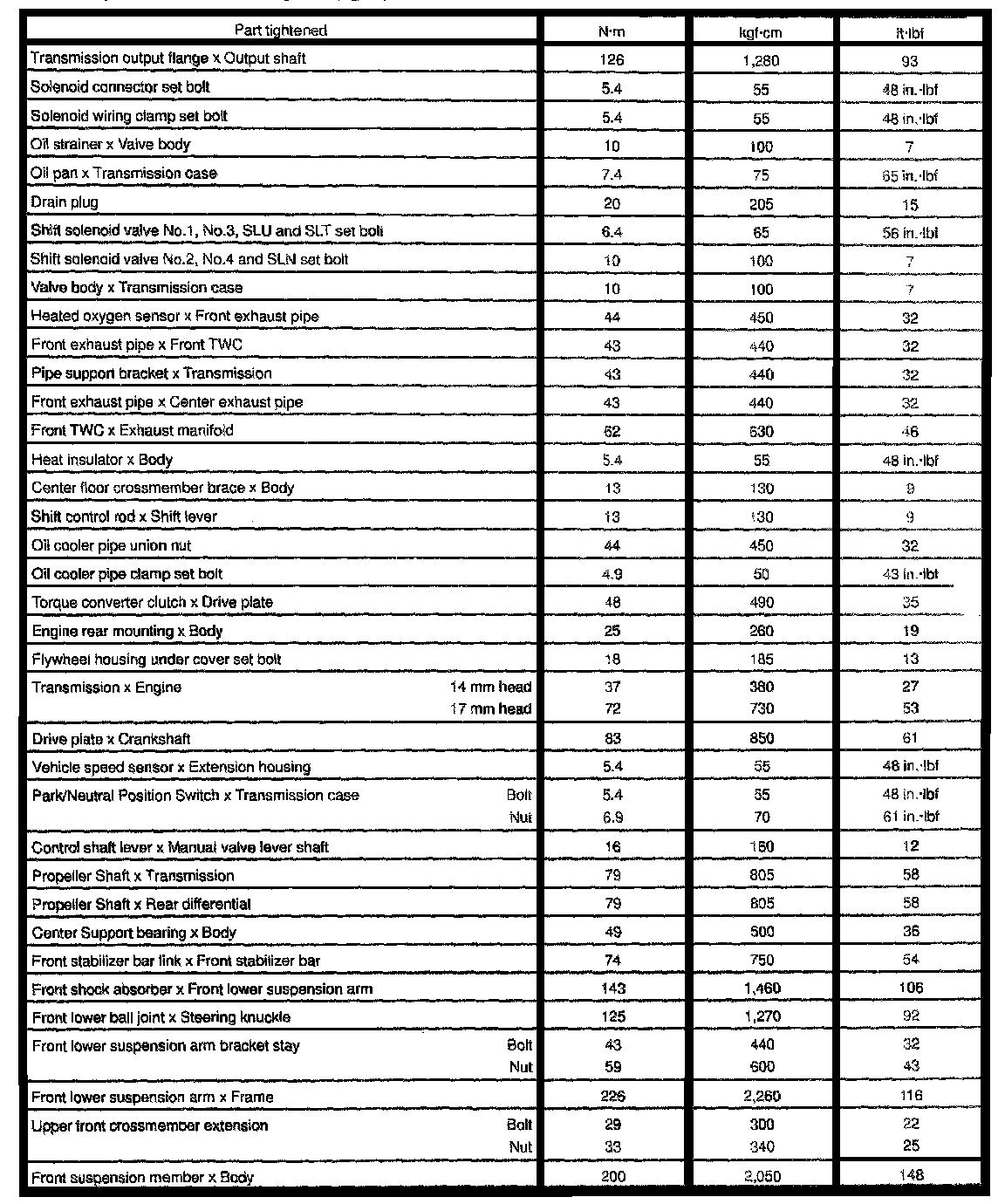

A650E 3-spd O/D A/T, Transmission Torque:
