Brake Switch (Cruise Control): Testing and Inspection
CIRCUIT DESCRIPTIONWhen the brake pedal is depressed, the stop light switch sends a signal to the ECM. When the ECM receives this signal, it cancels the cruise control.
A fail-safe function is provided so that the cancel functions normally, even if there is a malfunction in the stop light signal circuit.
The cancel conditions are: Battery positive voltage at terminal STP-
When the brake is on, battery positive voltage normally applies through the STOP fuse and stop light switch to terminal STP- of the ECM, and the ECM turns the cruise control off.
If the harness connected to terminal STP- has an open circuit, terminal STP- will have battery positive voltage and the cruise control will be turned off.

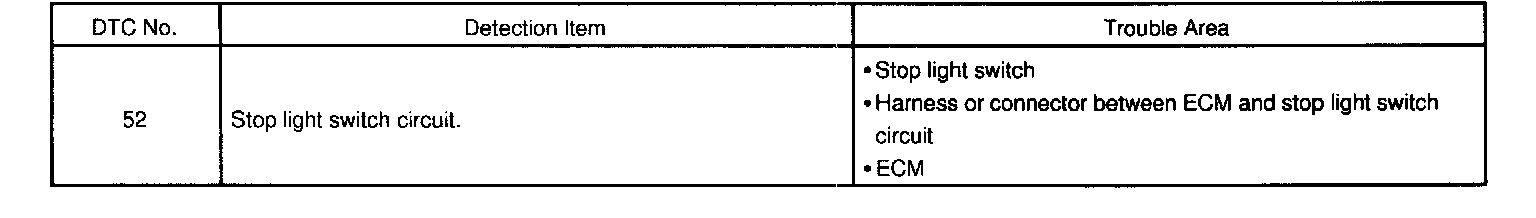

DETECTING CONDITIONS
WIRING DIAGRAM

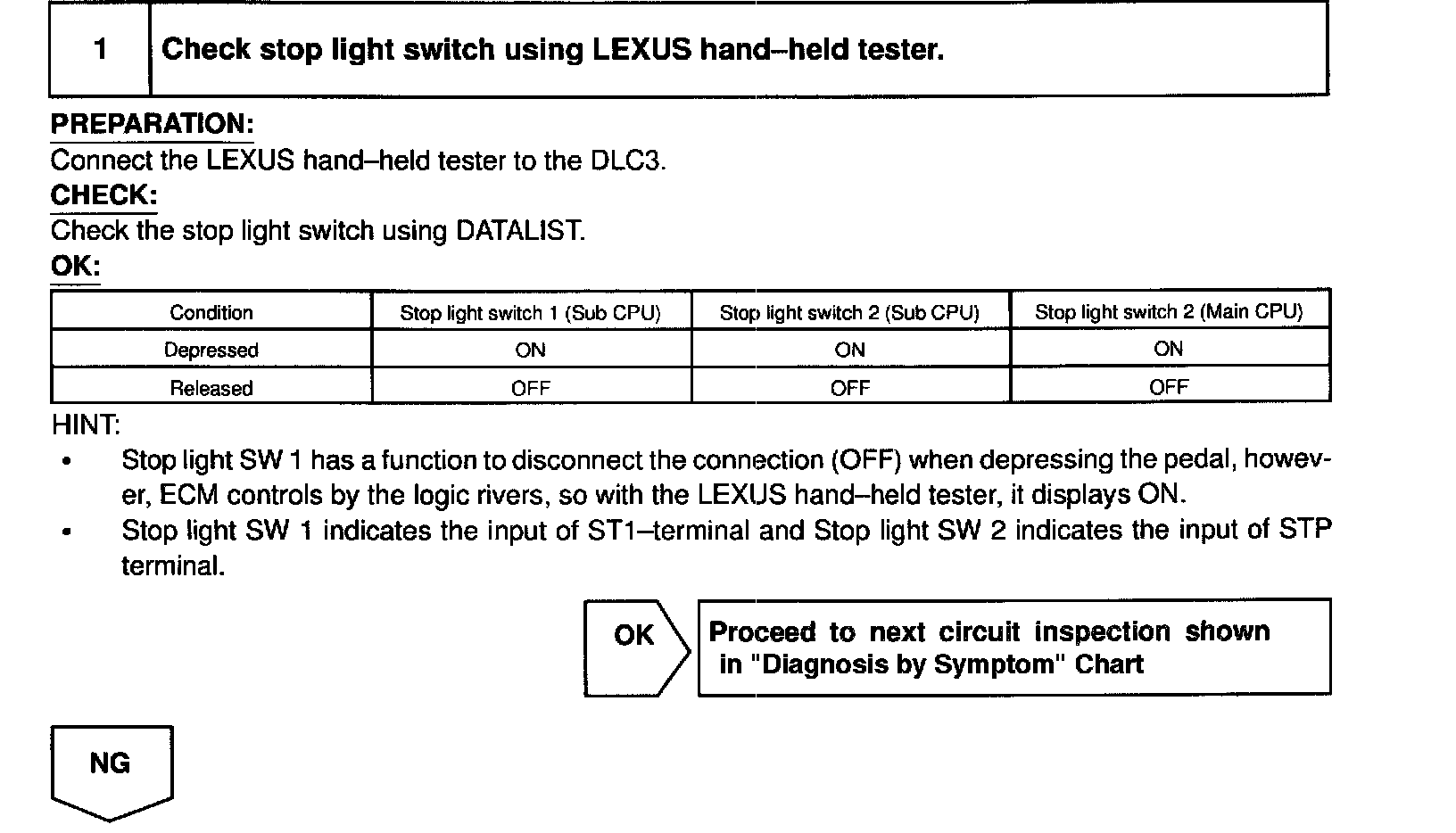

Step 1:

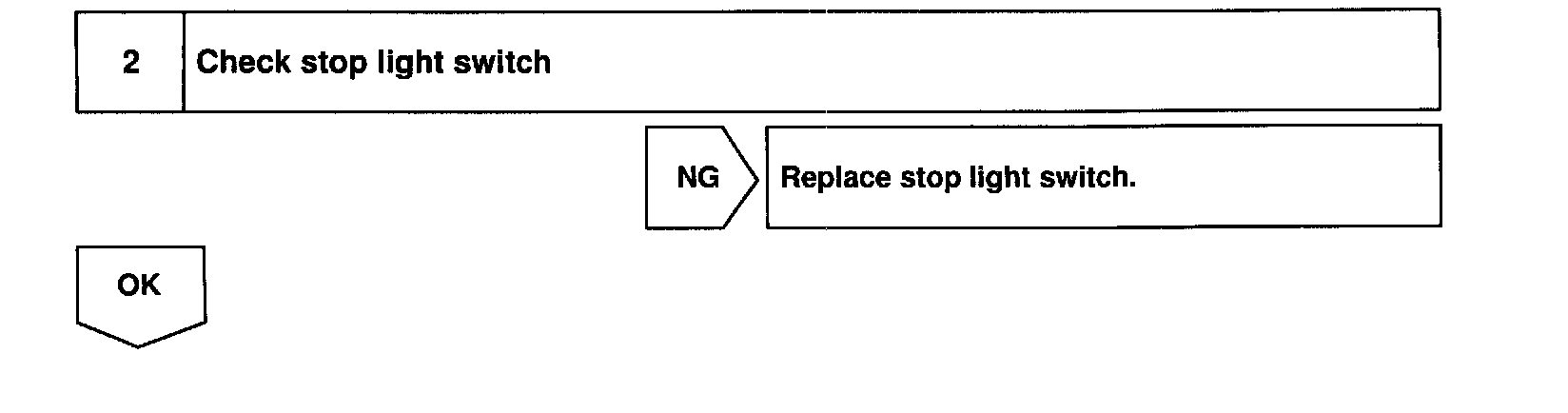

Step 2:

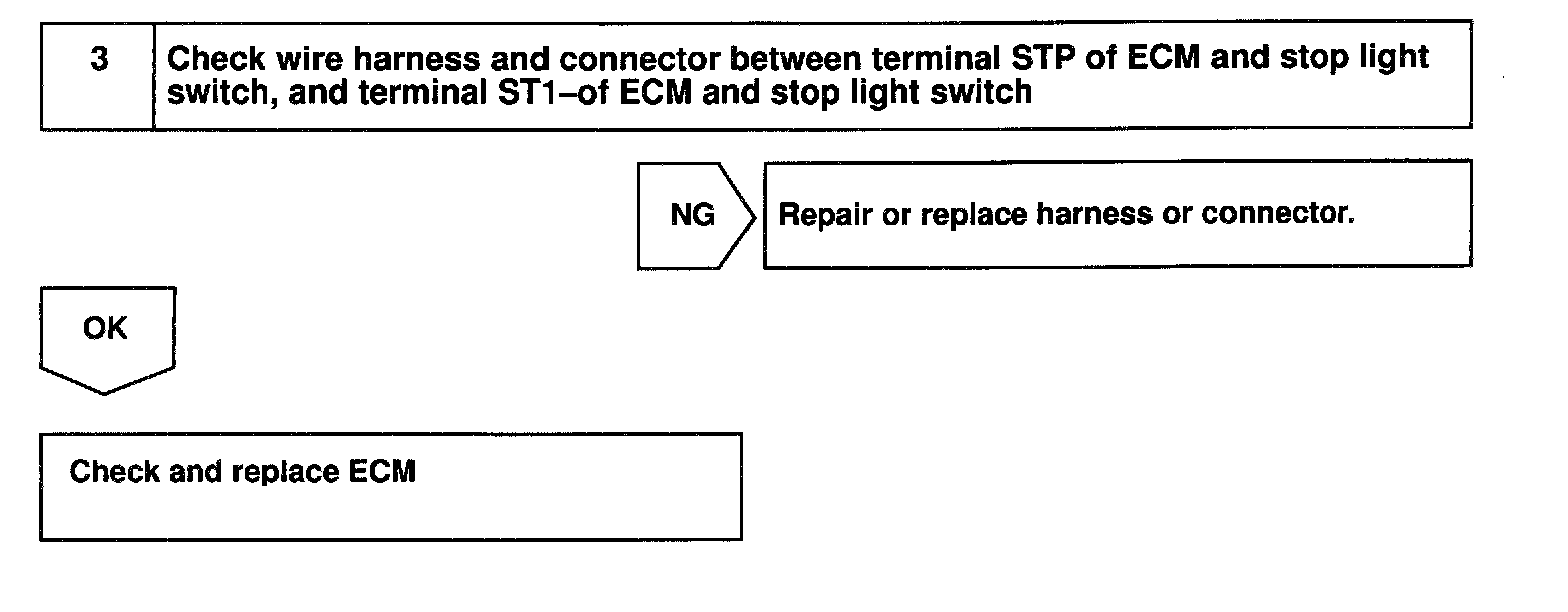

Step 3:
INSPECTION PROCEDURE
HINT: In case of using the LEXUS hand-held tester, start the inspection from step 1 and in case of not using the LEXUS hand-held tester. start from step 2.
