Seat Belt Reminder Lamp: Testing and Inspection

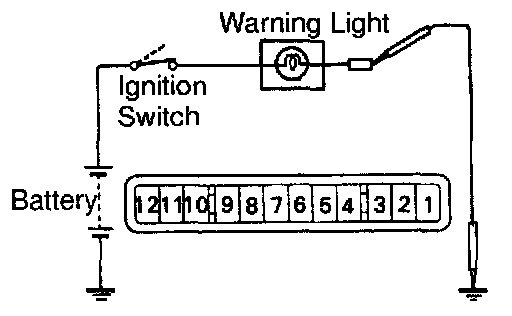

INSPECT SEAT BELT WARNING LIGHT
a. Disconnect the connector from the seat belt warning relay.
b. Ground terminal A9 on the wire harness side connector
c. Turn the ignition switch ON, check that the warning light lights up.
If the warning light does not light up, inspect the bulb or wire harness.

Seat belt warning system:

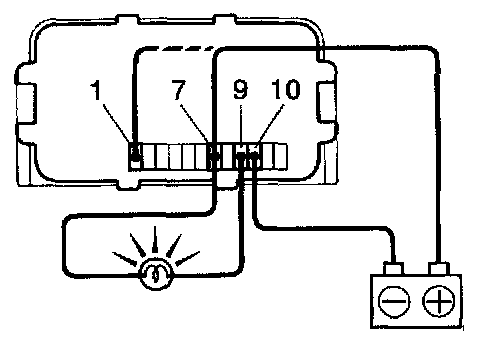

INSPECT INTEGRATION RELAY OPERATION




a. Connect the positive (+) lead from the battery to terminals A1 and A7.
b. Connect the terminal A7 to terminal A9 through the 3.4 W test bulb.
c. Connect the negative (-) lead from the battery to terminals A10




d. Check that the bulb lights and the chime sounds for 4 - 8 seconds.
e. Return to step (a), and operate the chime again.

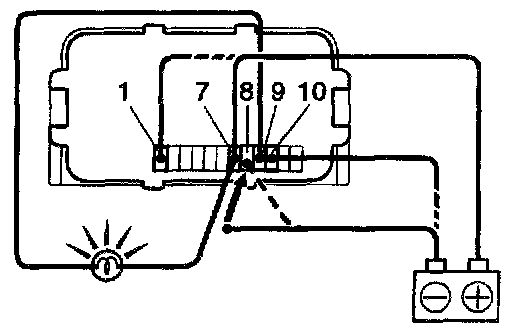

f. Connect the negative (-) lead from the battery to terminal A8.
g. Check that the chime stops sounding.

HINT: Check the chime within a period of 4 to 8 seconds.
