Airbag Deployment When Scrapping Vehicle

HINT: When scrapping vehicles equipped with an SRS or disposing of a front passenger airbag assembly, always first deploy the airbag in accordance with the procedure described. If any abnormality occurs with the airbag deployment, contact the SERVICE DEPT. of the TOYOTA MOTOR SALES, U.S.A., INC.. When disposing of a front passenger airbag assembly with an airbag deployed in a collision, follow the same procedure given in Deployment When Disposing of Front Passenger Airbag Only.







CAUTION:
Never dispose of front passenger airbag assembly which has an undeployed airbag.
The airbag produces a sizeable exploding sound when it deploys, so perform the operation out of doors and where it will not create a nuisance to nearby residents.

AIRBAG DEPLOYMENT WHEN SCRAPPING VEHICLE

HINT: Have a battery ready as the power source to deploy the airbag.

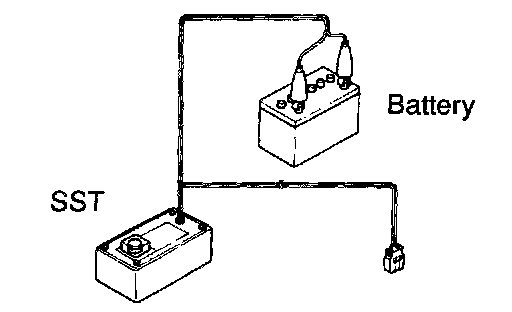

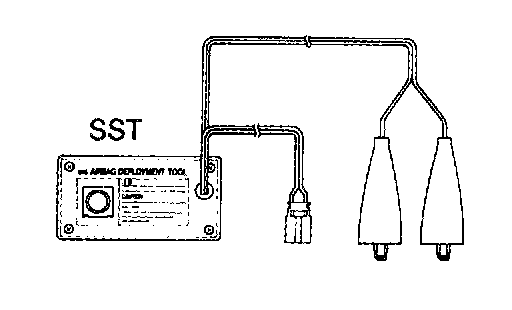

A. Check functioning of SST.
SST 09082-00700, 09082-00760

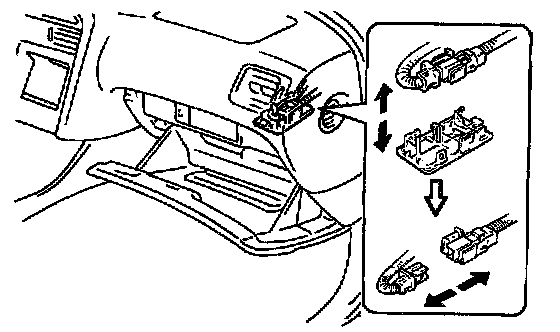

B. Disconnect the airbag connector.
1. Using a screwdriver, remove the glove compartment door finish plate.

HINT: Tape the screwdriver tip before use.

2. Remove the airbag connector from the plate.
3. Disconnect the airbag connector.

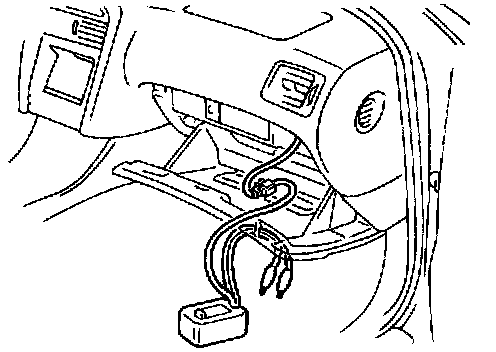

C. Install the SST.






1. Connect the 2 SST each other, then connect them to the airbag connector of the spiral cable.
SST 09082-00700, 09082-00760

Install SST:

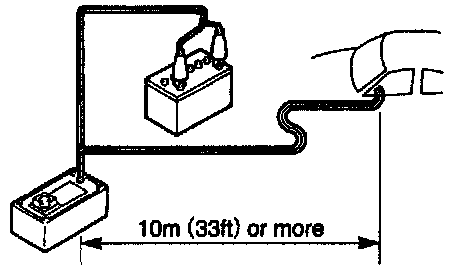

2. Move the SST at least 10 m (33 ft) away from the front of the vehicle.
3. Close all the doors and windows of the vehicle.

NOTE: Take care not to damage the SST wire harness.

4. Connect the SST red clip to the battery positive (+) terminal and the black clip to the battery negative (-) terminal.

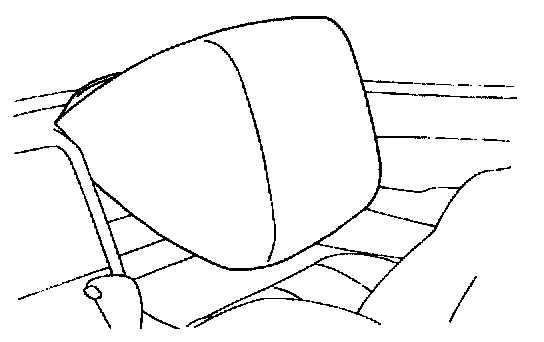

D. Deploy the airbag.
1. Check that no one is inside the vehicle or within 10 m (33 ft) area around the vehicle.
2. Press the SST activation switch and deploy the airbag.

HINT: The airbag deploys simultaneously as the LED of the SST activation switch lights up.

E. Dispose of front passenger airbag assembly.

CAUTION:
- The front passenger airbag assembly is very hot when the airbag is deployed, so leave it alone for at least 30 minutes after deployment.
- Use gloves and safety glasses when handling a front passenger airbag assembly with the deployed airbag.
- Do not apply water etc., to a front passenger airbag assembly with the deployed airbag.
- Always wash your hands with water after completing the operation.
When scrapping a vehicle deploy the airbag and scrap the vehicle with the front passenger airbag assembly still installed.
