Power Window Relay: Testing and Inspection

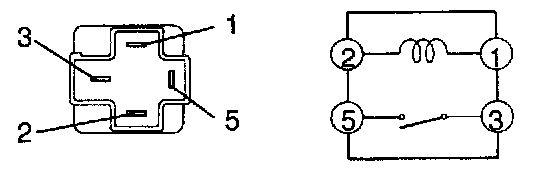

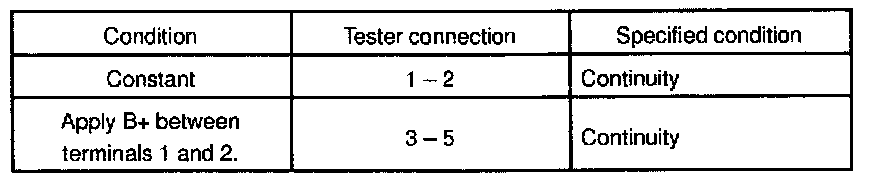

INSPECT POWER MAIN RELAY CONTINUITY
If continuity is not as specified, replace the relay.

INSPECT POWER MAIN RELAY CIRCUIT
