Heated Glass Element Relay: Testing and Inspection

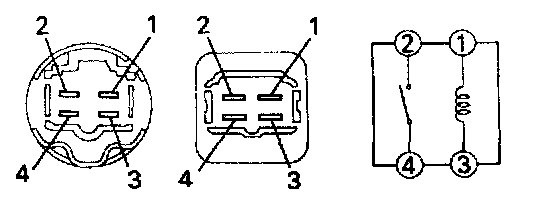

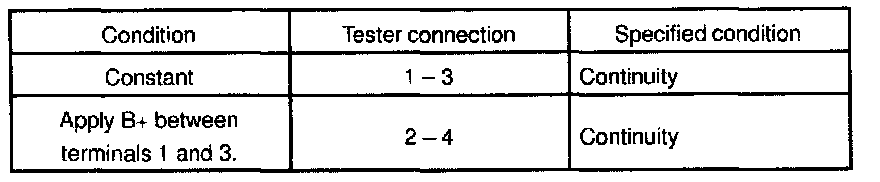

INSPECT DEFOGGER RELAY CONTINUITY
If continuity is not as specified, replace the relay.

INSPECT DEFOGGER RELAY CIRCUIT
