Horn Relay: Testing and Inspection

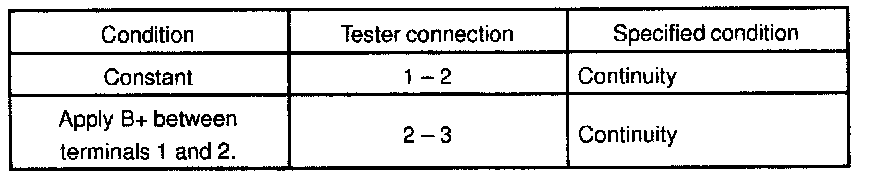

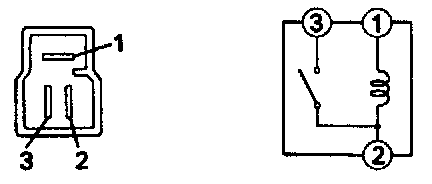

INSPECT HORN RELAY CONTINUITY
If continuity is not as specified, replace the relay.

INSPECT HORN RELAY CIRCUIT
