Courtesy Lamp Relay: Testing and Inspection

Illuminated Entry System

INSPECT INTEGRATION RELAY CIRCUIT

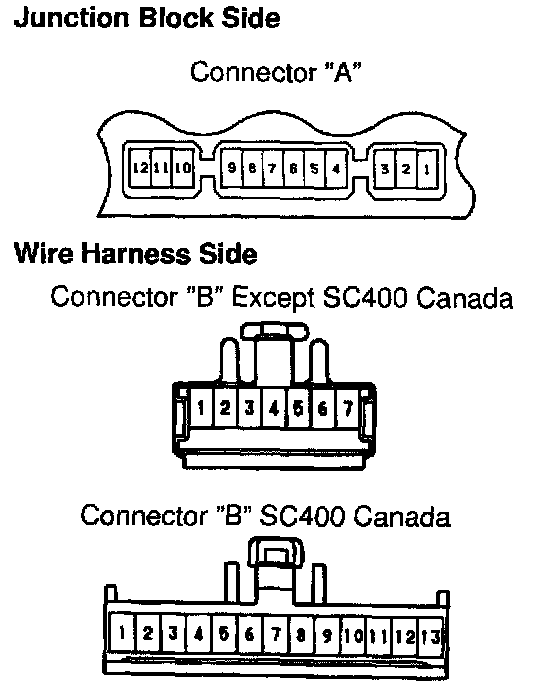

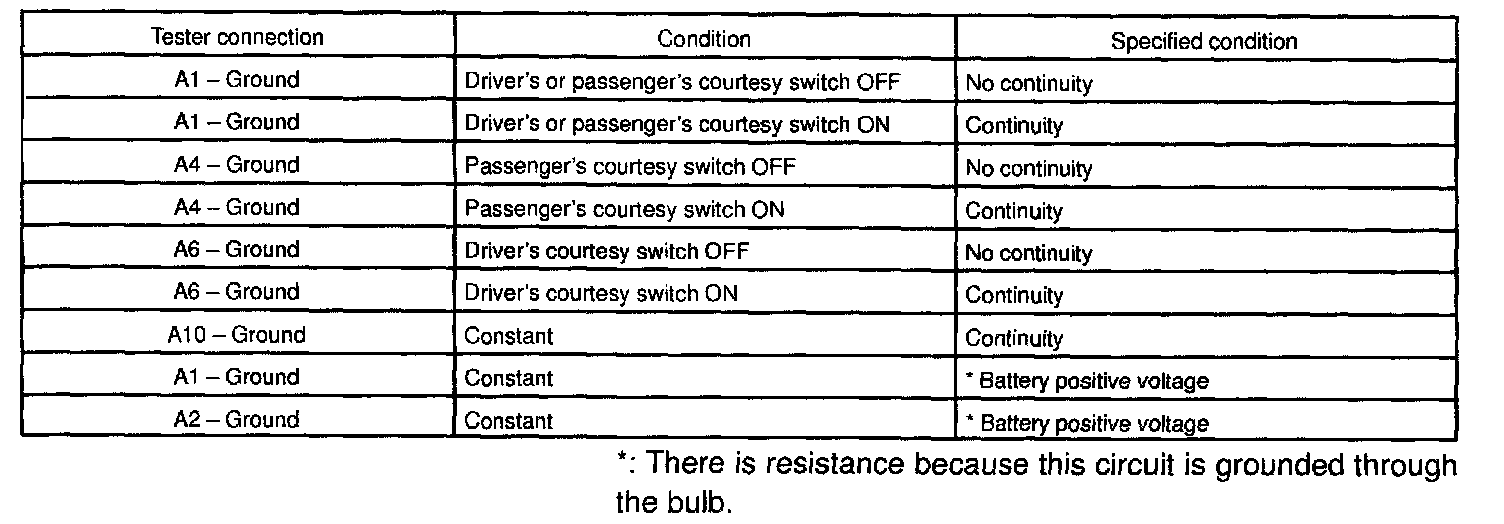

Remove the relay from the junction block and inspect the connector on the junction block side, as shown in the chart.
If the circuit is as specified, trying replacing the relay with a new one.
If the circuit is not as specified, inspect the circuits connected to other parts.
