Sunroof / Moonroof Relay: Testing and Inspection

INSPECT SLIDING ROOF CONTROL RELAY CIRCUIT

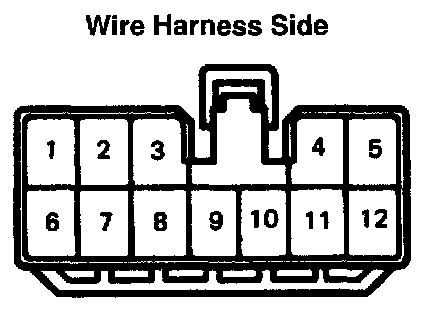

Disconnect the connector from the relay and inspect the connector on the wire harness side, as shown in the chart.
If circuit is as specified, replace the relay.

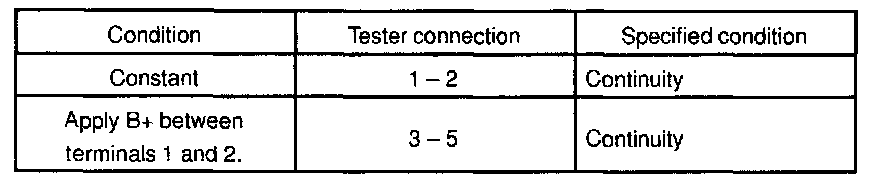

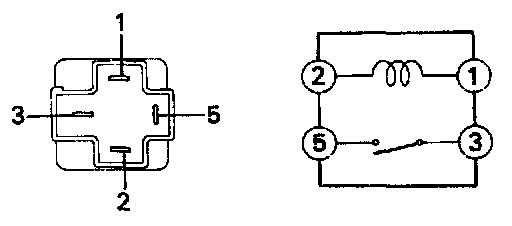

INSPECT POWER MAIN RELAY CONTINUITY
If continuity is not as specified, replace the relay.

INSPECT POWER MAIN RELAY CIRCUIT
