Seat Temperature Relay: Testing and Inspection

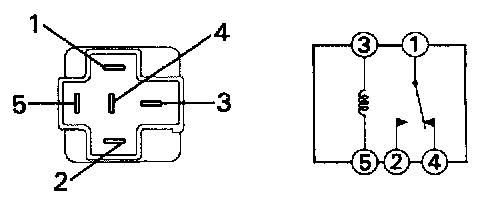

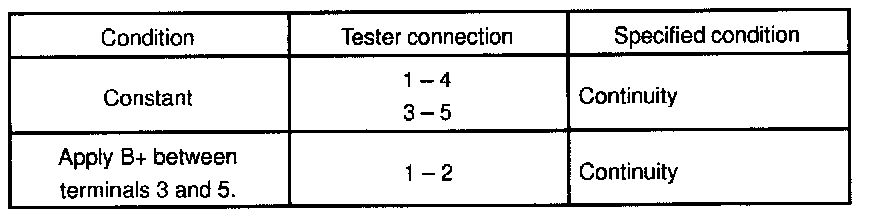

INSPECT IGNITION MAIN RELAY CONTINUITY
If continuity is not as specified, replace the relay.

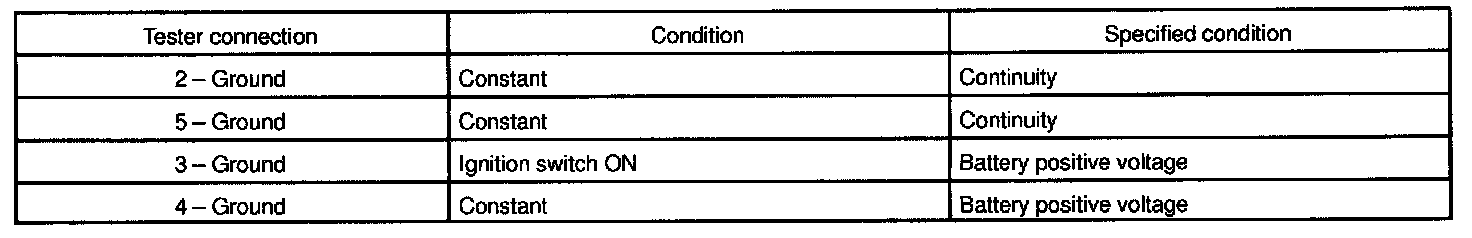

INSPECT IGNITION MAIN RELAY CIRCUIT

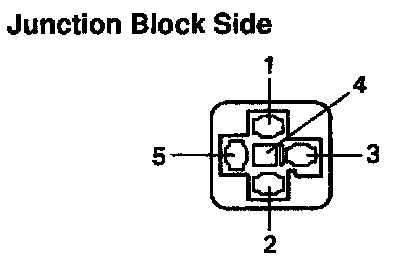

Remove the relay and inspect the connector on the junction block side.
If the circuit is not as specified, inspect the circuits connected to other parts.
